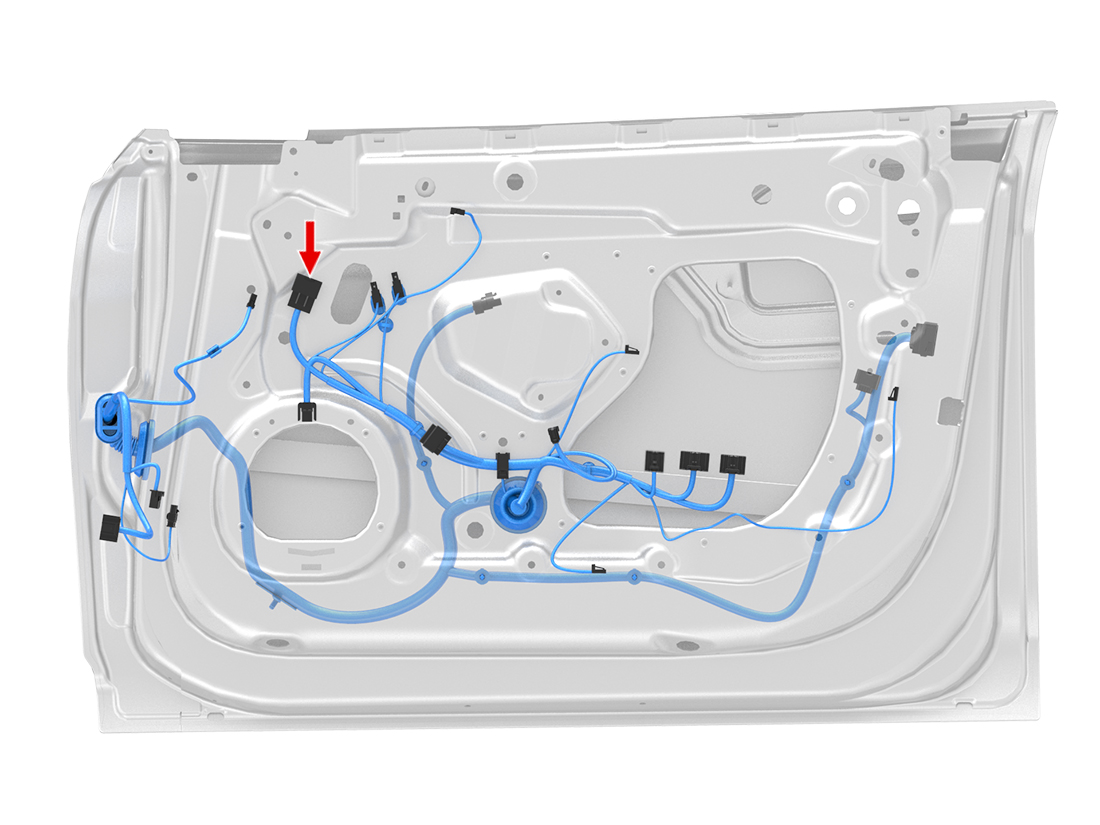

Location:
Connector Detail: Yazaki 7282-6568-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X332-4 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 2 | RD/YE | 0.35 | SN | X331-10 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 3 | BU | 0.35 | SN | X331-23 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 5 | RD/BK | 0.35 | SN | X332-8 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 6 | OG | 0.35 | SN | X944F-8 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 7 | RD/VT | 0.35 | SN | X332-5 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 8 | RD/GN | 0.35 | SN | X332-6 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 10 | BN | 0.35 | SN | X331-12 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 11 | VT | 0.35 | SN | X332-18 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 12 | WH/BU | 0.35 | SN | X331-11 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 15 | BK | 0.35 | SN | Z35-GDC09-R | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 16 | GN | 0.35 | SN | X944F-16 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 17 | YE/WH | 0.35 | SN | X332-19 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 18 | WH/BK | 0.35 | SN | X332-21 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 20 | YE | 0.35 | SN | X331-24 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X332-4 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 2 | RD/YE | 0.35 | SN | X331-10 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 3 | BU | 0.35 | SN | X331-23 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 5 | RD/BK | 0.35 | SN | X332-8 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 6 | OG | 0.35 | SN | X944F-8 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 7 | RD/VT | 0.35 | SN | X332-5 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 8 | RD/GN | 0.35 | SN | X332-6 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 10 | BN | 0.35 | SN | X331-12 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 11 | VT | 0.35 | SN | X332-18 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 12 | WH/BU | 0.35 | SN | X331-11 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 15 | BK | 0.35 | SN | Z35-GDC09-R | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 16 | GN | 0.35 | SN | X944F-16 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 17 | YE/WH | 0.35 | SN | X332-19 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 18 | WH/BK | 0.35 | SN | X332-21 | Yazaki 7114-4720-02 | | 1099551-00-B | |
| 20 | YE | 0.35 | SN | X331-24 | Yazaki 7114-4720-02 | | 1099551-00-B | |
