X347 - s-rhd-sop10

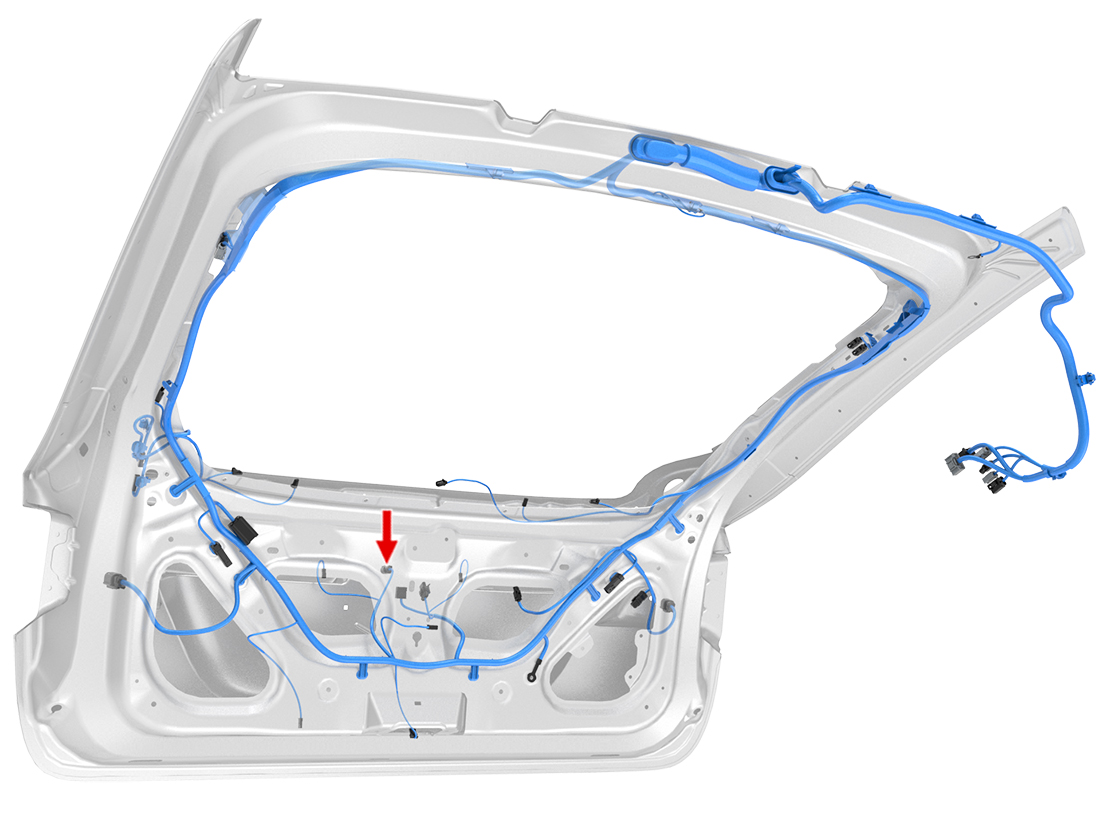

Location:
Connector Detail: AMP 1-967644-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X955F-8 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 2 | BK | 0.35 | SN | GND_LG-1 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X955F-8 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 2 | BK | 0.35 | SN | GND_LG-1 | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B |
