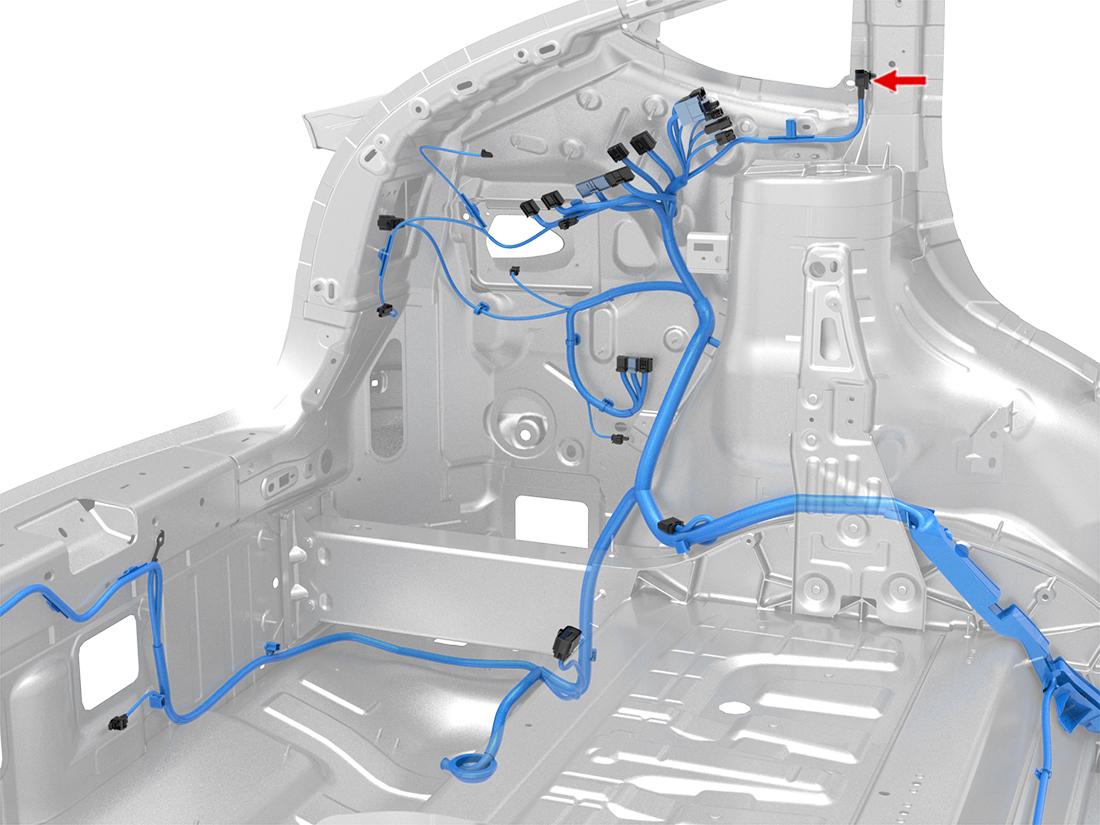

Location:
Connector Detail: SUMITOMO 6098-5686
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | X071-14 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 2 | GN | 0.35 | SN | X071-21 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 3 | GY | 0.35 | SN | X071-20 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 4 | VT/WH | 0.35 | SN | X706-13 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 4 | VT/WH | 0.35 | SN | X706A-13 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 5 | RD/WH | 1 | SN | X073-4 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 8 | BK/WH | 1 | SN | X073-3 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | X071-14 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 2 | GN | 0.35 | SN | X071-21 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 3 | GY | 0.35 | SN | X071-20 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 4 | VT/WH | 0.35 | SN | X706-13 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 4 | VT/WH | 0.35 | SN | X706A-13 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 5 | RD/WH | 1 | SN | X073-4 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 8 | BK/WH | 1 | SN | X073-3 | SUMITOMO 8230-4924 | | 1099536-00-A | |
