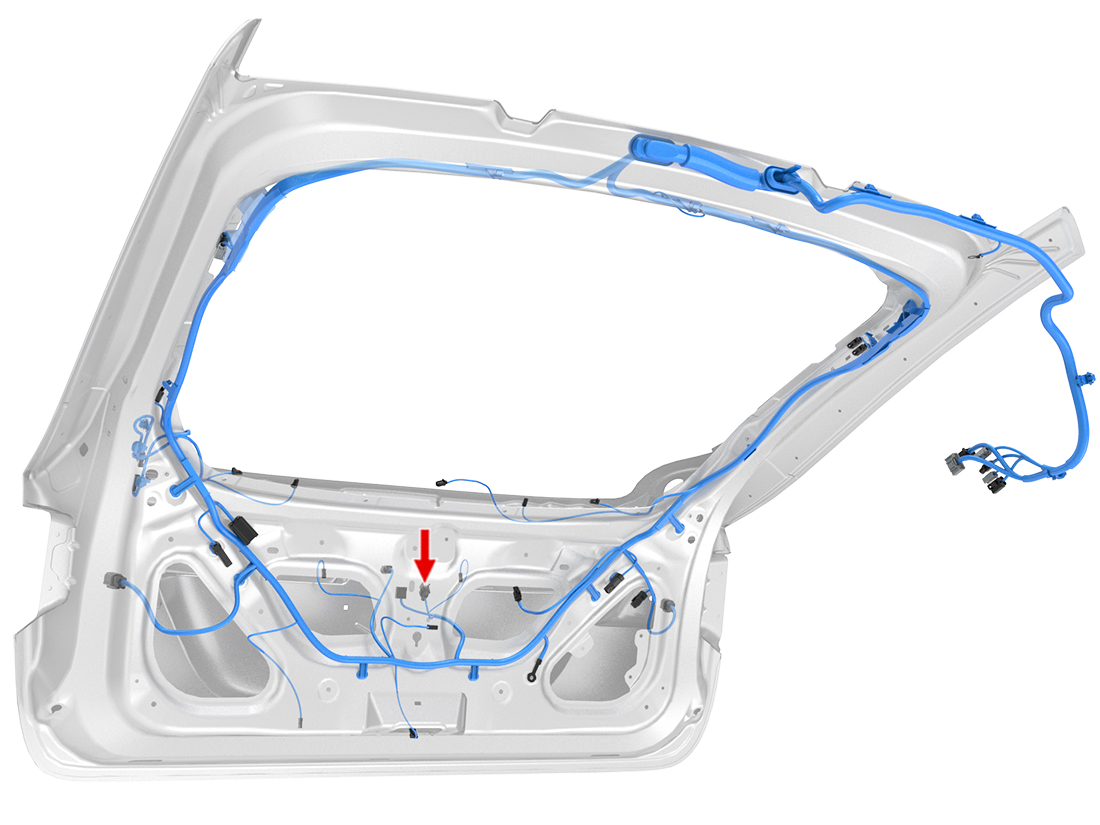

Location:
Connector Detail: AMP 282087-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X954F-6 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | BU | 0.35 | SN | X954F-15 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 3 | VT/WH | 0.35 | SN | Z122-PLG26-R | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X954F-6 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | BU | 0.35 | SN | X954F-15 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 3 | VT/WH | 0.35 | SN | Z122-PLG26-R | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
