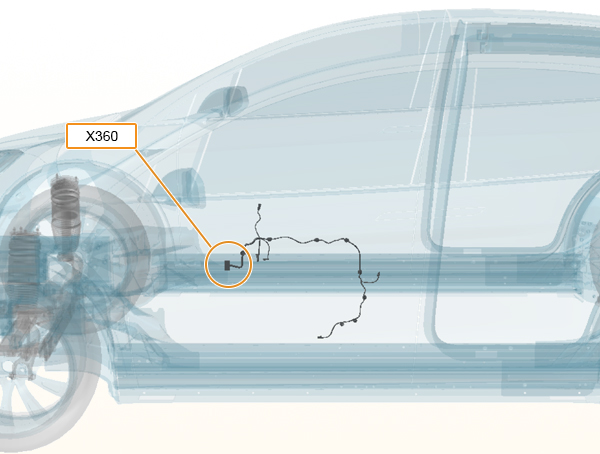

Location:
Connector Detail: Sumitomo 6098-4756
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | X372-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | RD | 0.35 | SN | X371-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.35 | SN | X375-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK | 0.35 | SN | X375-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GY | 0.35 | SN | X372-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN | 0.35 | SN | X366-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BK | 0.35 | SN | X371-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | GN | 0.35 | SN | X365-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | WH | 0.35 | SN | X365-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | WH | 0.35 | SN | X369-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD | 0.35 | SN | X365-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X372-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GY | 0.35 | SN | X369-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | WH | 0.35 | SN | X366-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X369-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BU | 0.35 | SN | X369-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 0.35 | SN | X372-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | RD | 0.35 | SN | X371-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.35 | SN | X375-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK | 0.35 | SN | X375-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GY | 0.35 | SN | X372-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN | 0.35 | SN | X366-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BK | 0.35 | SN | X371-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | GN | 0.35 | SN | X365-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | WH | 0.35 | SN | X365-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | WH | 0.35 | SN | X369-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD | 0.35 | SN | X365-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X372-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GY | 0.35 | SN | X369-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | WH | 0.35 | SN | X366-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X369-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BU | 0.35 | SN | X369-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
