X361 - s-rhd-sop10

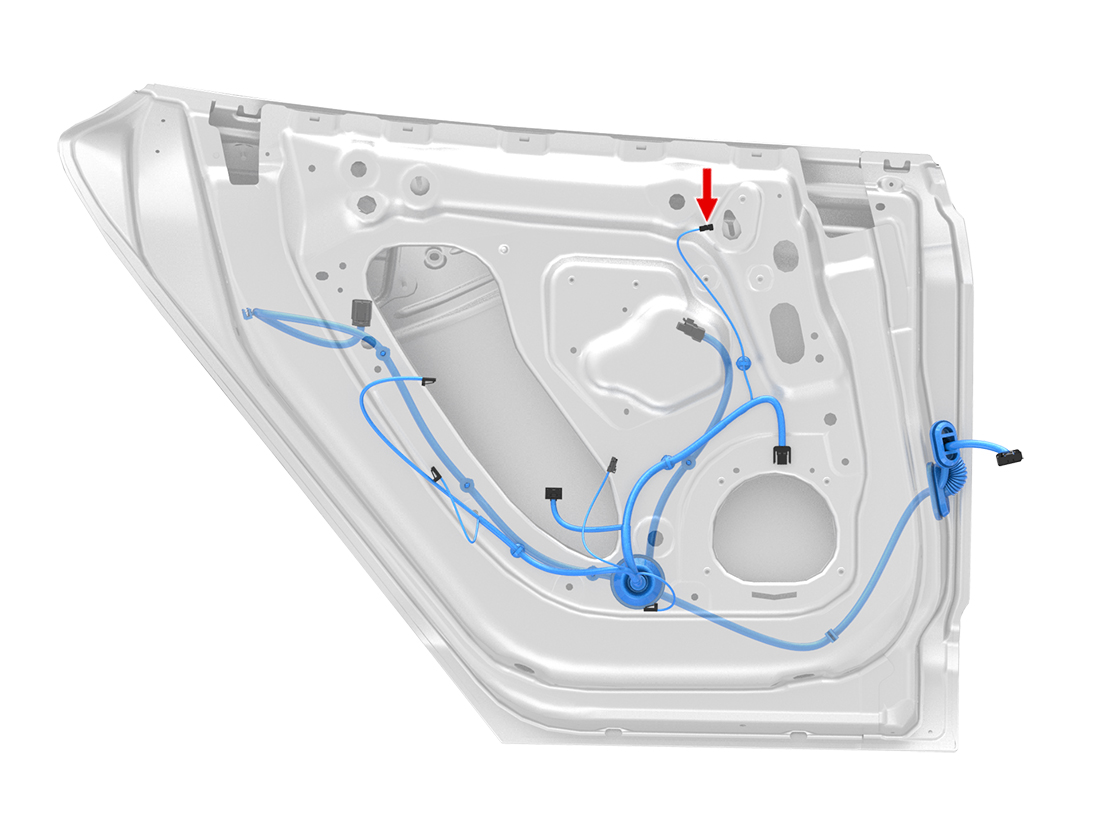

Location:

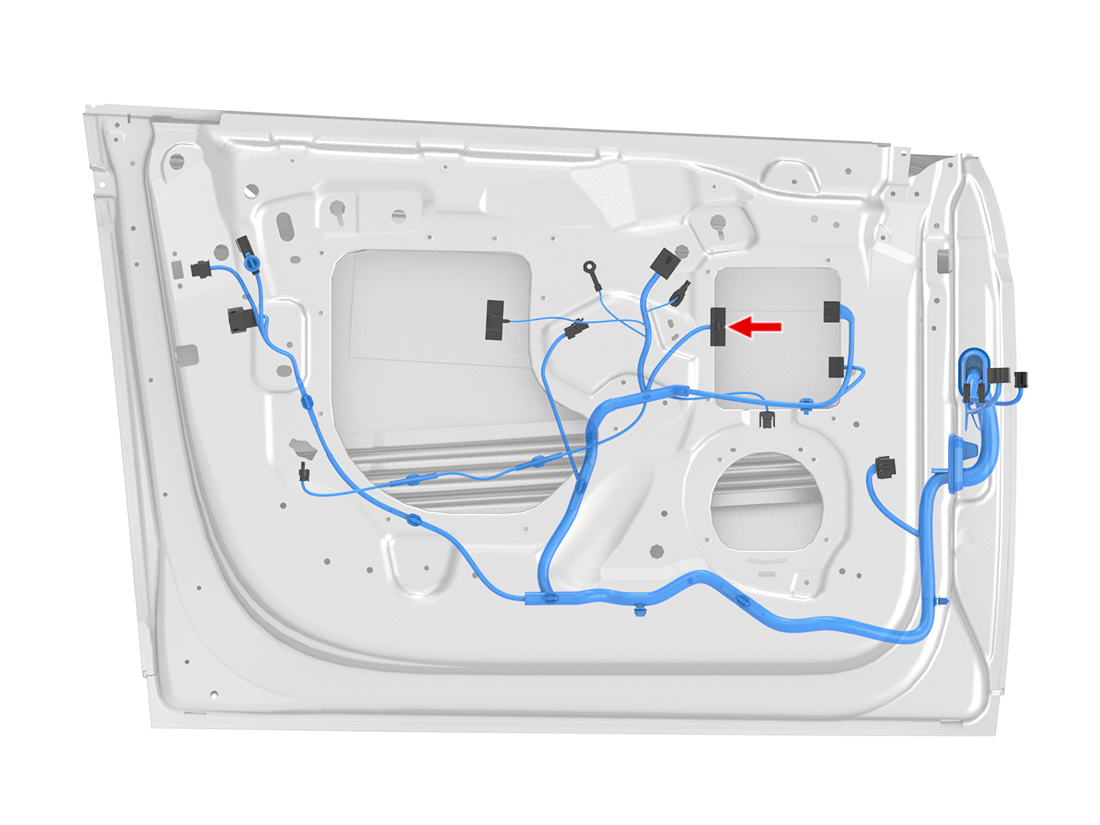

Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4831
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.35 | SN | X945F-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X373-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | BU/WH | 0.35 | SN | X377-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BU | 0.35 | SN | X377-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT | 0.35 | SN | X374-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X374-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X374-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X374-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X368-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | BU/WH | 0.35 | SN | X385-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BK | 0.35 | SN | X920F-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BK | 0.35 | SN | X920F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.5 | SN | X373-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.5 | SN | X380-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | GN | 0.5 | SN | X368-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BN | 0.5 | SN | X378-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | RD/WH | 0.5 | SN | X378-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | GY | 0.35 | SN | X374-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | BK/WH | 0.35 | SN | X374-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 26 | BU | 0.35 | SN | X374-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | GY | 0.5 | SN | X368-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 28 | WH | 0.5 | SN | X373-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X373-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN | 0.35 | SN | X920F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 31 | BN/WH | 0.35 | SN | X920F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 32 | GN | 0.35 | SN | X378-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 33 | VT/WH | 0.35 | SN | X376-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 34 | BU/WH | 0.35 | SN | X376-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN/WH | 0.35 | SN | X385-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 37 | GY/WH | 0.35 | SN | X386-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 38 | GY | 0.35 | SN | X920F-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 39 | WH | 0.35 | SN | X920F-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 40 | GY/WH | 0.35 | SN | X374-4 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X373-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | BU/WH | 0.35 | SN | X377-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BU | 0.35 | SN | X377-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT | 0.35 | SN | X374-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X374-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X374-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X374-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X368-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | BU/WH | 0.35 | SN | X385-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BK | 0.35 | SN | X920F-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BK | 0.35 | SN | X920F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.5 | SN | X373-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.5 | SN | X380-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | GN | 0.5 | SN | X368-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BN | 0.5 | SN | X378-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | RD/WH | 0.5 | SN | X378-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | GY | 0.35 | SN | X374-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | BK/WH | 0.35 | SN | X374-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 26 | BU | 0.35 | SN | X374-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | GY | 0.5 | SN | X368-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 28 | WH | 0.5 | SN | X373-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X373-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN | 0.35 | SN | X920F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 31 | BN/WH | 0.35 | SN | X920F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 32 | GN | 0.35 | SN | X378-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 33 | VT/WH | 0.35 | SN | X376-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 34 | BU/WH | 0.35 | SN | X376-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN/WH | 0.35 | SN | X385-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 37 | GY/WH | 0.35 | SN | X386-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 38 | GY | 0.35 | SN | X920F-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 39 | WH | 0.35 | SN | X920F-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 40 | GY/WH | 0.35 | SN | X374-4 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.35 | SN | X945F-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B |
