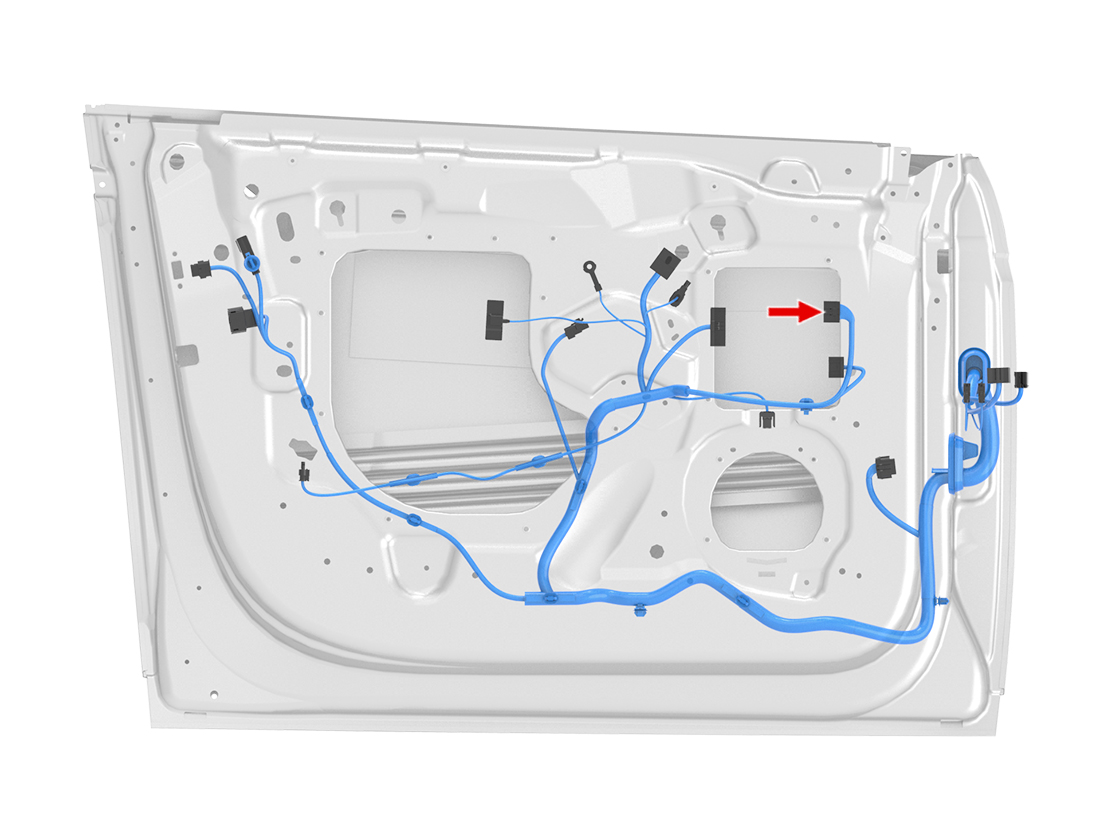

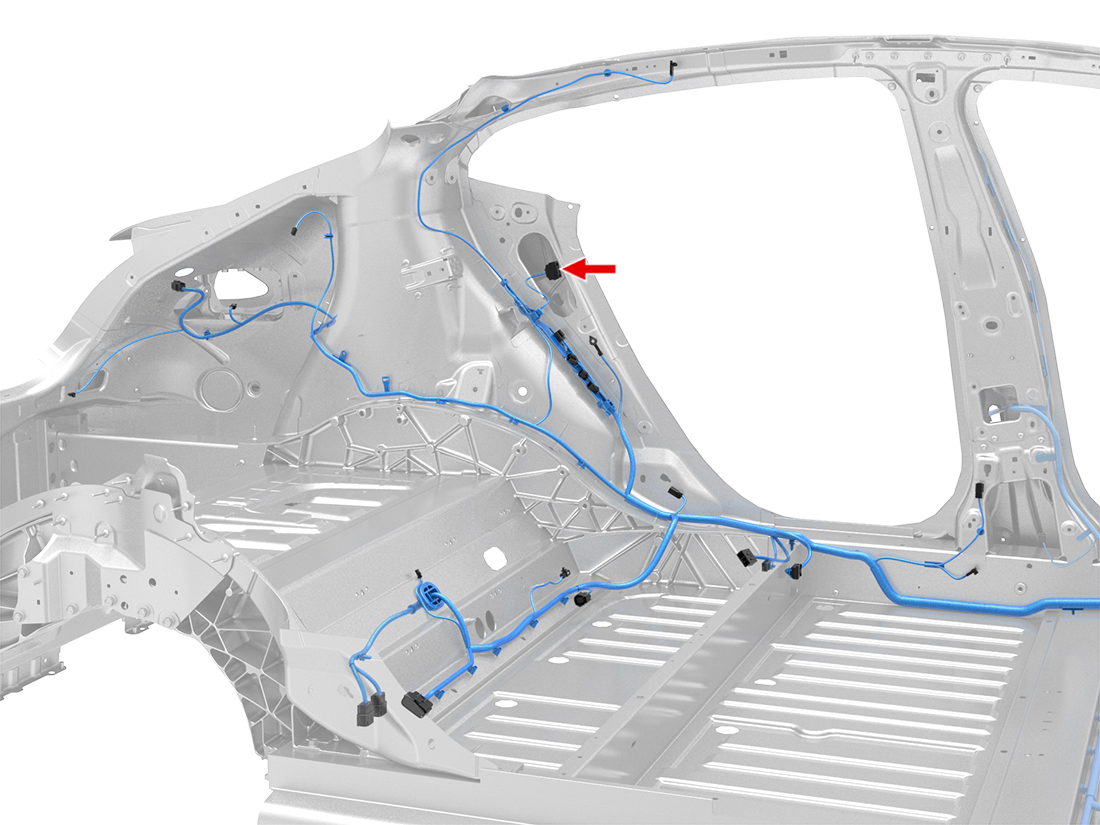

X362 - s-rhd-sop10
Location:
Location:
Connector Detail: AMP 6-1355688-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 6-1355688-5
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4667
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | OG | 0.35 | AU | X928M-3 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | BK/GY | 0.35 | AU | X928M-4 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | VT/WH | 0.35 | AU | Z88-SEC13-R | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | GY/WH | 0.35 | AU | X928M-7 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BK | 0.5 | AU | G660-1 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X921F-1 | Sumitomo 8100-0782 | 1116660-00-A | ||
| 2 | BN | 1.5 | SN | X385-1 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 4 | GN | 1.5 | SN | X385-5 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 5 | BK | 2 | SN | X921F-2 | Sumitomo 8100-0782 | 1116660-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X921F-1 | Sumitomo 8100-0782 | 1116660-00-A | ||
| 2 | BN | 1.5 | SN | X385-1 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 4 | GN | 1.5 | SN | X385-5 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 5 | BK | 2 | SN | X921F-2 | Sumitomo 8100-0782 | 1116660-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | OG | 0.35 | AU | X928M-3 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | BK/GY | 0.35 | AU | X928M-4 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | VT/WH | 0.35 | AU | Z88-SEC13-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | GY/WH | 0.35 | AU | X928M-7 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BK | 0.5 | AU | G660-1 | AMP 964274-3 | AMP 963530-1 | 1099472-00-B |
