X363 - s-rhd-sop10

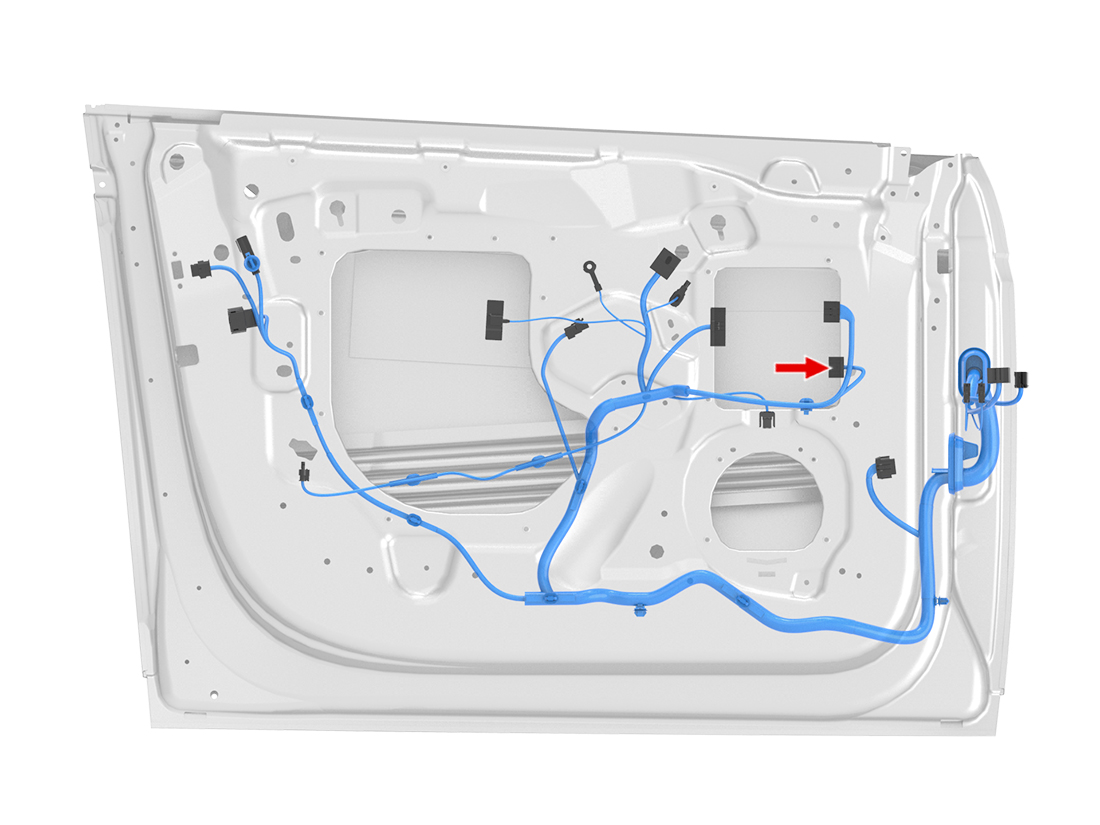

Location:

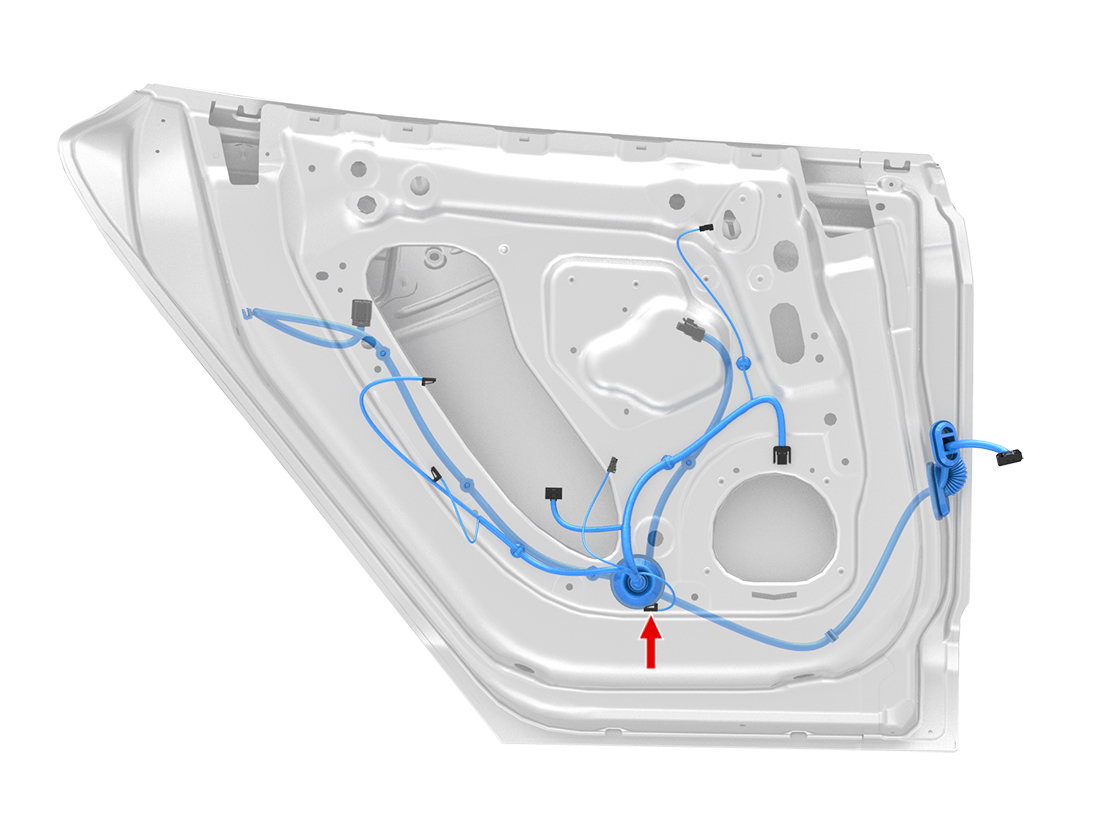

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-6203
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z71-DCL24-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X386-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | GY | 0.35 | SN | X386-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN/WH | 0.35 | SN | X374-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | BU/WH | 0.35 | SN | X374-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 5 | RD | 0.35 | SN | X374-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | VT | 0.35 | SN | X374-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | BK/WH | 0.75 | SN | GND_A_LH_2-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 9 | BU | 0.5 | SN | X385-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | RD | 0.5 | SN | X385-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | VT/WH | 0.35 | SN | Z72-DCL121-L | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | BN/WH | 0.35 | SN | X374-15 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | GY | 0.35 | SN | X385-6 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | RD/BU | 0.75 | SN | Z124-PRM06-L | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X386-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | GY | 0.35 | SN | X386-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN/WH | 0.35 | SN | X374-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | BU/WH | 0.35 | SN | X374-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 5 | RD | 0.35 | SN | X374-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | VT | 0.35 | SN | X374-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | BK/WH | 0.75 | SN | GND_A_LH_2-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 9 | BU | 0.5 | SN | X385-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | RD | 0.5 | SN | X385-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | VT/WH | 0.35 | SN | Z72-DCL121-L | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | BN/WH | 0.35 | SN | X374-15 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | GY | 0.35 | SN | X385-6 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | RD/BU | 0.75 | SN | Z124-PRM06-L | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z71-DCL24-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B |
