X365 - s-rhd-sop10

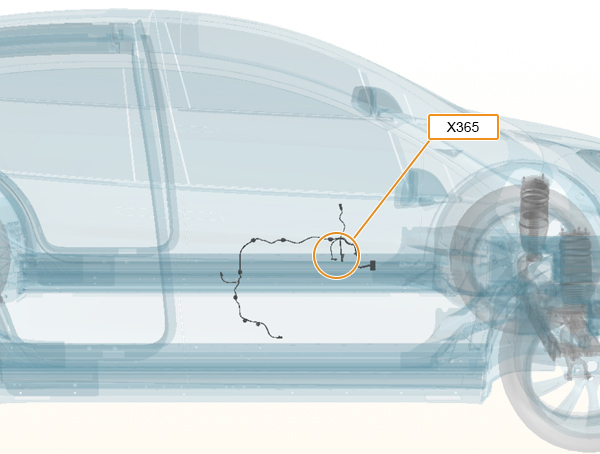

Location:

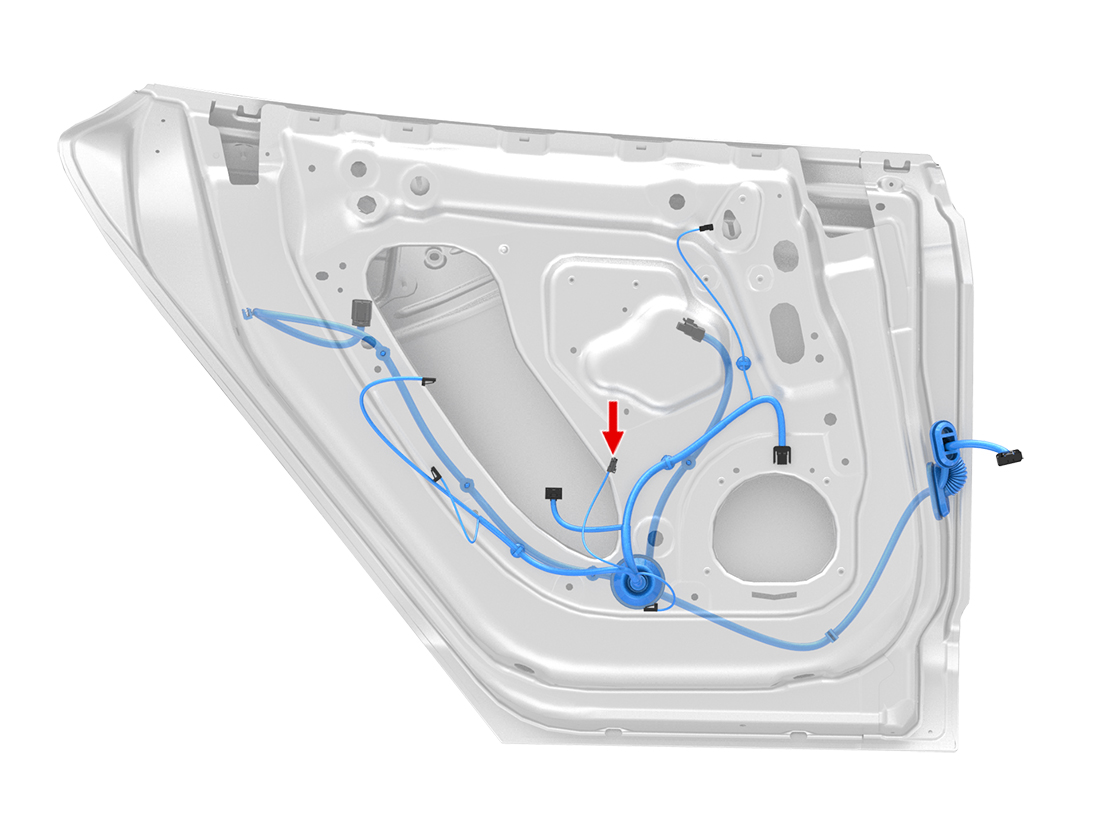

Location:
Connector Detail: AMP 2-929170-4
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: AMP 3-929169-1
Color: Blue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | SN | X366-6 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X945F-16 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | YE/WH | 0.5 | SN | X366-1 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X360-11 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X360-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | RD | 0.35 | SN | X360-13 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X360-11 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X360-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | RD | 0.35 | SN | X360-13 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | SN | X366-6 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.35 | SN | Z75-GDH14-R | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X945F-16 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | YE/WH | 0.5 | SN | X366-1 | AMP 5-963715-1 | 1099458-00-A |
