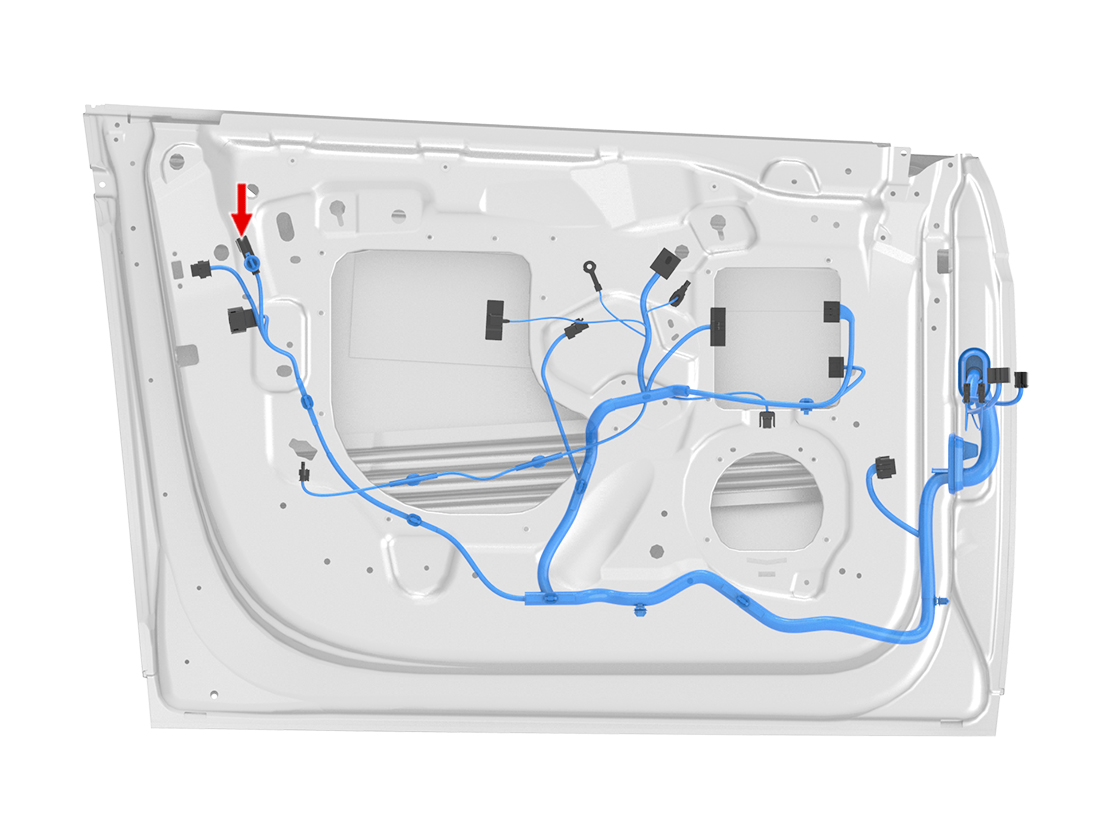

Location:
Connector Detail: Molex 33482-4001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X361-10 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X361-19 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
| 3 | GY | 0.5 | SN | X361-27 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X361-10 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X361-19 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
| 3 | GY | 0.5 | SN | X361-27 | Molex 33000-0004 | Tesla MATSEAL | 1099511-00-A | 1116485-00-A |
