X369 - s-rhd-sop10

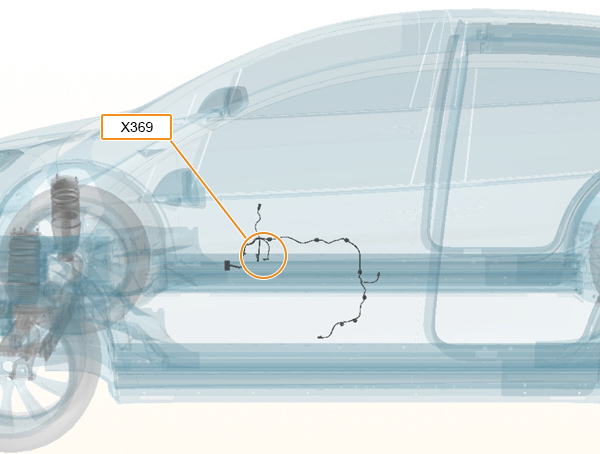

Location:

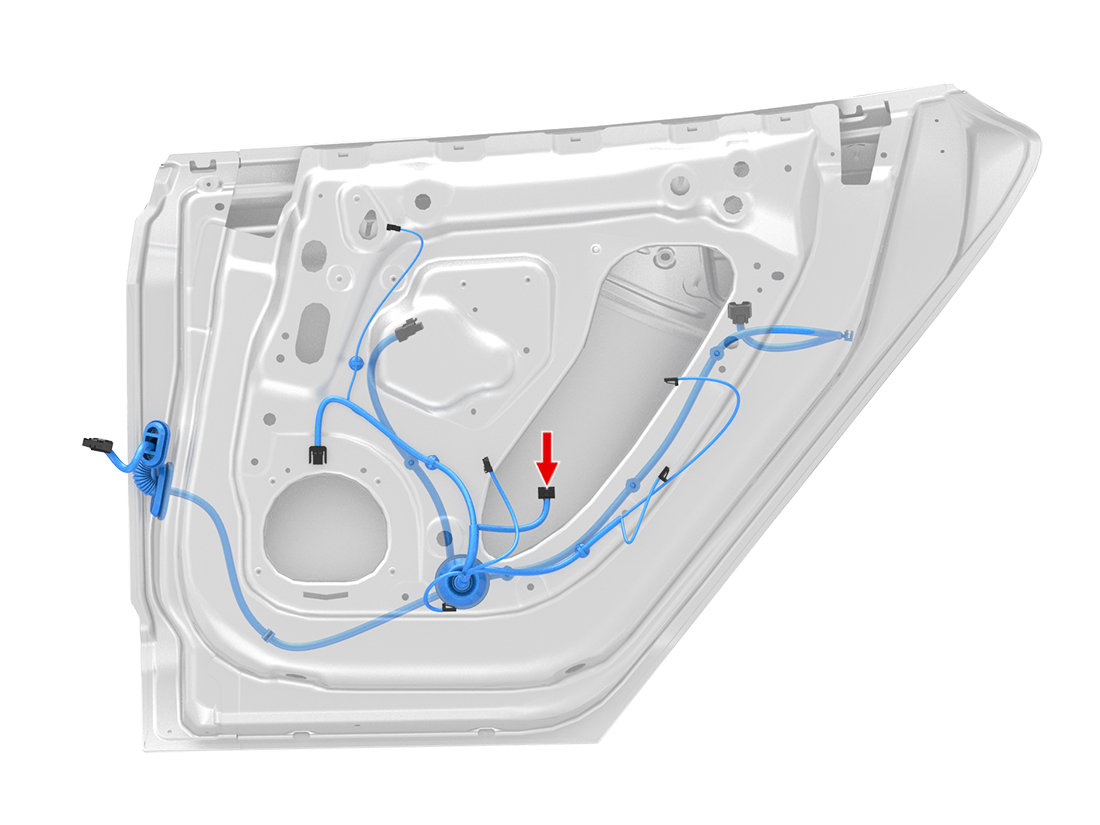

Location:
Connector Detail: AMP 2-929170-1
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Molex 34824-5124
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X370A-1 | Molex 560023-0421 | 1108392-00-C | ||
| 2 | BN | 0.35 | SN | X370A-2 | Molex 560023-0421 | 1108392-00-C | ||
| 3 | WH | 0.35 | SN | Z88-DCR12-L | Molex 560023-0421 | 1108392-00-C | ||
| 4 | RD/BU | 0.35 | SN | X946F-7 | Molex 560023-0421 | 1108392-00-C | ||
| 5 | BK/WH | 0.35 | SN | X370A-6 | Molex 560023-0421 | 1108392-00-C | ||
| 6 | RD/WH | 0.35 | SN | X370A-5 | Molex 560023-0421 | 1108392-00-C | ||
| 7 | OG | 0.35 | SN | X370A-4 | Molex 560023-0421 | 1108392-00-C | ||
| 8 | GN | 0.35 | SN | X370A-3 | Molex 560023-0421 | 1108392-00-C | ||
| 9 | BK | 0.35 | SN | Z95-GDG01-X | Molex 560023-0421 | 1108392-00-C | ||
| 11 | BU | 0.35 | SN | X946F-2 | Molex 560023-0421 | 1108392-00-C | ||
| 12 | BK | 0.35 | SN | Z95-GDG01-R | Molex 560023-0421 | 1108392-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X360-20 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X360-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X360-15 | AMP 928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X360-21 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X360-20 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X360-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X360-15 | AMP 928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X360-21 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X370A-1 | Molex 560023-0421 | 1108392-00-C | ||
| 2 | BN | 0.35 | SN | X370A-2 | Molex 560023-0421 | 1108392-00-C | ||
| 3 | WH | 0.35 | SN | Z88-DCR12-L | Molex 560023-0421 | 1108392-00-C | ||
| 4 | RD/BU | 0.35 | SN | X946F-7 | Molex 560023-0421 | 1108392-00-C | ||
| 5 | BK/WH | 0.35 | SN | X370A-6 | Molex 560023-0421 | 1108392-00-C | ||
| 6 | RD/WH | 0.35 | SN | X370A-5 | Molex 560023-0421 | 1108392-00-C | ||
| 7 | OG | 0.35 | SN | X370A-4 | Molex 560023-0421 | 1108392-00-C | ||
| 8 | GN | 0.35 | SN | X370A-3 | Molex 560023-0421 | 1108392-00-C | ||
| 9 | BK | 0.35 | SN | Z95-GDG01-X | Molex 560023-0421 | 1108392-00-C | ||
| 11 | BU | 0.35 | SN | X946F-2 | Molex 560023-0421 | 1108392-00-C | ||
| 12 | BK | 0.35 | SN | Z95-GDG01-R | Molex 560023-0421 | 1108392-00-C |
