X371 - s-rhd-sop10

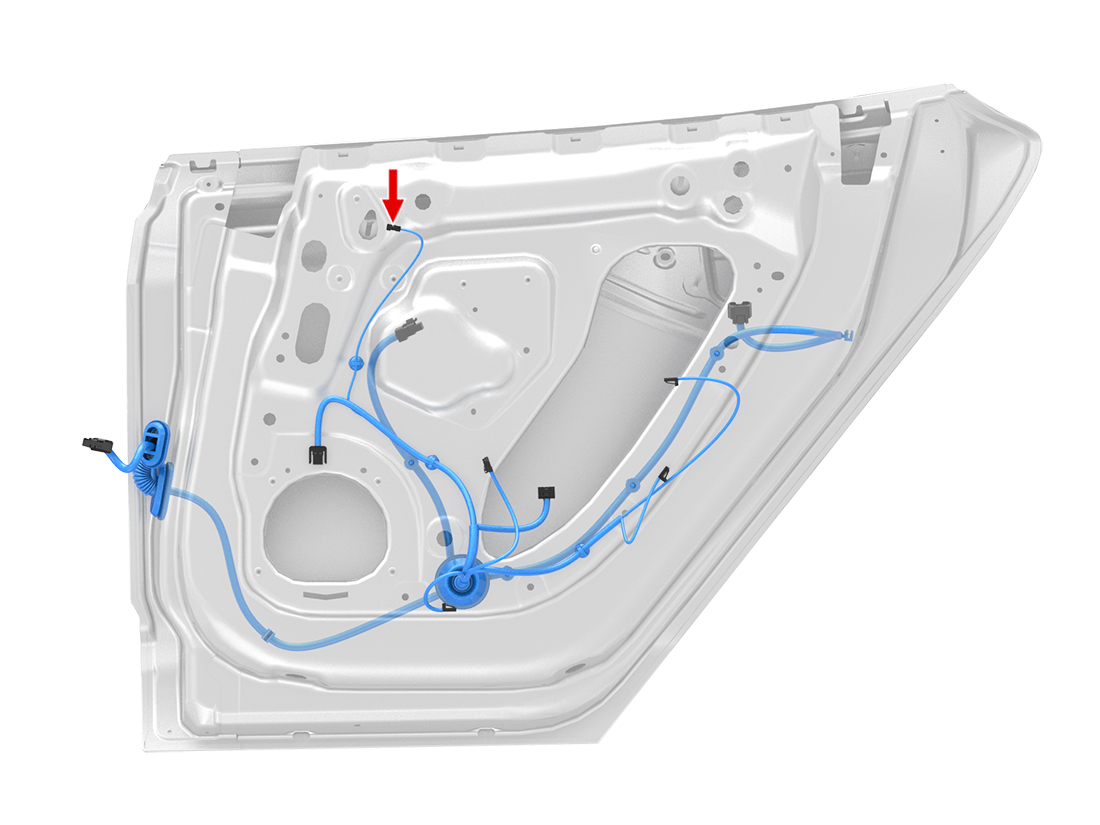

Location:

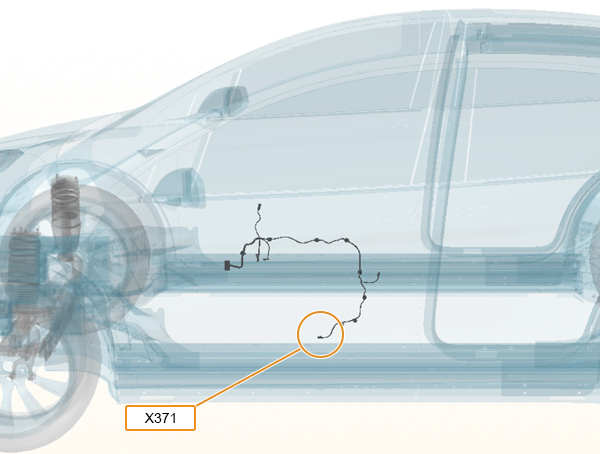

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.35 | SN | X946F-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-L | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X360-2 | AMP 928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | X360-9 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X360-2 | AMP 928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | X360-9 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.35 | SN | X946F-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-L | AMP 5-928999-1 | 1099455-00-B |
