X372 - s-rhd-sop10

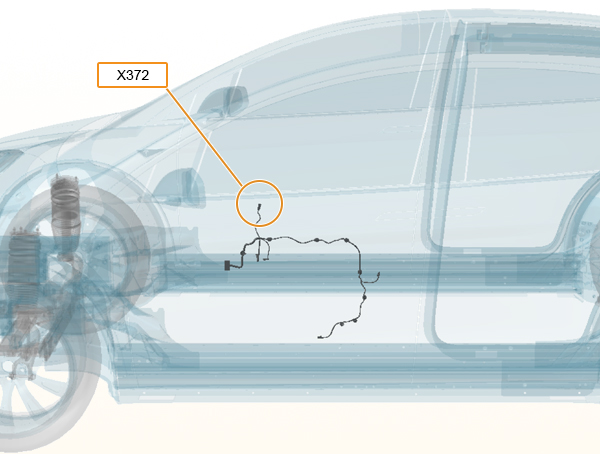

Location:
Location:
Connector Detail: AMP 1-968700-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 6-1355688-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AU | Z84-SEC14-R | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | GY/WH | 0.35 | AU | X929M-7 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | BK | 0.5 | AU | G700-1 | AMP 964274-3 | AMP 963530-1 | 1099472-00-B | |
| 8 | OG | 0.35 | AU | X929M-3 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | BK/GY | 0.35 | AU | X929M-4 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X360-14 | AMP 1-928918-1 | 1108323-00-C | ||
| 2 | GY | 0.35 | SN | X360-5 | AMP 1-928918-1 | 1108323-00-C | ||
| 3 | BN | 0.35 | SN | X360-1 | AMP 1-928918-1 | 1108323-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X360-14 | AMP 1-928918-1 | 1108323-00-C | ||
| 2 | GY | 0.35 | SN | X360-5 | AMP 1-928918-1 | 1108323-00-C | ||
| 3 | BN | 0.35 | SN | X360-1 | AMP 1-928918-1 | 1108323-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE | 0.35 | AU | Z84-SEC14-R | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | GY/WH | 0.35 | AU | X929M-7 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | BK | 0.5 | AU | G700-1 | AMP 964274-3 | AMP 963530-1 | 1099472-00-B | |
| 8 | OG | 0.35 | AU | X929M-3 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | BK/GY | 0.35 | AU | X929M-4 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B |
