X373 - s-rhd-sop10

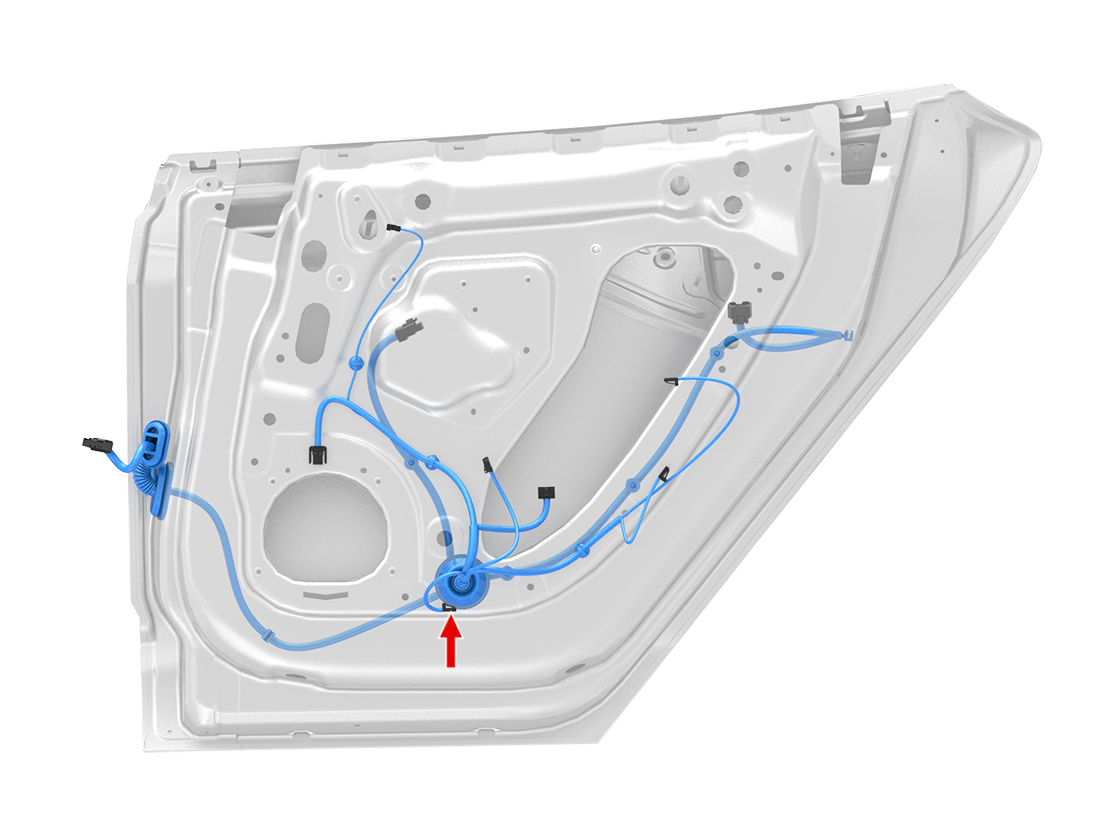

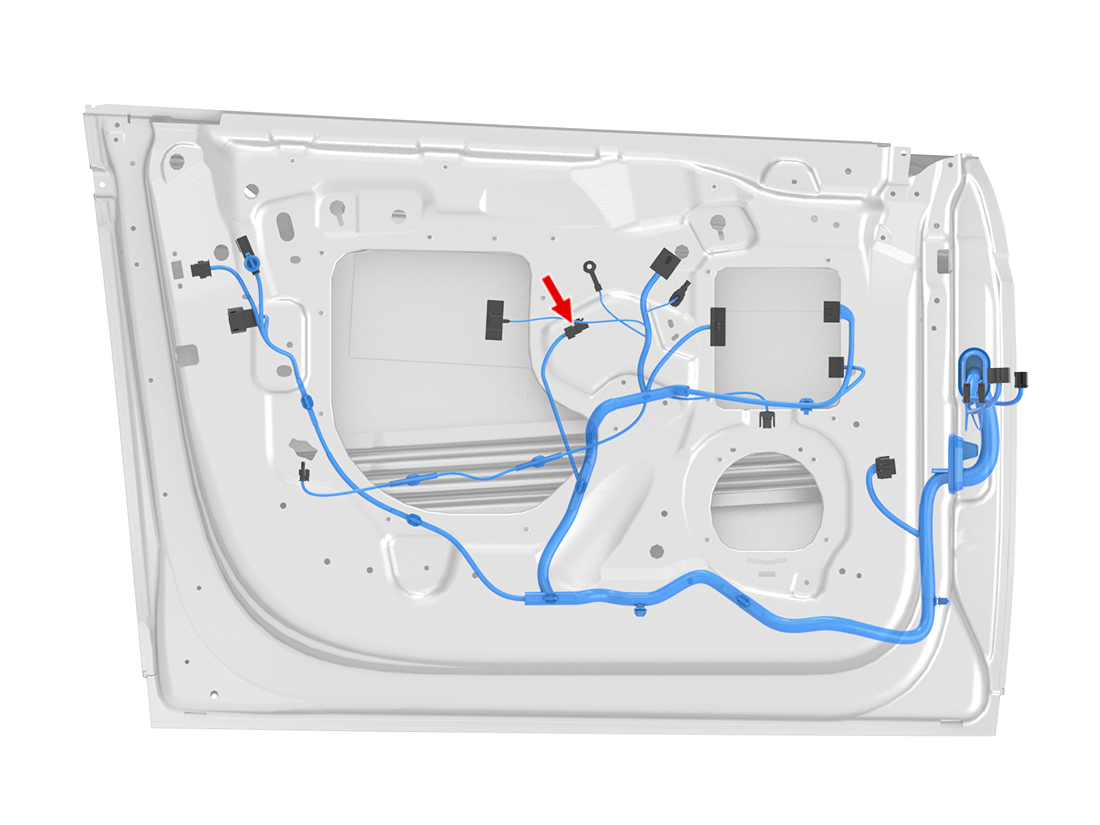

Location:
Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z91-DCR24-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.5 | SN | X361-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | VT | 0.5 | SN | X361-15 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | GY | 1.5 | SN | X920F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | X920F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X361-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH | 0.5 | SN | X361-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.5 | SN | X361-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | VT | 0.5 | SN | X361-15 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | GY | 1.5 | SN | X920F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | X920F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X361-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH | 0.5 | SN | X361-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z91-DCR24-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | 1099455-00-B |
