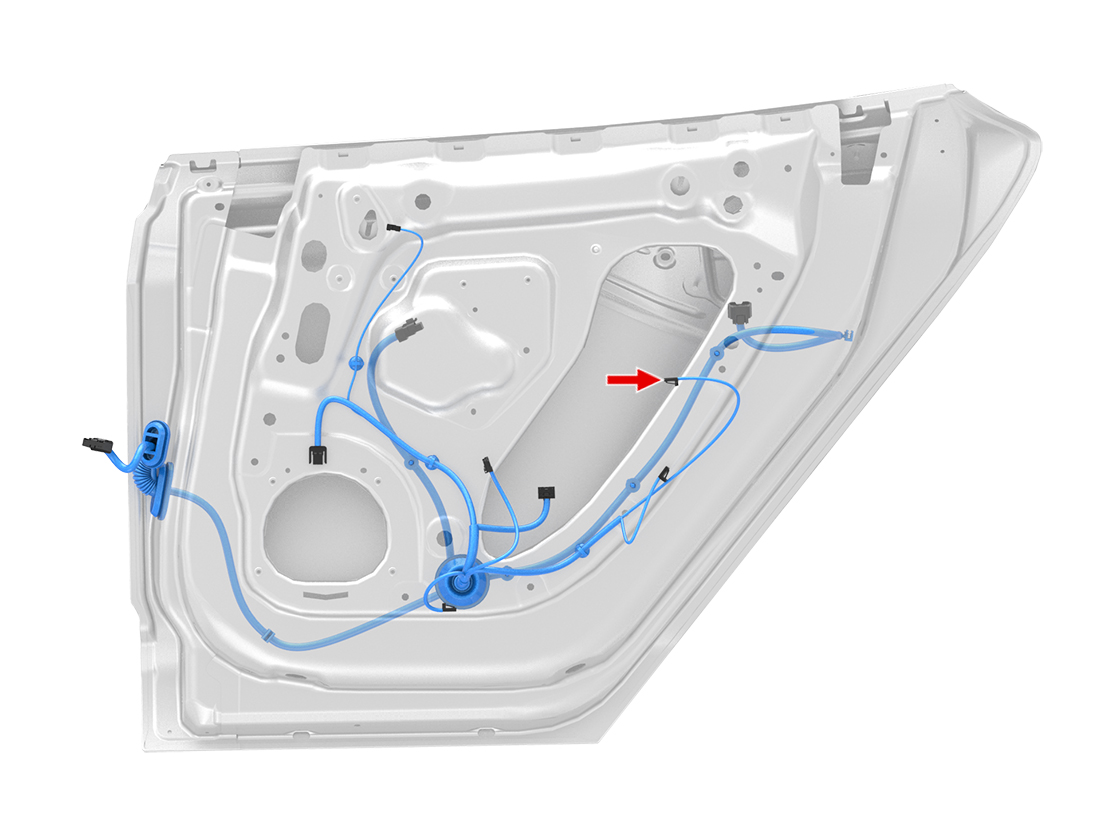

Location:

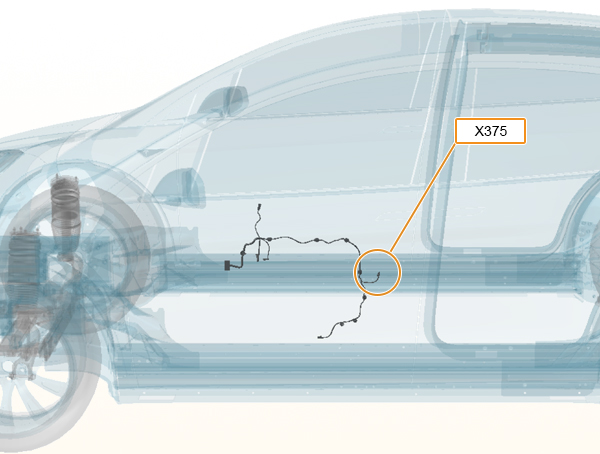

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.35 | SN | X946F-9 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X360-3 | AMP 928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | X360-4 | AMP 928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X360-3 | AMP 928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | X360-4 | AMP 928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.35 | SN | X946F-9 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | | 1099455-00-B | |
