X377 - s-rhd-sop10

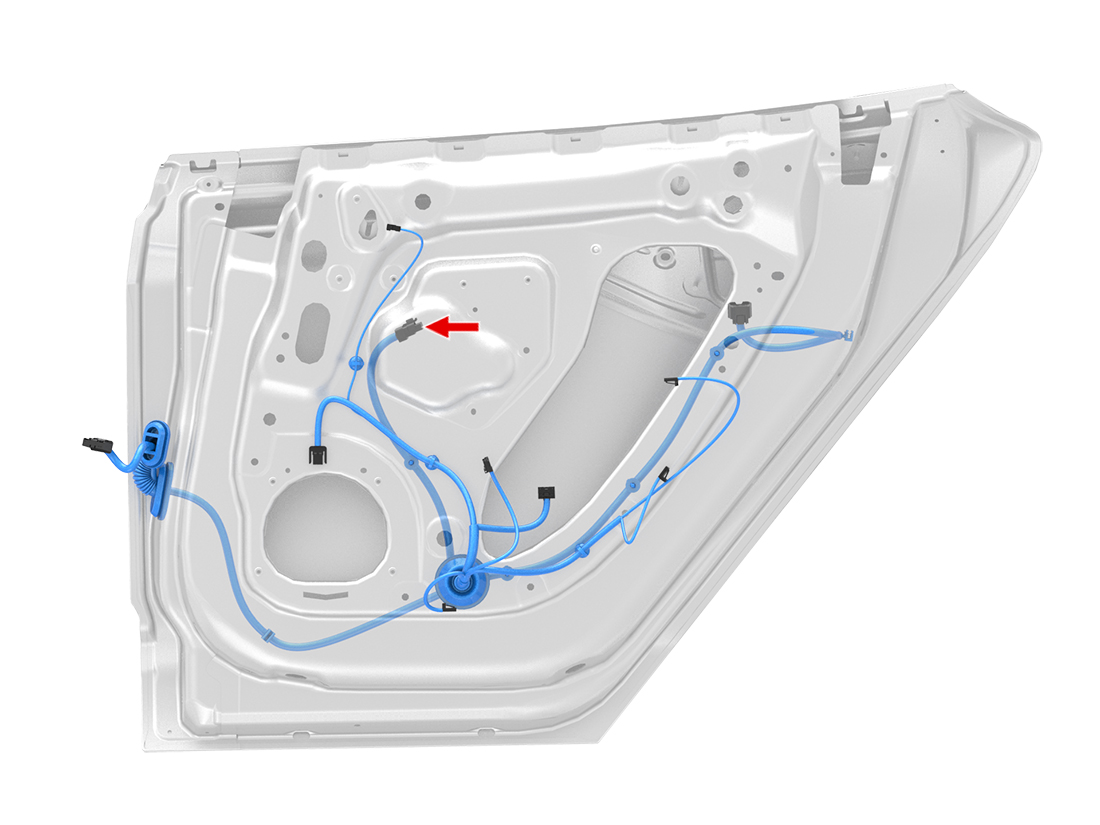

Location:
Location:
Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: AMP 3-929080-5
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.5 | SN | X376-4 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | YE | 0.5 | SN | X946F-17 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 1.5 | SN | X946F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 2 | SN | Z95-GDG01-R | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z88-DCR12-L | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X376-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X361-2 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X361-3 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X361-2 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X361-3 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | YE/WH | 0.5 | SN | X376-4 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | YE | 0.5 | SN | X946F-17 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 1.5 | SN | X946F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 2 | SN | Z95-GDG01-R | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z88-DCR12-L | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X376-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
