X378 - s-rhd-sop10

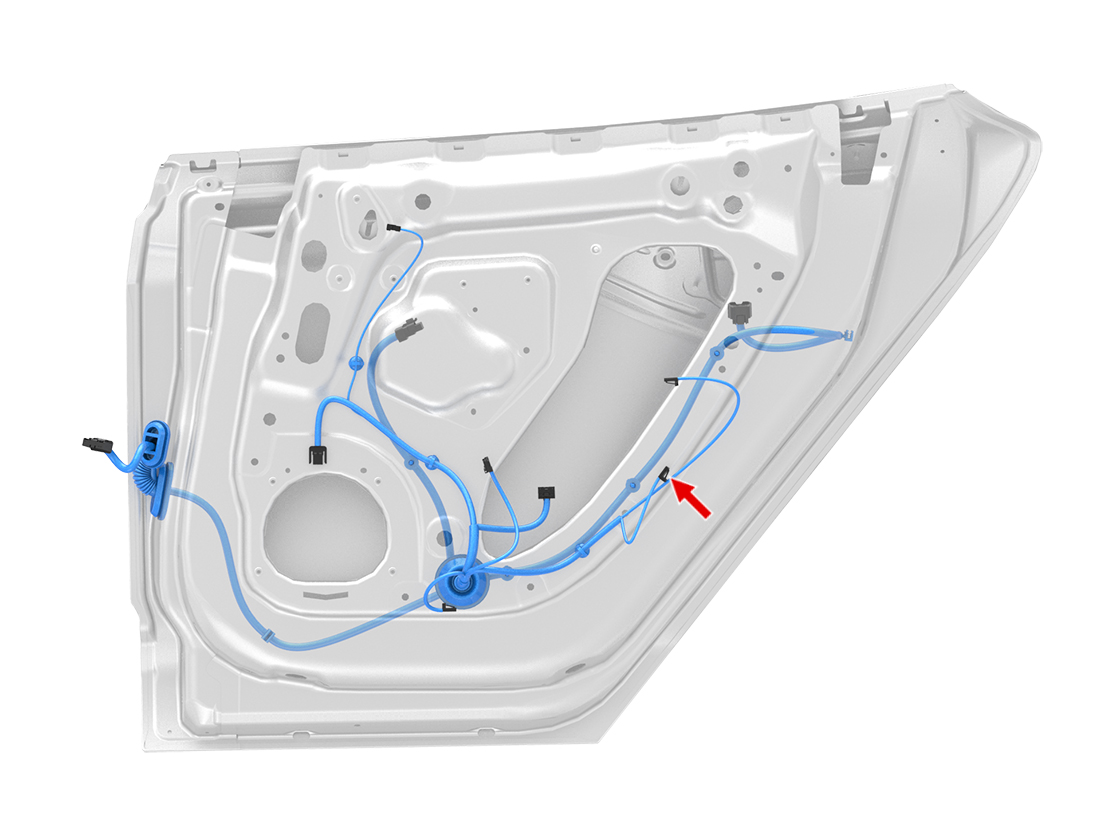

Location:
Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 872-861-522
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z91-DCR24-L | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | SN | X361-23 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 2 | BN | 0.5 | SN | X361-22 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 3 | GN | 0.35 | SN | X361-32 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | BK | 0.35 | SN | GND_A_LH_2-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | SN | X361-23 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 2 | BN | 0.5 | SN | X361-22 | AMP 7-1452668-1 | AMP 967067-1 | 1099461-00-C | |
| 3 | GN | 0.35 | SN | X361-32 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | BK | 0.35 | SN | GND_A_LH_2-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.35 | SN | Z91-DCR24-L | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.35 | SN | Z95-GDG01-R | AMP 5-928999-1 | 1099455-00-B |
