X385 - s-rhd-sop10

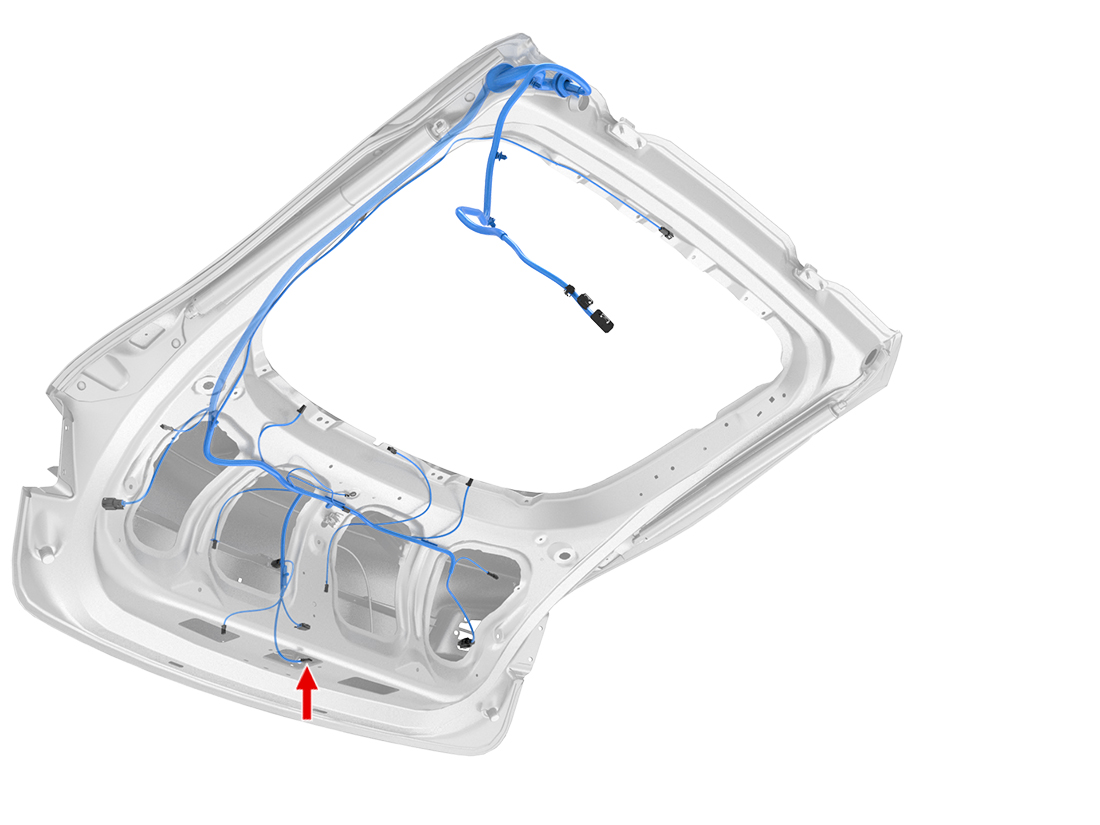

Location:

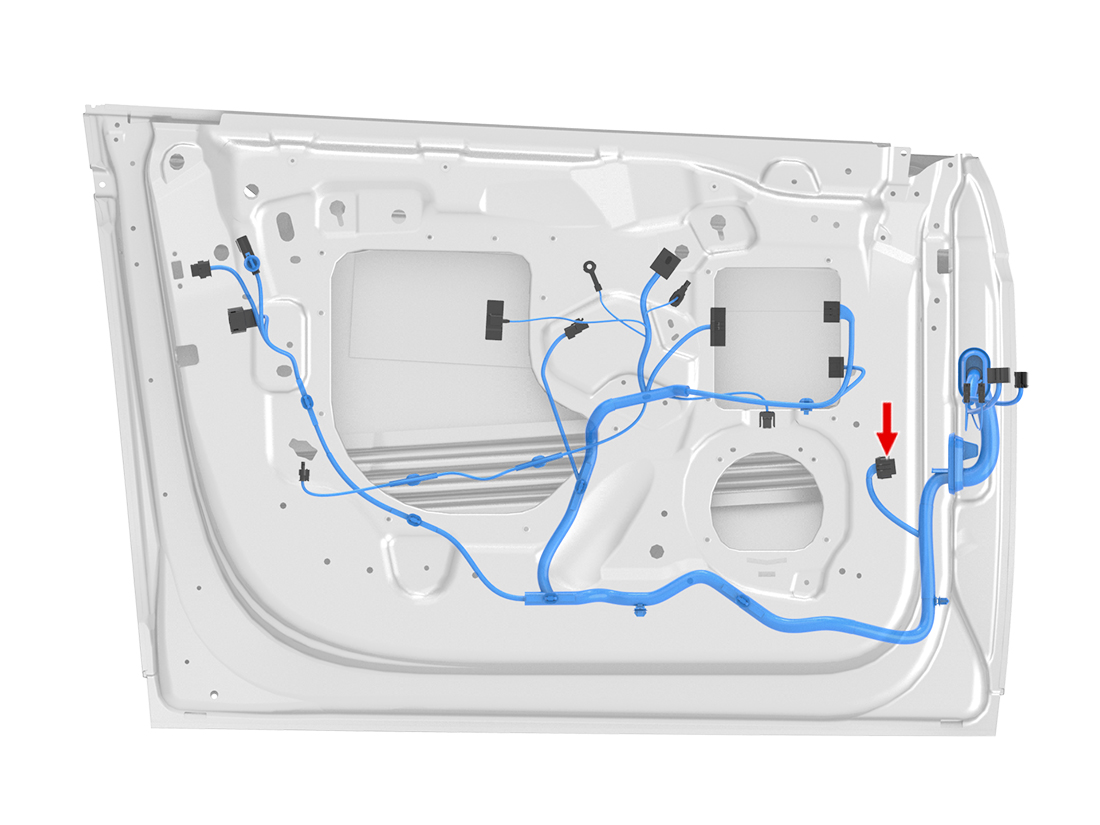

Location:
Connector Detail: AMP 1241634-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6185-5179
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X921F-3 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.5 | SN | Z46-GDL01-L | AMP 5-963715-1 | 1099458-00-A | ||
| 3 | WH/BU | 0.35 | SN | X921F-2 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X921F-9 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 1.5 | SN | X362-2 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | BU/WH | 0.35 | SN | X361-11 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 3 | GN/WH | 0.35 | SN | X361-35 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | RD | 0.5 | SN | X363-10 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 5 | GN | 1.5 | SN | X362-4 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 6 | GY | 0.35 | SN | X363-13 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 7 | VT/WH | 0.35 | SN | Z72-DCL121-R | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 8 | BU | 0.5 | SN | X363-9 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 1.5 | SN | X362-2 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | BU/WH | 0.35 | SN | X361-11 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 3 | GN/WH | 0.35 | SN | X361-35 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | RD | 0.5 | SN | X363-10 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 5 | GN | 1.5 | SN | X362-4 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 6 | GY | 0.35 | SN | X363-13 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 7 | VT/WH | 0.35 | SN | Z72-DCL121-R | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 8 | BU | 0.5 | SN | X363-9 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X921F-3 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK | 0.5 | SN | Z46-GDL01-L | AMP 5-963715-1 | 1099458-00-A | ||
| 3 | WH/BU | 0.35 | SN | X921F-2 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X921F-9 | AMP 5-928999-1 | 1099455-00-B |
