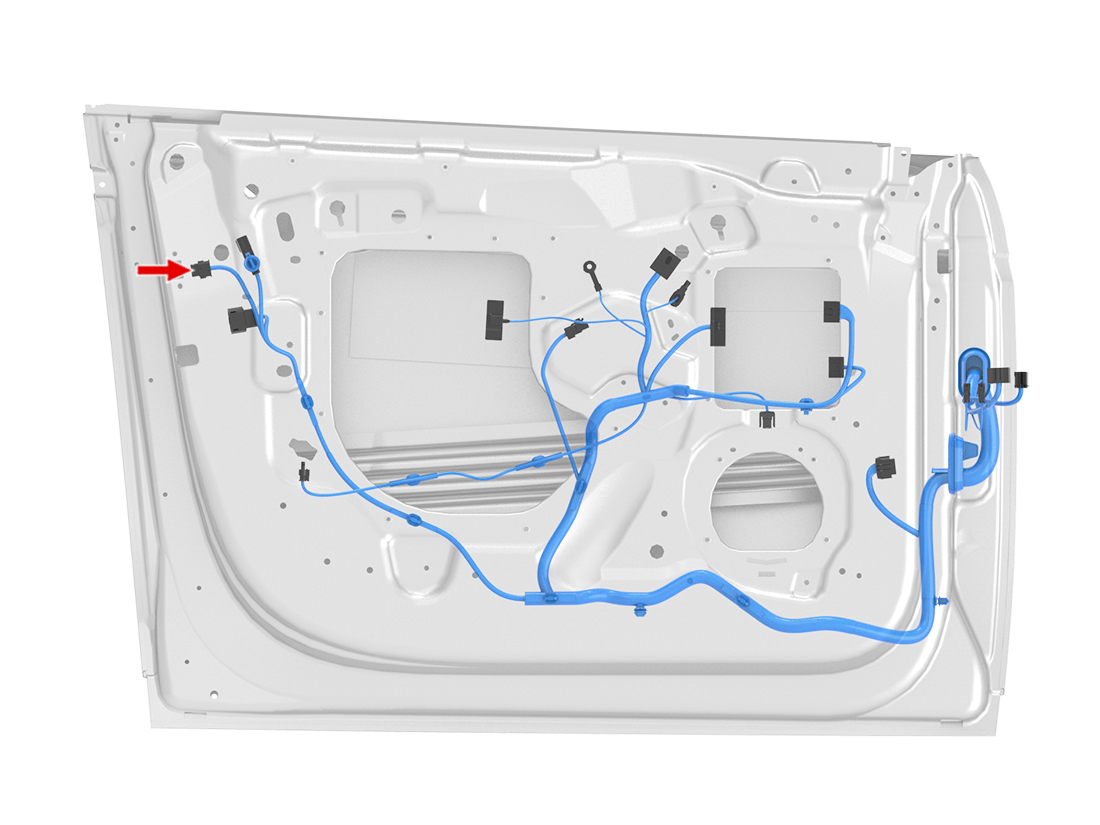

Location:
Connector Detail: Hirschmann 805-122-541
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.35 | SN | X361-37 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | VT/WH | 0.35 | SN | Z72-DCL121-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | X363-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | GY | 0.35 | SN | X363-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.35 | SN | X361-37 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | VT/WH | 0.35 | SN | Z72-DCL121-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | X363-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | GY | 0.35 | SN | X363-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
