X390 - s-rhd-sop10

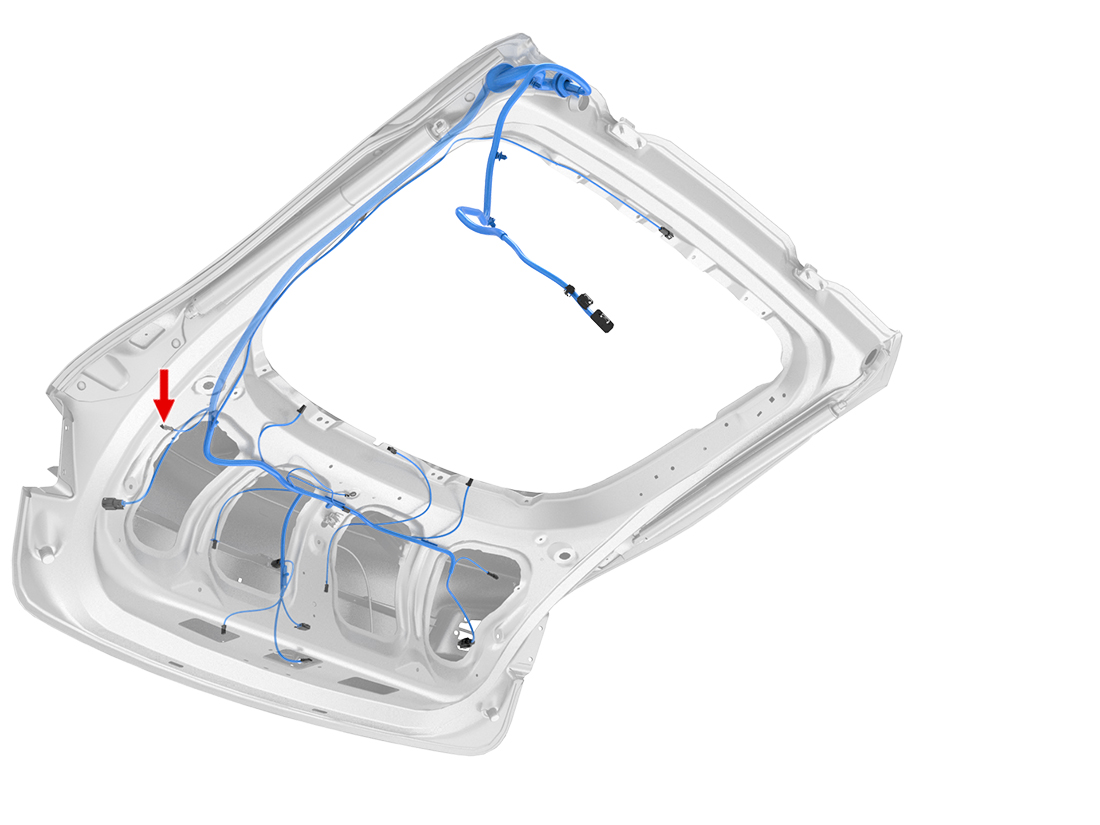

Location:

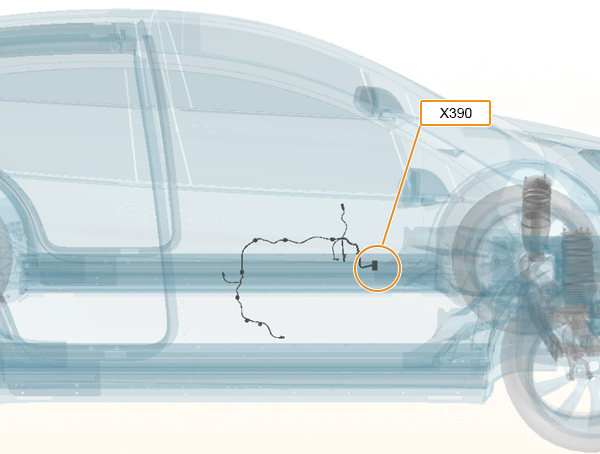

Location:
Connector Detail: AMP 178602-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4756
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X922F-13 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH/BK | 0.35 | SN | Z53-PLG18-R | AMP 173633-2 | 1099445-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X402-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | RD | 0.35 | SN | X401-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X405-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | BK | 0.35 | SN | X405-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | GY | 0.35 | SN | X402-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN | 0.35 | SN | X396-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | BK | 0.35 | SN | X401-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | GN | 0.35 | SN | X395-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | WH | 0.35 | SN | X395-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | WH | 0.35 | SN | X399-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | RD | 0.35 | SN | X395-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | VT | 0.35 | SN | X402-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | GY | 0.35 | SN | X399-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | WH | 0.35 | SN | X396-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | BN | 0.35 | SN | X399-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 21 | BU | 0.35 | SN | X399-4 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X402-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | RD | 0.35 | SN | X401-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X405-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | BK | 0.35 | SN | X405-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | GY | 0.35 | SN | X402-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN | 0.35 | SN | X396-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | BK | 0.35 | SN | X401-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | GN | 0.35 | SN | X395-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | WH | 0.35 | SN | X395-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | WH | 0.35 | SN | X399-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | RD | 0.35 | SN | X395-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | VT | 0.35 | SN | X402-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | GY | 0.35 | SN | X399-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | WH | 0.35 | SN | X396-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | BN | 0.35 | SN | X399-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 21 | BU | 0.35 | SN | X399-4 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X922F-13 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH/BK | 0.35 | SN | Z53-PLG18-R | AMP 173633-2 | 1099445-00-A |
