X391 - s-rhd-sop10

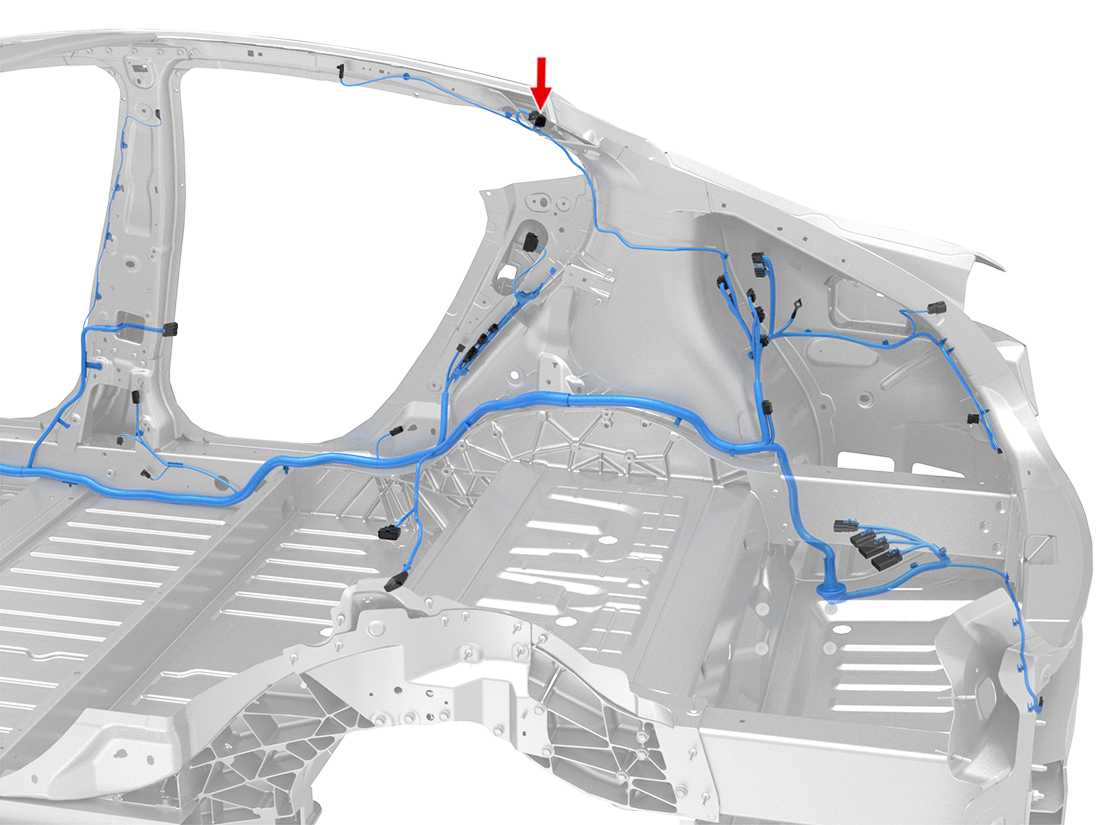

Location:

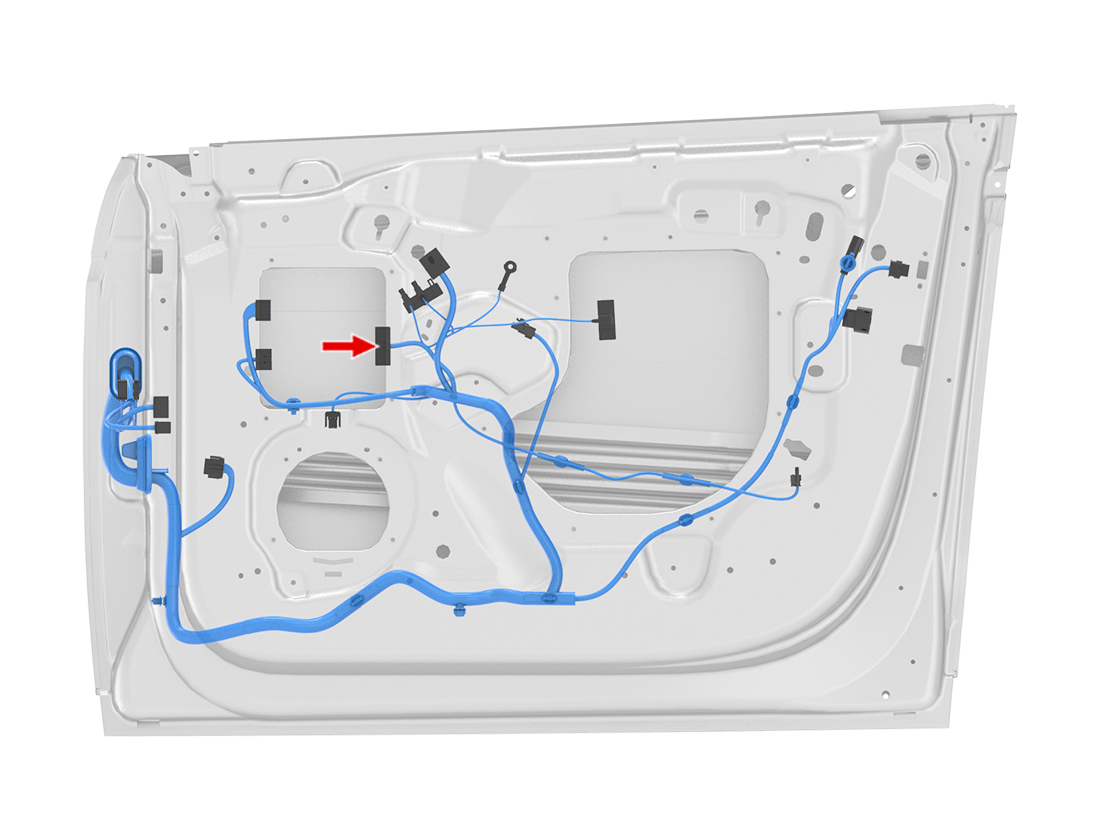

Location:
Connector Detail: Sumitomo 6098-4831
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7282-6448-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 2 | SN | X397-9 | Yazaki 7114-4112-02 | 1099550-00-A | ||
| 2 | RD | 0.5 | SN | X397-4 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 3 | RD/VT | 0.5 | SN | X397-2 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 4 | BK/WH | 2 | SN | X397-10 | Yazaki 7114-4112-02 | 1099550-00-A | ||
| 5 | RD/GN | 0.5 | SN | X393-7 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 6 | RD/BU | 0.5 | SN | X393-8 | Yazaki 7114-4100-02 | 1099547-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X403-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | BU/WH | 0.35 | SN | X477-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BU | 0.35 | SN | X477-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT | 0.35 | SN | X404-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X404-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X404-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X404-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X398-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | BU/WH | 0.35 | SN | X415-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BK | 0.35 | SN | X922F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BK | 0.35 | SN | X922F-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.5 | SN | X403-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.5 | SN | X410-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | GN | 0.5 | SN | X398-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BN | 0.5 | SN | X478-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | RD/WH | 0.5 | SN | X478-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | GY | 0.35 | SN | X404-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | BK/WH | 0.35 | SN | X404-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 26 | BU | 0.35 | SN | X404-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | GY | 0.5 | SN | X398-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 28 | BN | 0.5 | SN | X403-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X403-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN | 0.35 | SN | X922F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 31 | BN/WH | 0.35 | SN | X922F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 32 | GN | 0.35 | SN | X478-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 33 | VT/WH | 0.35 | SN | X476-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 34 | BU/WH | 0.35 | SN | X476-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN/WH | 0.35 | SN | X415-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 37 | GY/WH | 0.35 | SN | X416-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 38 | GY | 0.35 | SN | X922F-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 39 | WH | 0.35 | SN | X922F-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 40 | GY/WH | 0.35 | SN | X404-4 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X403-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | BU/WH | 0.35 | SN | X477-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BU | 0.35 | SN | X477-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT | 0.35 | SN | X404-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X404-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X404-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X404-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X398-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | BU/WH | 0.35 | SN | X415-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BK | 0.35 | SN | X922F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BK | 0.35 | SN | X922F-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.5 | SN | X403-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.5 | SN | X410-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | GN | 0.5 | SN | X398-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BN | 0.5 | SN | X478-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | RD/WH | 0.5 | SN | X478-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | GY | 0.35 | SN | X404-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | BK/WH | 0.35 | SN | X404-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 26 | BU | 0.35 | SN | X404-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | GY | 0.5 | SN | X398-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 28 | BN | 0.5 | SN | X403-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X403-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN | 0.35 | SN | X922F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 31 | BN/WH | 0.35 | SN | X922F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 32 | GN | 0.35 | SN | X478-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 33 | VT/WH | 0.35 | SN | X476-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 34 | BU/WH | 0.35 | SN | X476-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN/WH | 0.35 | SN | X415-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 37 | GY/WH | 0.35 | SN | X416-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 38 | GY | 0.35 | SN | X922F-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 39 | WH | 0.35 | SN | X922F-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 40 | GY/WH | 0.35 | SN | X404-4 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 2 | SN | X397-9 | Yazaki 7114-4112-02 | 1099550-00-A | ||
| 2 | RD | 0.5 | SN | X397-4 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 3 | RD/VT | 0.5 | SN | X397-2 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 4 | BK/WH | 2 | SN | X397-10 | Yazaki 7114-4112-02 | 1099550-00-A | ||
| 5 | RD/GN | 0.5 | SN | X393-7 | Yazaki 7114-4100-02 | 1099547-00-B | ||
| 6 | RD/BU | 0.5 | SN | X393-8 | Yazaki 7114-4100-02 | 1099547-00-B |
