X392 - s-rhd-sop10

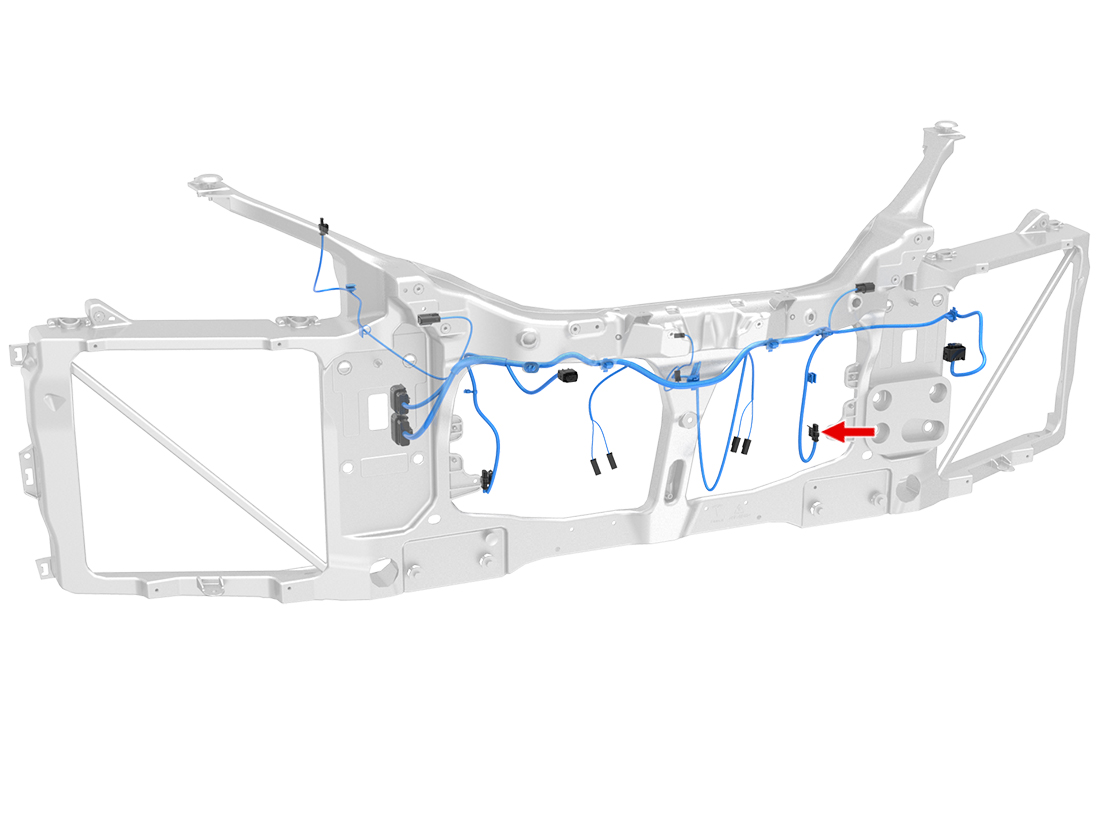

Location:

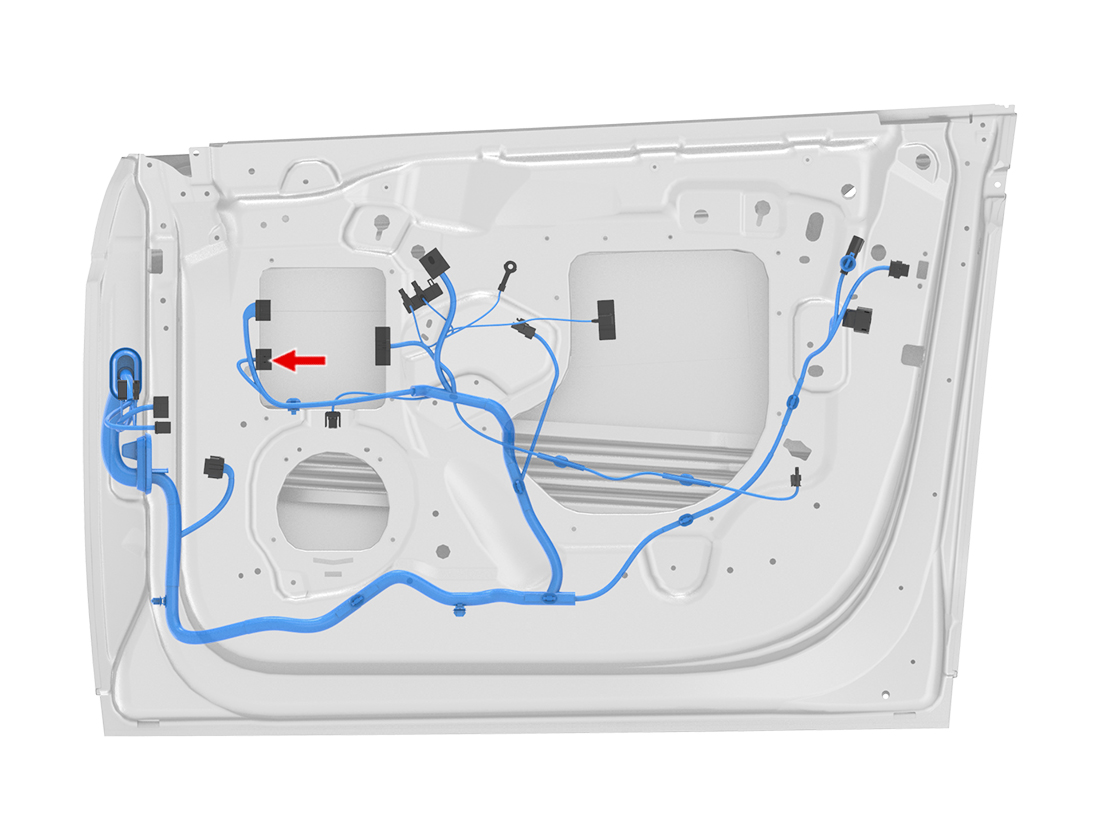

Location:
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4667
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X966F-20 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | RD/GN | 0.5 | SN | X966F-19 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 2 | SN | X923F-1 | Sumitomo 8100-0782 | 1116660-00-A | ||
| 2 | BN | 1.5 | SN | X415-5 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 4 | GN | 1.5 | SN | X415-1 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 5 | BK | 2 | SN | X923F-2 | Sumitomo 8100-0782 | 1116660-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 2 | SN | X923F-1 | Sumitomo 8100-0782 | 1116660-00-A | ||
| 2 | BN | 1.5 | SN | X415-5 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 4 | GN | 1.5 | SN | X415-1 | Sumitomo 8100-0606 | 1116660-00-A | ||
| 5 | BK | 2 | SN | X923F-2 | Sumitomo 8100-0782 | 1116660-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.5 | SN | X966F-20 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | RD/GN | 0.5 | SN | X966F-19 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
