X393 - s-rhd-sop10

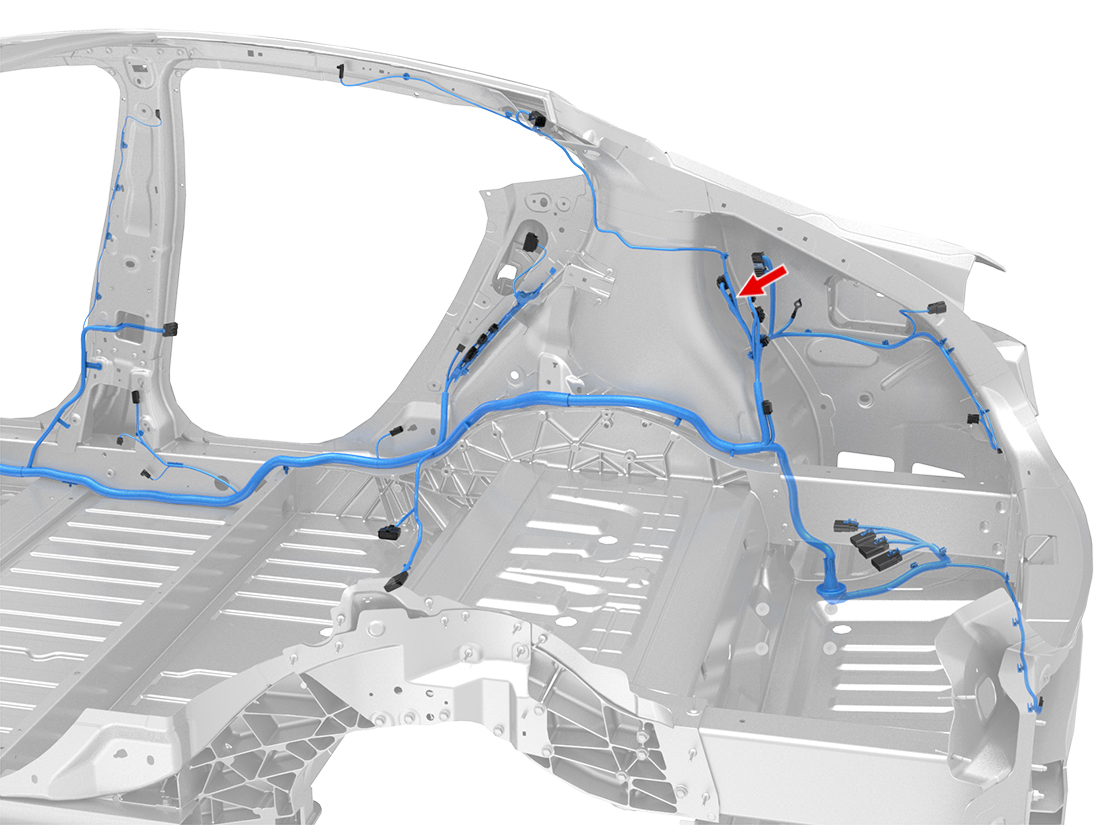

Location:

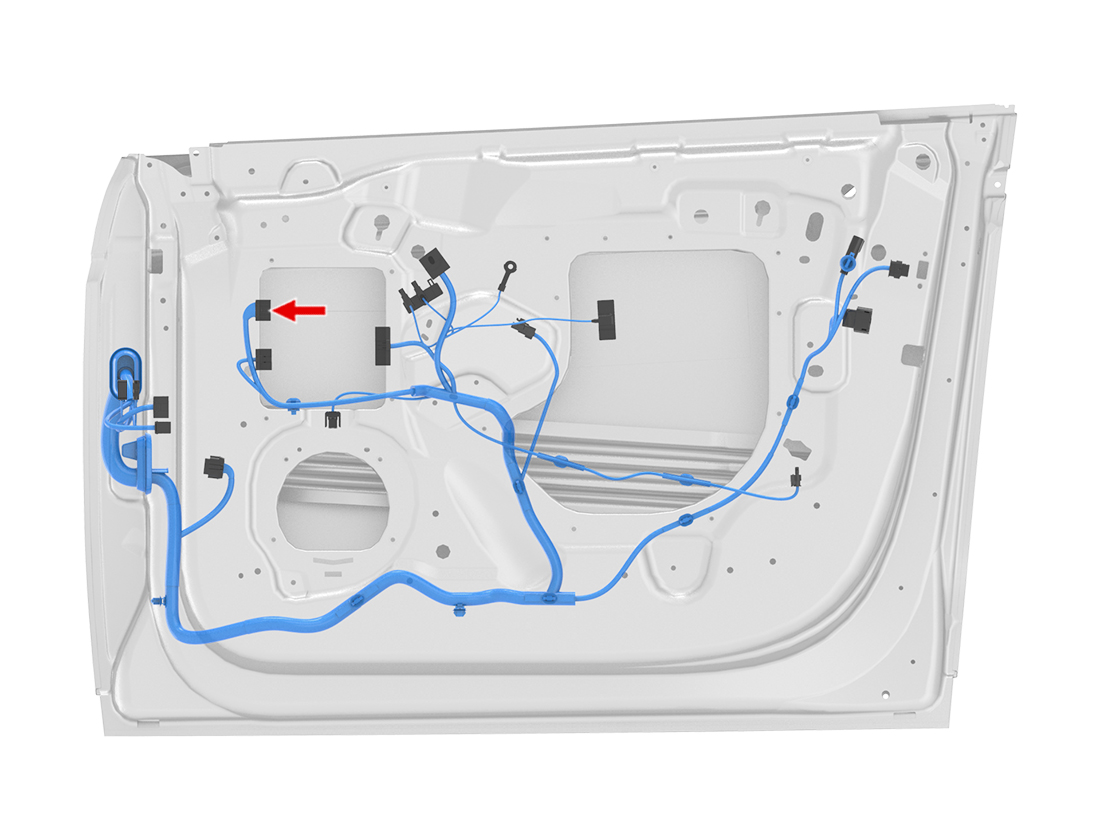

Location:
Connector Detail: Sumitomo 6098-6203
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: JAE MX34020SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X922M-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | OG/BK | 0.35 | SN | X922M-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | BN/WH | 0.35 | SN | X774-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | BU | 0.35 | SN | X774-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | WH/BU | 0.35 | SN | X774-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | OG | 0.35 | SN | X922M-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 7 | RD/GN | 0.5 | SN | X391-5 | JAE M34S75C4F2 | 1099500-00-A | ||
| 8 | RD/BU | 0.5 | SN | X391-6 | JAE M34S75C4F2 | 1099500-00-A | ||
| 11 | WH | 0.35 | SN | X922M-16 | JAE M34S75C4F1 | 1099499-00-B | ||
| 13 | BN | 0.35 | SN | X774-21 | JAE M34S75C4F1 | 1099499-00-B | ||
| 17 | GY/WH | 0.35 | SN | X922M-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | GY | 0.35 | SN | X922M-13 | JAE M34S75C4F1 | 1099499-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X416-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | GY | 0.35 | SN | X416-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN/WH | 0.35 | SN | X404-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | BU/WH | 0.35 | SN | X404-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 5 | RD | 0.35 | SN | X404-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | VT | 0.35 | SN | X404-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | BK/WH | 0.75 | SN | GND_A_RH_2-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 9 | BU | 0.5 | SN | X415-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | RD | 0.5 | SN | X415-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | VT/WH | 0.35 | SN | Z73-DCR119-R | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | BN/WH | 0.35 | SN | X404-15 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | GY | 0.35 | SN | X415-6 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X416-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | GY | 0.35 | SN | X416-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN/WH | 0.35 | SN | X404-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 4 | BU/WH | 0.35 | SN | X404-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 5 | RD | 0.35 | SN | X404-2 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | VT | 0.35 | SN | X404-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 8 | BK/WH | 0.75 | SN | GND_A_RH_2-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 9 | BU | 0.5 | SN | X415-8 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | RD | 0.5 | SN | X415-4 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 11 | VT/WH | 0.35 | SN | Z73-DCR119-R | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | BN/WH | 0.35 | SN | X404-15 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 13 | GY | 0.35 | SN | X415-6 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X922M-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | OG/BK | 0.35 | SN | X922M-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | BN/WH | 0.35 | SN | X774-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | BU | 0.35 | SN | X774-18 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | WH/BU | 0.35 | SN | X774-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | OG | 0.35 | SN | X922M-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 7 | RD/GN | 0.5 | SN | X391-5 | JAE M34S75C4F2 | 1099500-00-A | ||
| 8 | RD/BU | 0.5 | SN | X391-6 | JAE M34S75C4F2 | 1099500-00-A | ||
| 11 | WH | 0.35 | SN | X922M-16 | JAE M34S75C4F1 | 1099499-00-B | ||
| 13 | BN | 0.35 | SN | X774-21 | JAE M34S75C4F1 | 1099499-00-B | ||
| 17 | GY/WH | 0.35 | SN | X922M-3 | JAE M34S75C4F1 | 1099499-00-B | ||
| 18 | GY | 0.35 | SN | X922M-13 | JAE M34S75C4F1 | 1099499-00-B |
