X395 - s-rhd-sop10

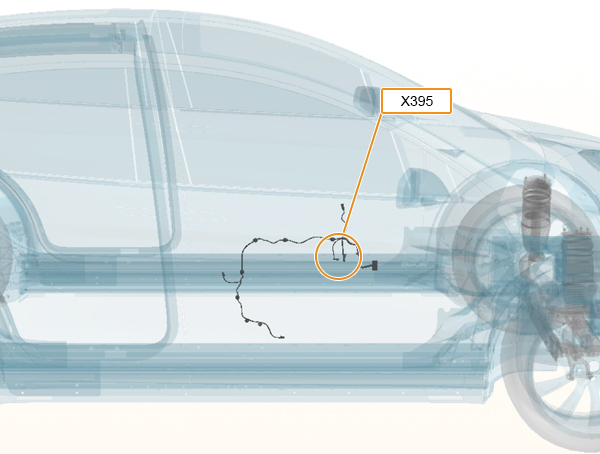

Location:
Connector Detail: AMP 3-929169-1
Color: Blue
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X390-11 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X390-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | RD | 0.35 | SN | X390-13 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X390-11 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X390-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | RD | 0.35 | SN | X390-13 | AMP 928999-1 | 1099455-00-B |
