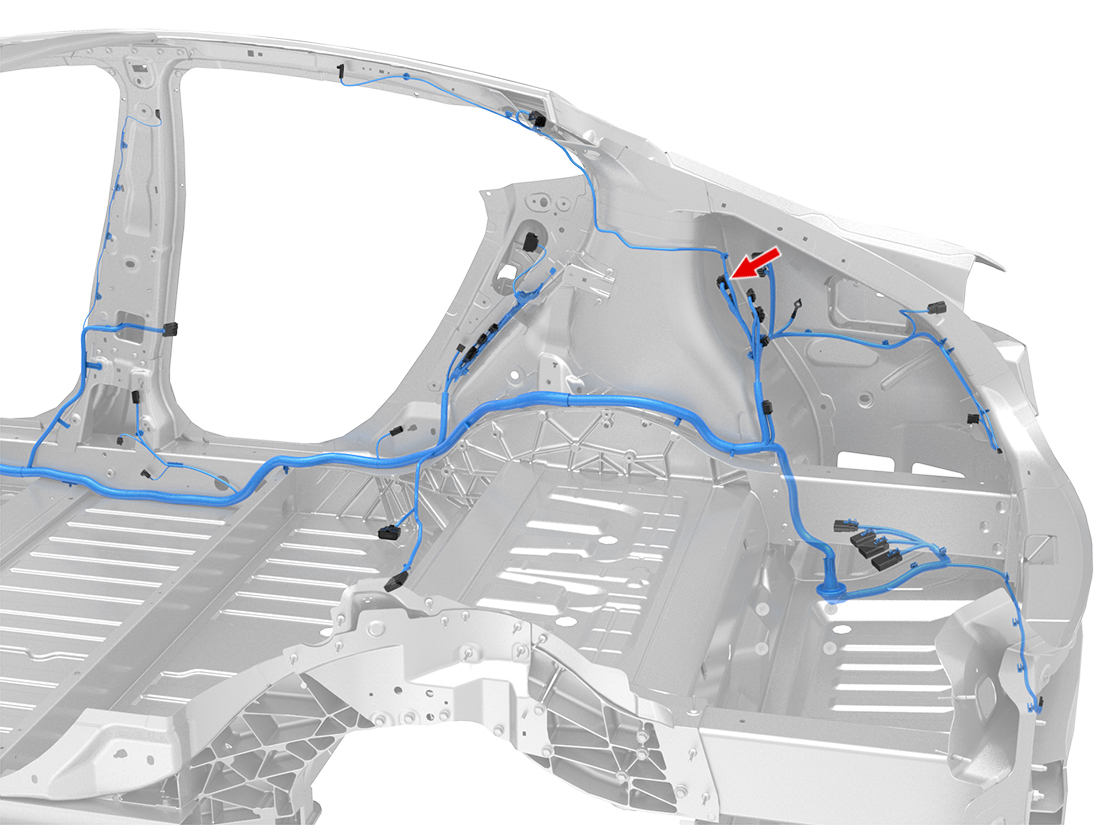

Location:
Connector Detail: Molex 31372-1000
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/BK | 0.35 | SN | X922M-4 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 2 | RD/VT | 0.5 | SN | X391-3 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X391-2 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 5 | BN | 0.35 | SN | X922M-5 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 6 | BN/WH | 0.35 | SN | X922M-14 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 7 | BK | 2 | SN | G700-1 | AMP 1326030-3 | | 1099433-00-A | |
| 8 | GY | 2 | SN | X574-6 | AMP 1326030-3 | | 1099433-00-A | |
| 9 | RD/WH | 2 | SN | X391-1 | AMP 1326030-3 | | 1099433-00-A | |
| 10 | BK/WH | 2 | SN | X391-4 | AMP 1326030-3 | | 1099433-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH/BK | 0.35 | SN | X922M-4 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 2 | RD/VT | 0.5 | SN | X391-3 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X391-2 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 5 | BN | 0.35 | SN | X922M-5 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 6 | BN/WH | 0.35 | SN | X922M-14 | Molex 33012-3003 | | 1099518-00-A | 1116485-00-A |
| 7 | BK | 2 | SN | G700-1 | AMP 1326030-3 | | 1099433-00-A | |
| 8 | GY | 2 | SN | X574-6 | AMP 1326030-3 | | 1099433-00-A | |
| 9 | RD/WH | 2 | SN | X391-1 | AMP 1326030-3 | | 1099433-00-A | |
| 10 | BK/WH | 2 | SN | X391-4 | AMP 1326030-3 | | 1099433-00-A | |
