X398 - s-rhd-sop10

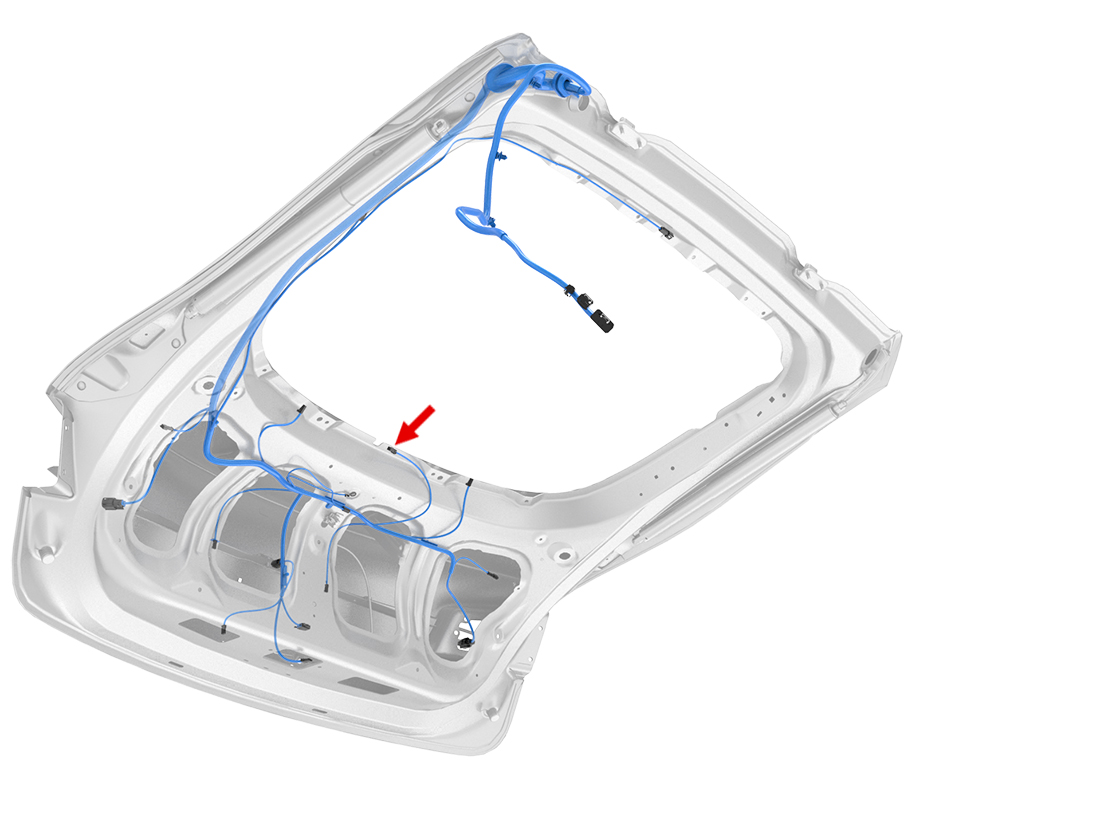

Location:

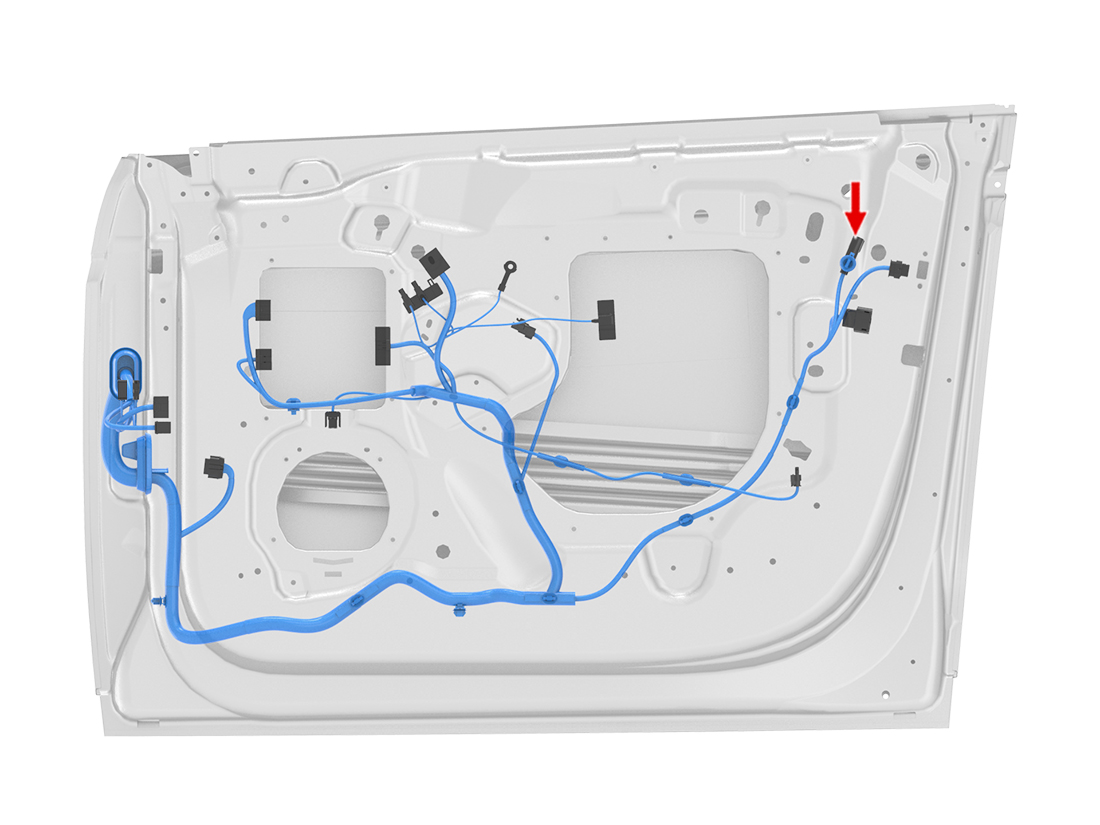

Location:
Connector Detail: AMP 174463-1
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Molex 33482-4001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X922F-8 | AMP 173630-1 | 1099444-00-B | ||
| 2 | WH | 0.35 | SN | X922F-16 | AMP 173630-1 | 1099444-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X391-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X391-19 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | GY | 0.5 | SN | X391-27 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X391-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X391-19 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | GY | 0.5 | SN | X391-27 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X922F-8 | AMP 173630-1 | 1099444-00-B | ||
| 2 | WH | 0.35 | SN | X922F-16 | AMP 173630-1 | 1099444-00-B |
