X399 - s-rhd-sop10

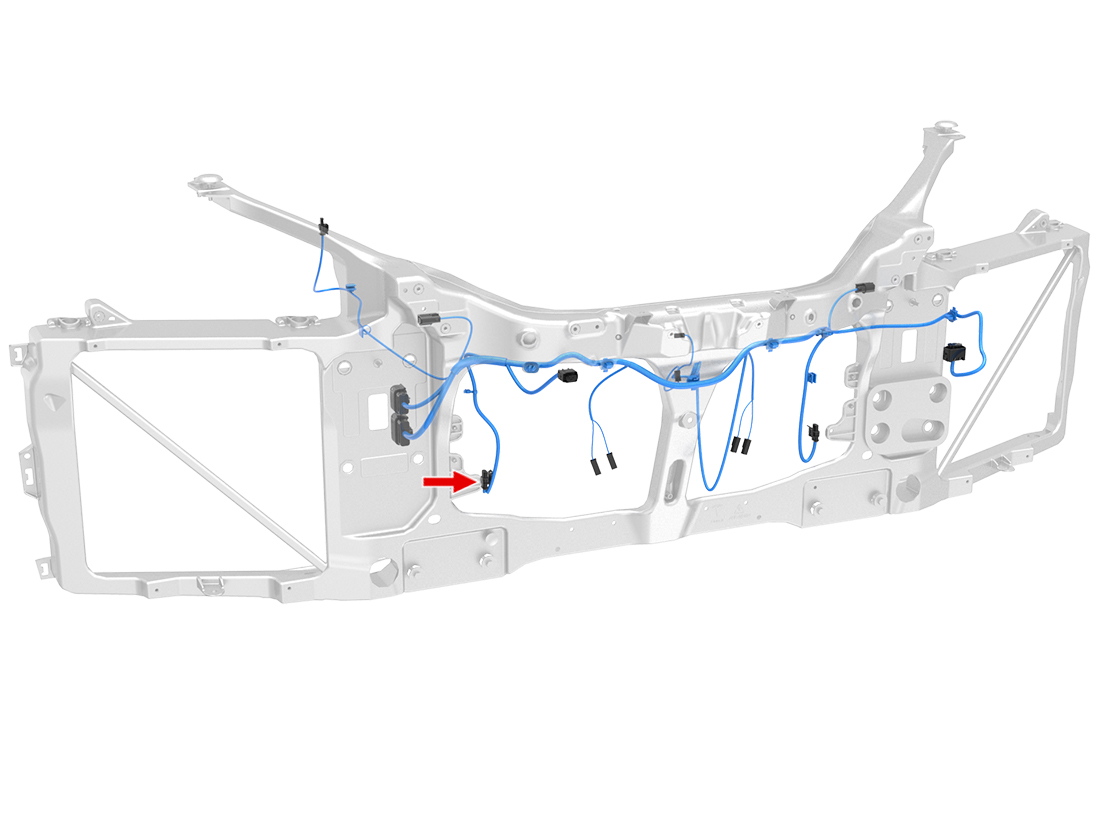

Location:
Location:
Connector Detail: AMP 2-929170-1
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | SN | X966F-10 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | RD/VT | 0.5 | SN | X966F-9 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X390-20 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X390-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X390-15 | AMP 928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X390-21 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | SN | X390-20 | AMP 928999-1 | 1099455-00-B | ||
| 2 | WH | 0.35 | SN | X390-12 | AMP 928999-1 | 1099455-00-B | ||
| 3 | GY | 0.35 | SN | X390-15 | AMP 928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X390-21 | AMP 928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | SN | X966F-10 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B | |
| 2 | RD/VT | 0.5 | SN | X966F-9 | AMP 282403-1 | AMP 281934-4 | 1099453-00-B |
