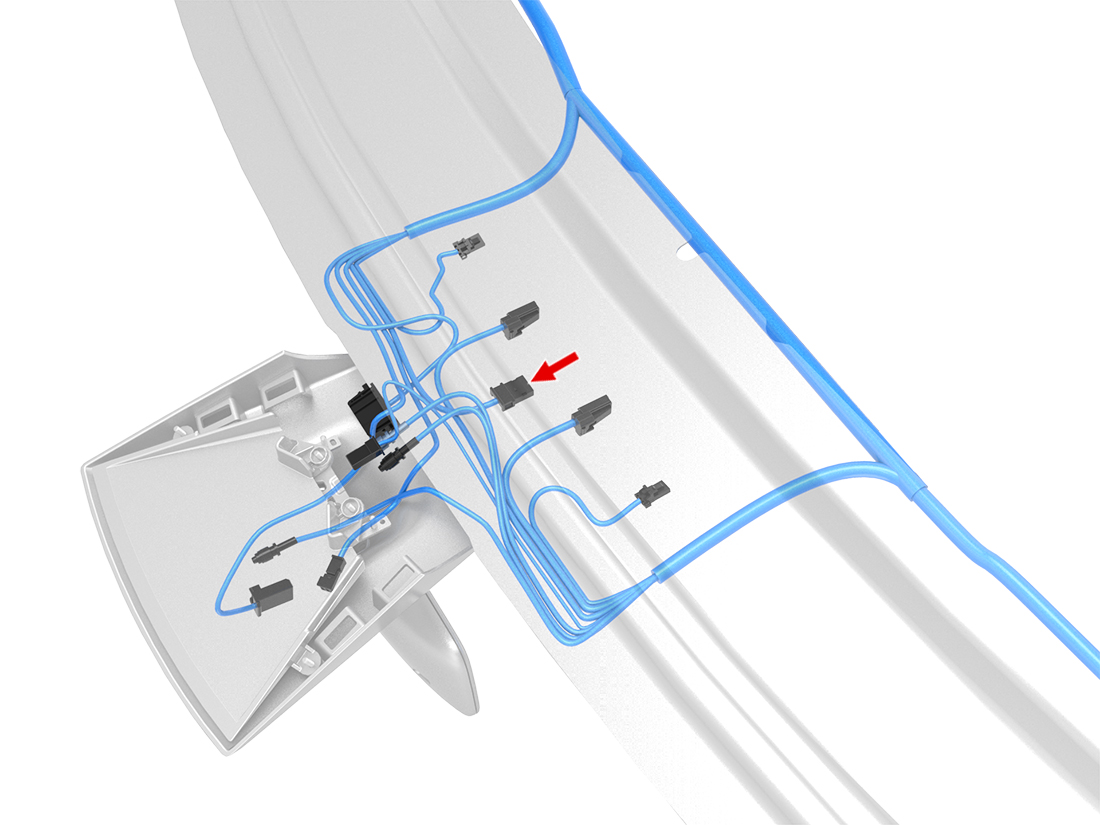

Location:

Connector Detail: AMP 1241634-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | X968F-16 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | GN/RD | 0.35 | SN | X968F-17 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | BK | 0.35 | SN | Z62-+GDC12-R | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | X968F-16 | AMP 5-928999-1 | | 1099455-00-B | |
| 2 | GN/RD | 0.35 | SN | X968F-17 | AMP 5-928999-1 | | 1099455-00-B | |
| 3 | BK | 0.35 | SN | Z62-+GDC12-R | AMP 5-928999-1 | | 1099455-00-B | |
