X402 - s-rhd-sop10

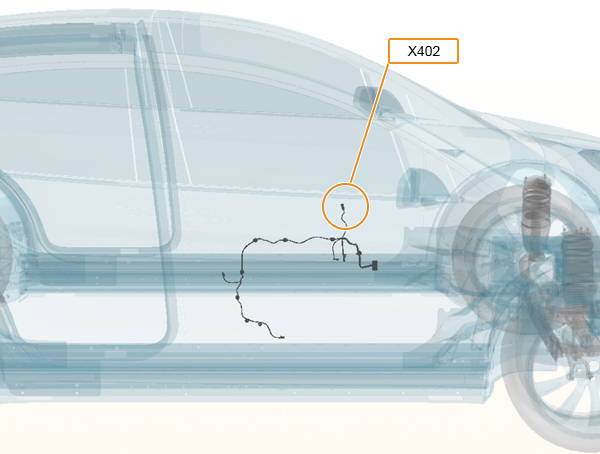

Location:
Location:
Connector Detail: AMP 1-968700-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6189-0133
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 1 | SN | X405-10 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 2 | RD/WH | 0.35 | SN | X404-8 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 3 | WH/BU | 0.35 | SN | X404-7 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 4 | RD/WH | 1 | SN | X405-9 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 5 | GY | 0.35 | SN | Z58-PSR06-L | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 6 | BN/WH | 0.35 | SN | Z57-PSR03-L | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X390-14 | AMP 1-928918-1 | 1108323-00-C | ||
| 2 | GY | 0.35 | SN | X390-5 | AMP 1-928918-1 | 1108323-00-C | ||
| 3 | BN | 0.35 | SN | X390-1 | AMP 1-928918-1 | 1108323-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.35 | SN | X390-14 | AMP 1-928918-1 | 1108323-00-C | ||
| 2 | GY | 0.35 | SN | X390-5 | AMP 1-928918-1 | 1108323-00-C | ||
| 3 | BN | 0.35 | SN | X390-1 | AMP 1-928918-1 | 1108323-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 1 | SN | X405-10 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 2 | RD/WH | 0.35 | SN | X404-8 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 3 | WH/BU | 0.35 | SN | X404-7 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 4 | RD/WH | 1 | SN | X405-9 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 5 | GY | 0.35 | SN | Z58-PSR06-L | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 6 | BN/WH | 0.35 | SN | Z57-PSR03-R | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B |
