X403 - s-rhd-sop10

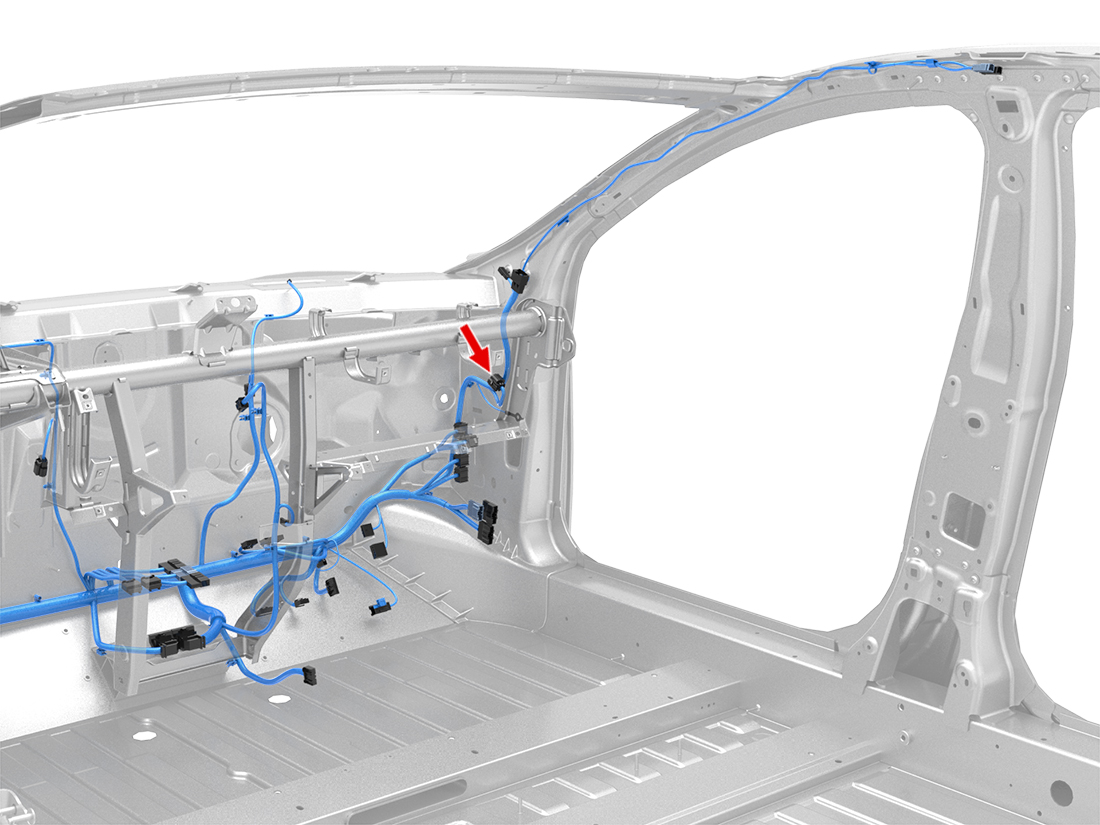

Location:

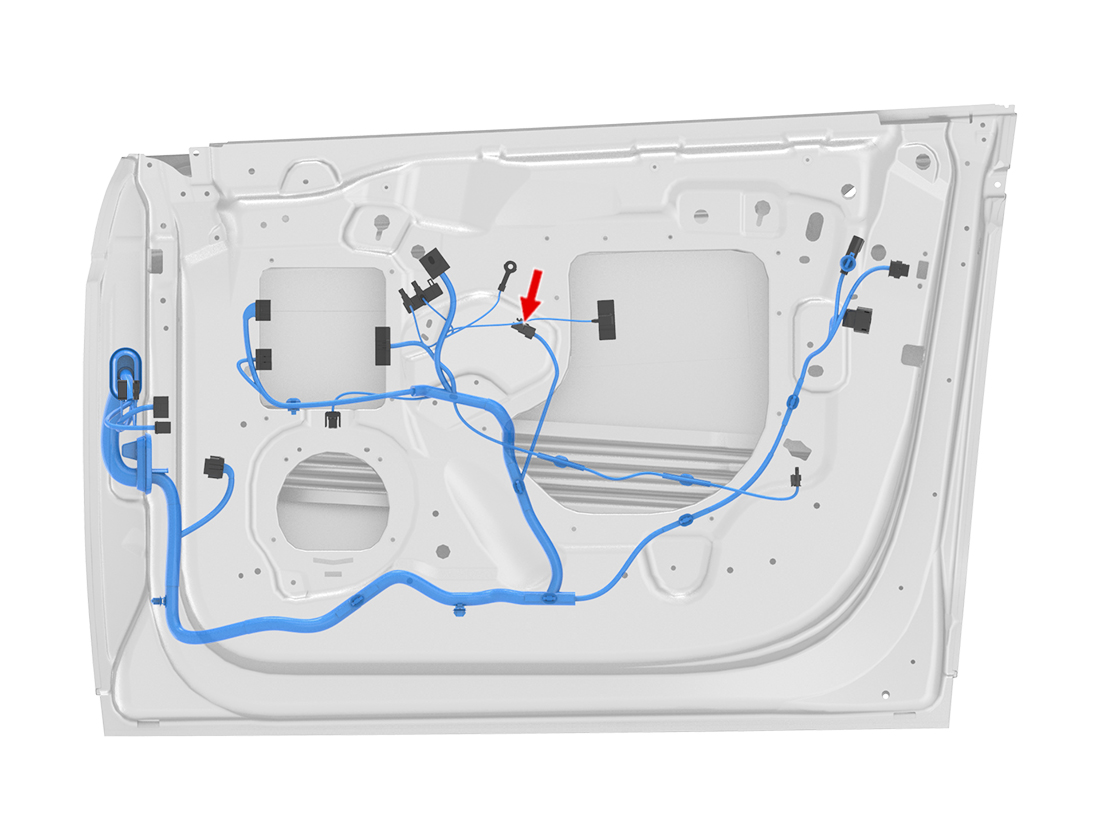

Location:
Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6189-0133
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | Z57-PSR03-R | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 2 | GY | 0.35 | SN | Z58-PSR06-R | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 3 | RD/VT | 1 | SN | X405-5 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 4 | GN/WH | 0.35 | SN | X404-9 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 5 | WH | 0.35 | SN | X404-10 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 6 | VT | 1 | SN | X405-6 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.5 | SN | X391-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | VT | 0.5 | SN | X391-15 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | BU | 1.5 | SN | X922F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | X922F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X391-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | BN | 0.5 | SN | X391-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.5 | SN | X391-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | VT | 0.5 | SN | X391-15 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | BU | 1.5 | SN | X922F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | X922F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X391-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | BN | 0.5 | SN | X391-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | Z57-PSR03-L | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 2 | GY | 0.35 | SN | Z58-PSR06-L | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 3 | RD/VT | 1 | SN | X405-5 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B | |
| 4 | GN/WH | 0.35 | SN | X404-9 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 5 | WH | 0.35 | SN | X404-10 | Yazaki 7116-1420 | Sumitomo 7165-0385 | 1099554-00-B | |
| 6 | VT | 1 | SN | X405-6 | Sumitomo 1500-0110 | Sumitomo 7165-0118 | 1099526-00-B |
