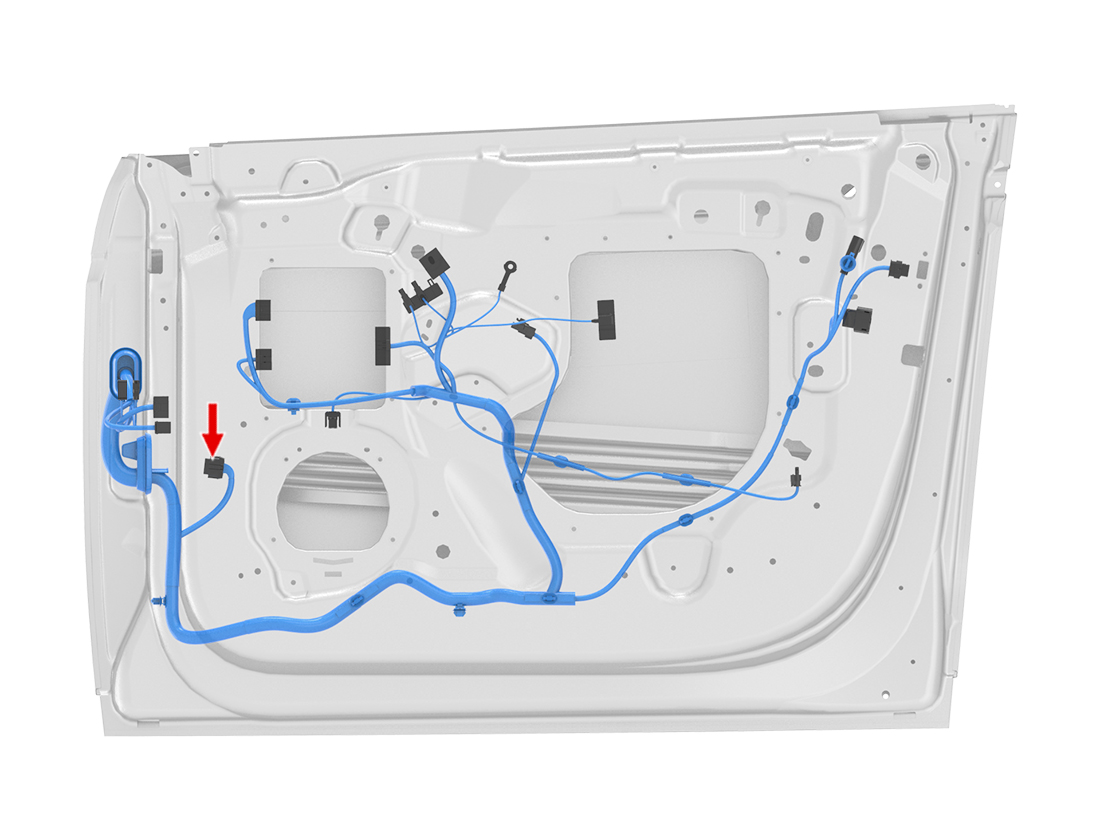

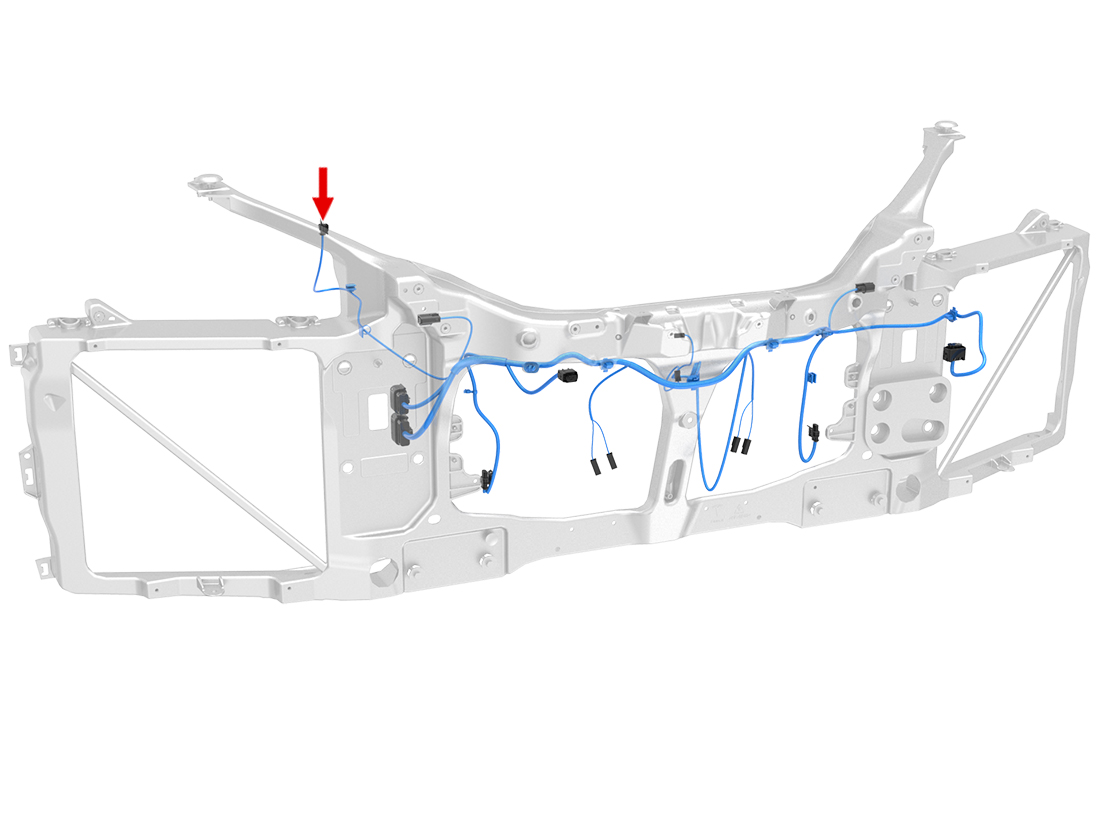

X415 - s-rhd-sop10
Location:
Location:
Connector Detail: AMP 1-1718643-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6185-5179
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.75 | SN | X965F-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | OG/BK | 0.75 | SN | X965F-8 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 1.5 | SN | X392-4 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | GN/WH | 0.35 | SN | X391-35 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 3 | BU/WH | 0.35 | SN | X391-11 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | RD | 0.5 | SN | X393-10 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 5 | BN | 1.5 | SN | X392-2 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 6 | GY | 0.35 | SN | X393-13 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 7 | VT/WH | 0.35 | SN | Z73-DCR119-L | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 8 | BU | 0.5 | SN | X393-9 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 1.5 | SN | X392-4 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | GN/WH | 0.35 | SN | X391-35 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 3 | BU/WH | 0.35 | SN | X391-11 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | RD | 0.5 | SN | X393-10 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 5 | BN | 1.5 | SN | X392-2 | Sumitomo 8100-4174 | Sumitomo 7165-0473 | 1099532-00-B | |
| 6 | GY | 0.35 | SN | X393-13 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 7 | VT/WH | 0.35 | SN | Z73-DCR119-L | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 8 | BU | 0.5 | SN | X393-9 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.75 | SN | X965F-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | OG/BK | 0.75 | SN | X965F-8 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C |
