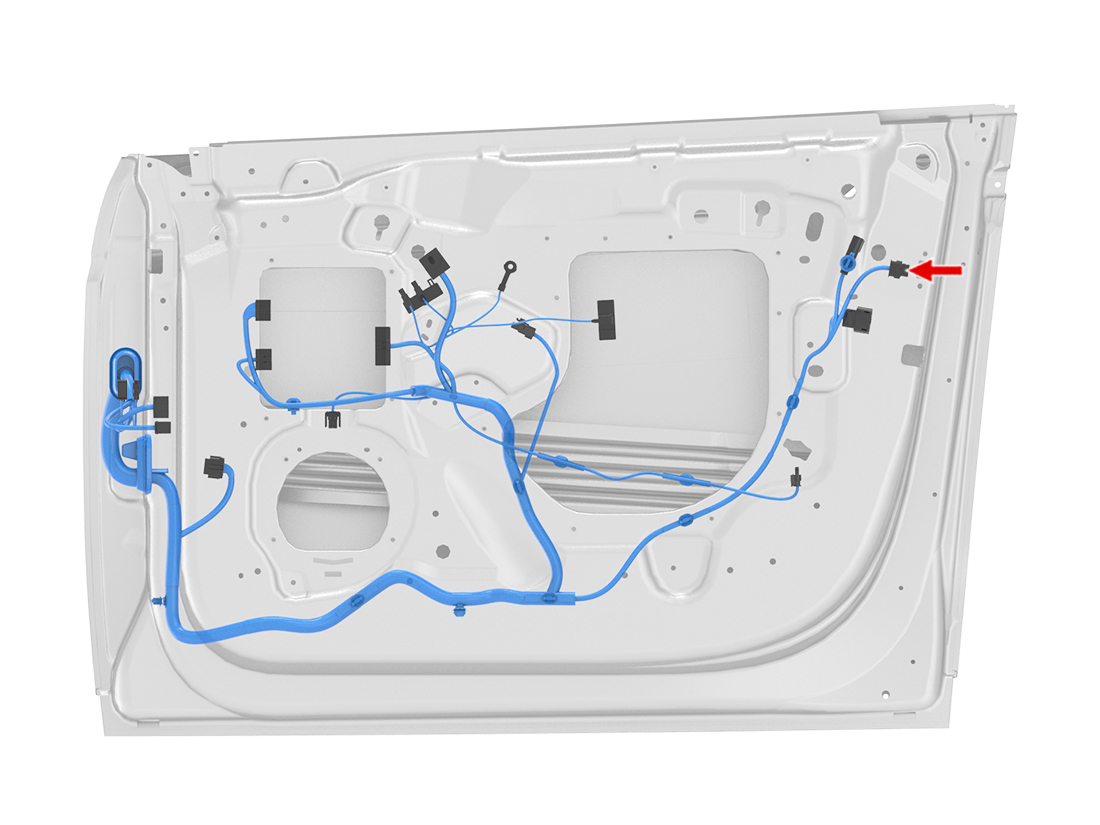

X416 - s-rhd-sop10
Location:
Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 805-122-541
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X425-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | RD/GY | 0.5 | SN | X425-4 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.35 | SN | X391-37 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | VT/WH | 0.35 | SN | Z73-DCR119-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | X393-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | GY | 0.35 | SN | X393-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY/WH | 0.35 | SN | X391-37 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | VT/WH | 0.35 | SN | Z73-DCR119-L | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK | 0.35 | SN | X393-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 4 | GY | 0.35 | SN | X393-2 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X425-3 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | RD/GY | 0.5 | SN | X425-4 | AMP 5-963715-1 | 1099458-00-A |
