X420 - s-rhd-sop10

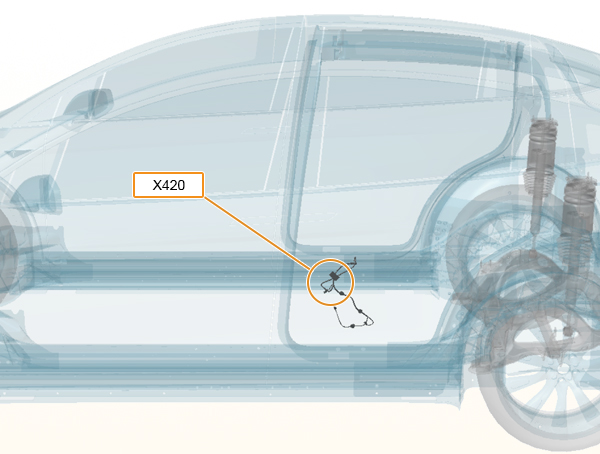

Location:

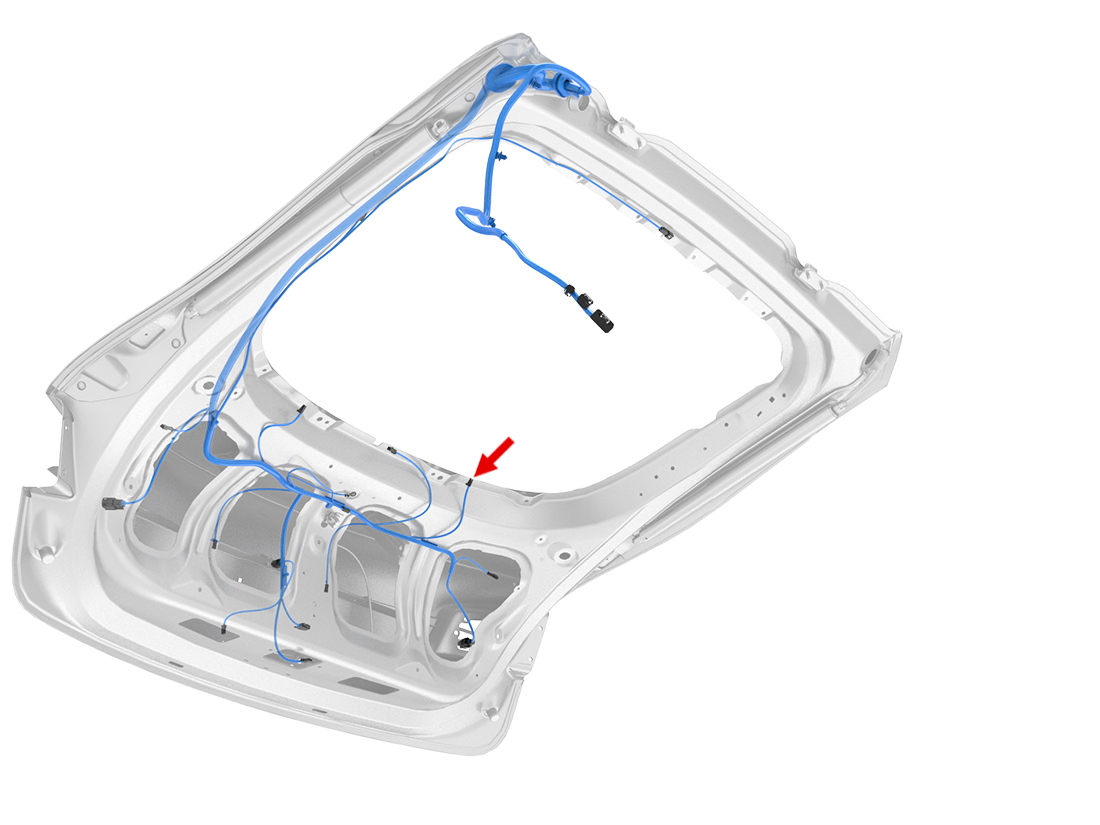

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4756
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X922F-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | VT | 0.75 | SN | X922F-2 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X432-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BN/WH | 0.35 | SN | X430-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | BN | 0.35 | SN | X448-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | GY | 0.35 | SN | X432-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | BK/WH | 0.35 | SN | X430-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BU | 0.35 | SN | X432-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | GY | 0.35 | SN | X585-2 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X432-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BN/WH | 0.35 | SN | X430-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | BN | 0.35 | SN | X448-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | GY | 0.35 | SN | X432-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | BK/WH | 0.35 | SN | X430-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | BU | 0.35 | SN | X432-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | GY | 0.35 | SN | X585-2 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X922F-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | VT | 0.75 | SN | X922F-2 | AMP 5-963715-1 | 1099458-00-A |
