X421 - s-rhd-sop10

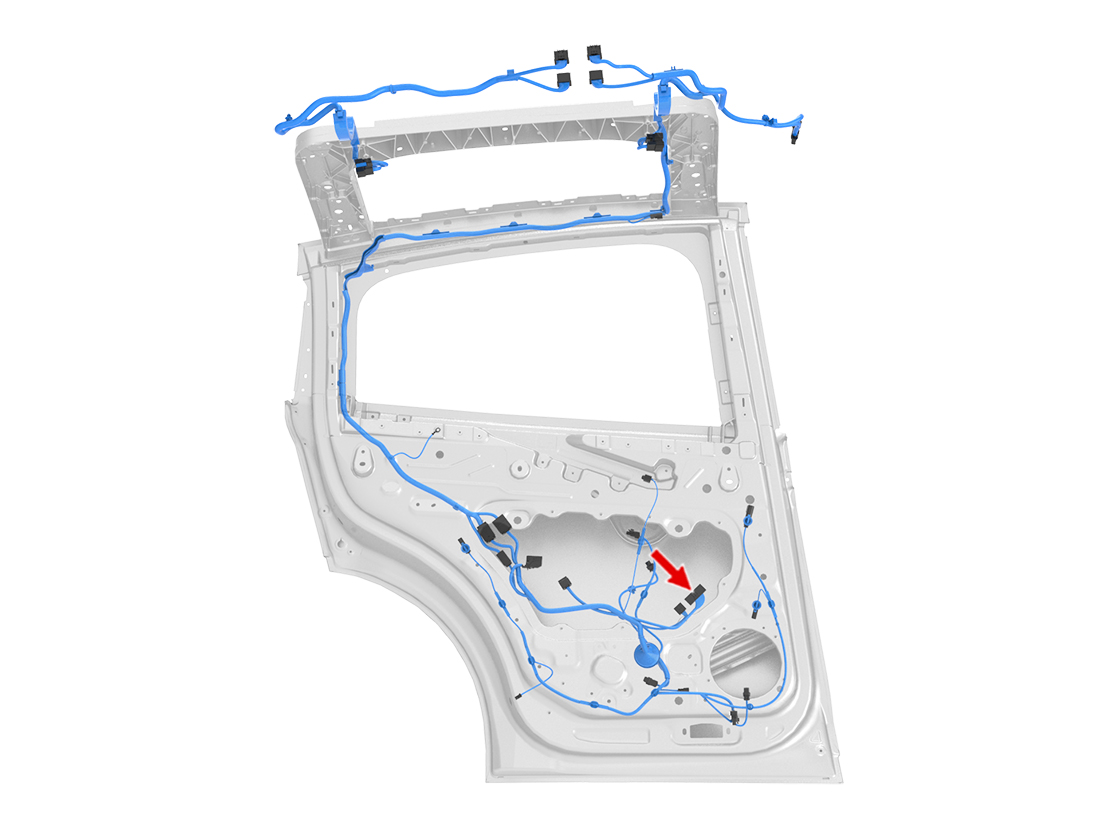

Location:

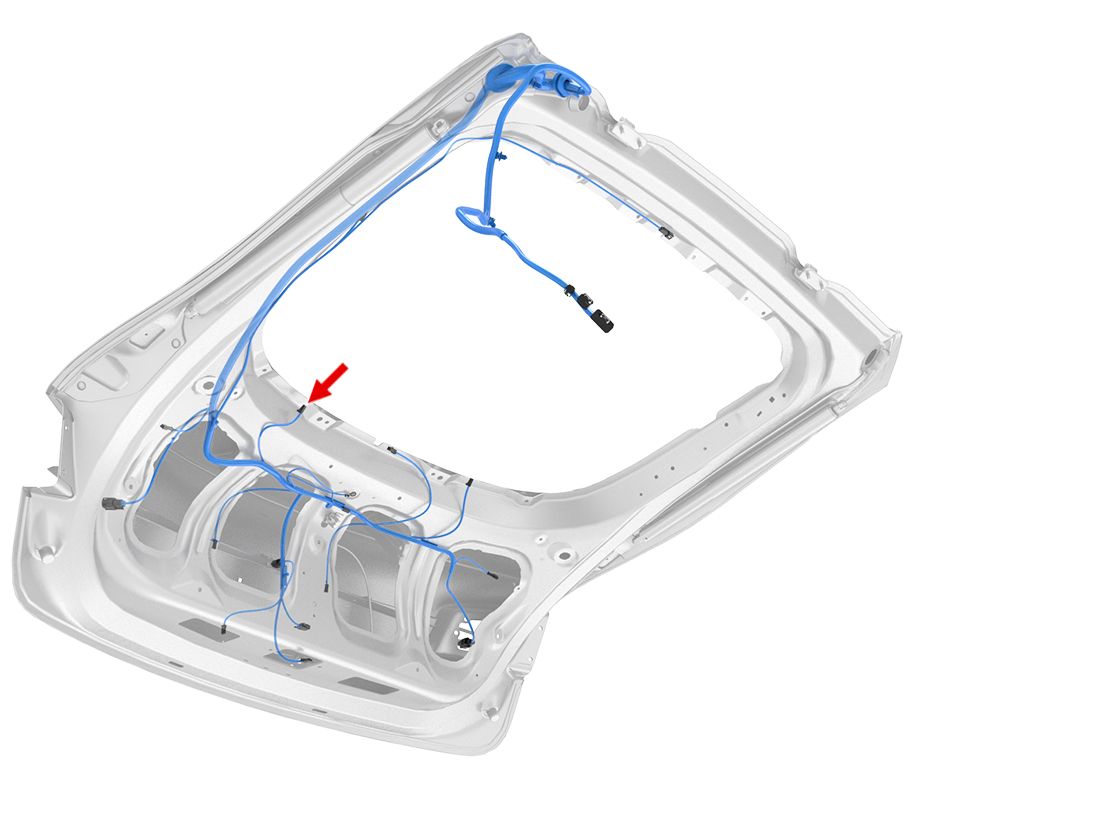

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-4831
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.75 | SN | X922F-11 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | X922F-12 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X433-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X434-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN | 0.35 | SN | X973F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN/WH | 0.35 | SN | X973F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.5 | SN | X616-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | VT/WH | 0.5 | SN | X616-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | BK | 0.35 | SN | X973F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 11 | BK | 0.35 | SN | X973F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | BK/WH | 0.35 | SN | X652-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | GY | 0.35 | SN | X972F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | GY/WH | 0.35 | SN | X972F-22 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | RD/WH | 0.5 | SN | X616-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.35 | SN | Z61-FDU05-X | Sumitomo 8100-3624 | 1099530-00-A | ||
| 19 | BU/WH | 0.35 | SN | X972F-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 23 | GY | 0.35 | SN | GND_JC_LRD_F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 24 | RD | 0.35 | SN | GND_JC_LRD_F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | GN/WH | 0.5 | SN | X425-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | BN | 0.35 | SN | X447-19 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | BK/GY | 0.35 | SN | X972F-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 28 | BN | 0.5 | SN | X433-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X433-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN/WH | 0.5 | SN | X425-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 32 | RD/BU | 0.35 | SN | X434-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN | 0.5 | SN | X425-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 39 | GY/WH | 0.5 | SN | X617-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 40 | RD/BK | 0.5 | SN | X617-1 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.5 | SN | X433-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | GN | 0.35 | SN | X434-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN | 0.35 | SN | X973F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN/WH | 0.35 | SN | X973F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.5 | SN | X616-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | VT/WH | 0.5 | SN | X616-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | BK | 0.35 | SN | X973F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 11 | BK | 0.35 | SN | X973F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | BK/WH | 0.35 | SN | X652-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | GY | 0.35 | SN | X972F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | GY/WH | 0.35 | SN | X972F-22 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | RD/WH | 0.5 | SN | X616-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | WH | 0.35 | SN | Z61-FDU05-X | Sumitomo 8100-3624 | 1099530-00-A | ||
| 19 | BU/WH | 0.35 | SN | X972F-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 23 | GY | 0.35 | SN | GND_JC_LRD_F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 24 | RD | 0.35 | SN | GND_JC_LRD_F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 25 | GN/WH | 0.5 | SN | X425-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | BN | 0.35 | SN | X447-19 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 27 | BK/GY | 0.35 | SN | X972F-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 28 | BN | 0.5 | SN | X433-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 29 | BU | 0.5 | SN | X433-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 30 | BN/WH | 0.5 | SN | X425-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 32 | RD/BU | 0.35 | SN | X434-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 35 | GN | 0.5 | SN | X425-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 39 | GY/WH | 0.5 | SN | X617-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 40 | RD/BK | 0.5 | SN | X617-1 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.75 | SN | X922F-11 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | X922F-12 | AMP 5-963715-1 | 1099458-00-A |
