X422 - s-rhd-sop10

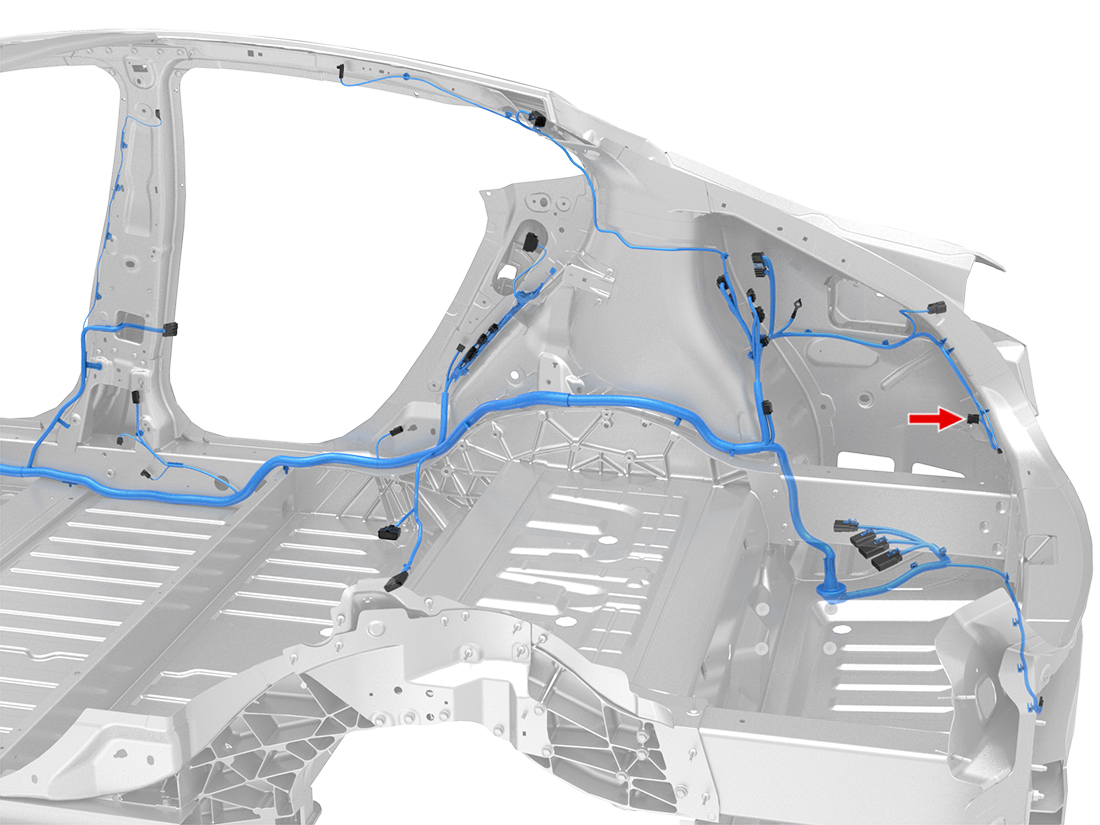

Location:
Connector Detail: Molex 34796-0401
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X970M-1 | Molex 33012-3021 | 1099519-00-A | ||
| 2 | VT | 1.5 | SN | X970M-8 | Molex 33012-3021 | 1099519-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X970M-1 | Molex 33012-3021 | 1099519-00-A | ||
| 2 | VT | 1.5 | SN | X970M-8 | Molex 33012-3021 | 1099519-00-A |
