X425 - s-rhd-sop10

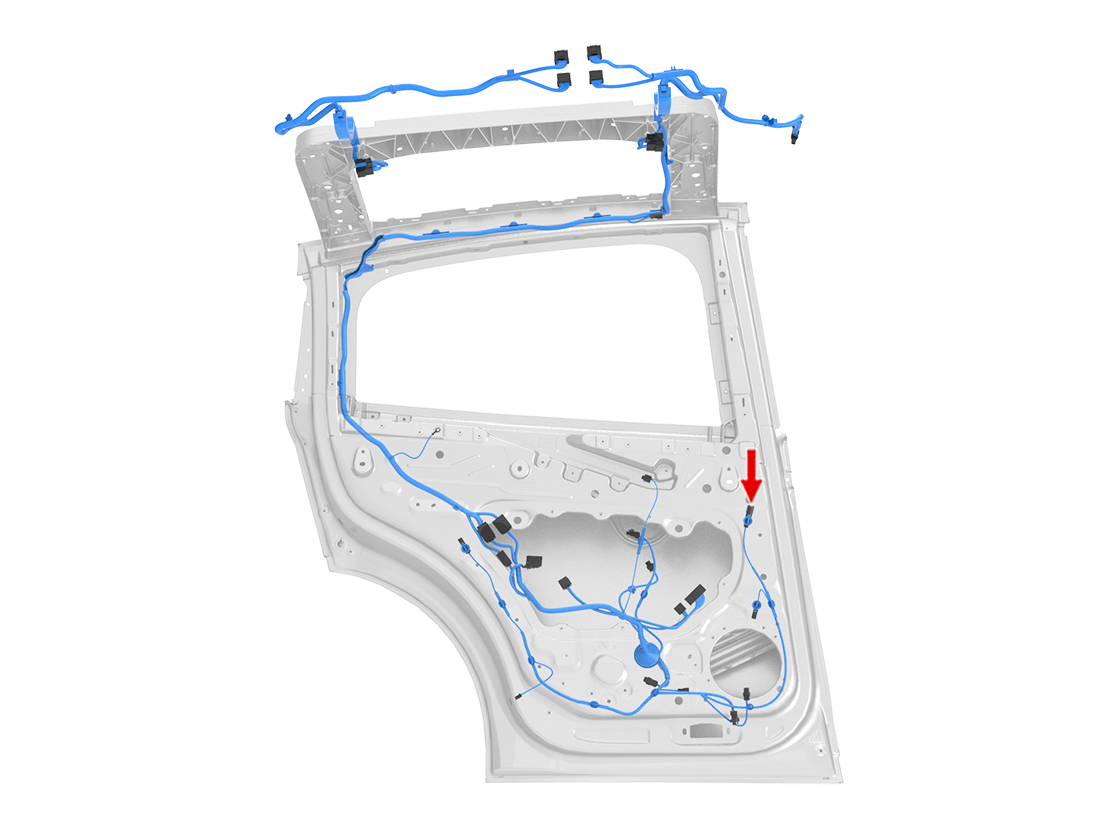

Location:
Location:
Connector Detail: Molex 31372-1000
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 33482-0401
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.5 | SN | X417-1 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 2 | OG/BK | 0.5 | SN | X417-2 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 3 | RD | 0.5 | SN | X416-1 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 4 | RD/GY | 0.5 | SN | X416-2 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 5 | BK/VT | 0.75 | SN | X149-2 | Molex 33012-3002 | 1099517-00-A | 1116485-00-A | |
| 6 | VT | 0.75 | SN | X149-12 | Molex 33012-3002 | 1099517-00-A | 1116485-00-A | |
| 7 | RD/GN | 1.5 | SN | X575-6 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | BK | 1.5 | SN | Z53-GDD16-R | AMP 1326030-3 | 1099433-00-A | ||
| 10 | BK | 1.5 | SN | Z53-GDD16-R | AMP 1326030-3 | 1099433-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.5 | SN | X421-30 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X421-35 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 3 | GN/WH | 0.5 | SN | X421-25 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.5 | SN | X421-30 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X421-35 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 3 | GN/WH | 0.5 | SN | X421-25 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.5 | SN | X417-1 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 2 | OG/BK | 0.5 | SN | X417-2 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 3 | RD | 0.5 | SN | X416-1 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 4 | RD/GY | 0.5 | SN | X416-2 | Molex 33012-3003 | 1099518-00-A | 1116485-00-A | |
| 5 | BK/VT | 0.75 | SN | X149-2 | Molex 33012-3002 | 1099517-00-A | 1116485-00-A | |
| 6 | VT | 0.75 | SN | X149-12 | Molex 33012-3002 | 1099517-00-A | 1116485-00-A | |
| 7 | RD/GN | 1.5 | SN | X575-6 | AMP 1326030-3 | 1099433-00-A | ||
| 9 | BK | 1.5 | SN | Z53-GDD16-R | AMP 1326030-3 | 1099433-00-A | ||
| 10 | BK | 1.5 | SN | Z53-GDD16-R | AMP 1326030-3 | 1099433-00-A |
