X429 - s-rhd-sop10

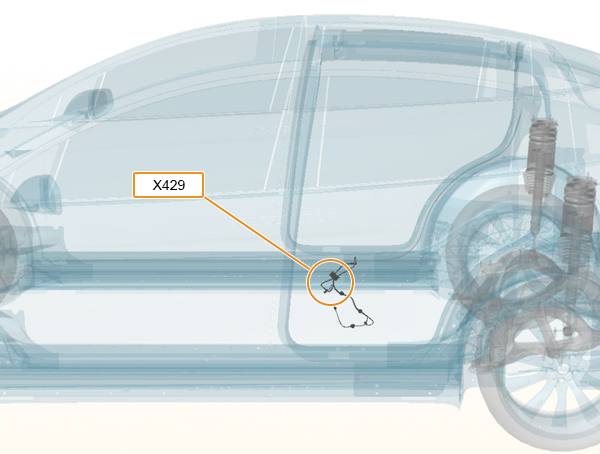

Location:
Location:
Connector Detail: Molex 34729-0201
Color: LightGray
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-6662
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X576-12 | Molex 34803-3211 | 1099524-00-A | ||
| 2 | BK/VT | 0.35 | SN | X948F-15 | Molex 34803-3211 | 1099524-00-A | ||
| 3 | YE/WH | 0.35 | SN | X949F-14 | Molex 34803-3211 | 1099524-00-A | ||
| 4 | OG | 0.35 | SN | X434-13 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | GN/WH | 0.35 | SN | X772-2 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | VT/WH | 0.35 | SN | X772-5 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | RD/WH | 0.35 | SN | X772-9 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | BN/WH | 0.35 | SN | X773-18 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | BU/WH | 0.5 | SN | X436-6 | Molex 34803-3212 | 1099525-00-C | ||
| 11 | RD/GY | 0.35 | SN | Z45-CLN03-R | Molex 34803-3211 | 1099524-00-A | ||
| 13 | BN/WH | 0.35 | SN | X576-1 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | BU | 0.35 | SN | X958F-5 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN | 0.35 | SN | X772-13 | Molex 34803-3211 | 1099524-00-A | ||
| 17 | VT | 0.35 | SN | X772-16 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | RD | 0.35 | SN | X772-20 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | BN | 0.35 | SN | X773-7 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | BU | 0.5 | SN | X436-14 | Molex 34803-3212 | 1099525-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X576-12 | Molex 34803-3211 | 1099524-00-A | ||
| 2 | BK/VT | 0.35 | SN | X948F-15 | Molex 34803-3211 | 1099524-00-A | ||
| 3 | YE/WH | 0.35 | SN | X949F-14 | Molex 34803-3211 | 1099524-00-A | ||
| 4 | OG | 0.35 | SN | X434-13 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | GN/WH | 0.35 | SN | X772-2 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | VT/WH | 0.35 | SN | X772-5 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | RD/WH | 0.35 | SN | X772-9 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | BN/WH | 0.35 | SN | X773-18 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | BU/WH | 0.5 | SN | X436-6 | Molex 34803-3212 | 1099525-00-C | ||
| 11 | RD/GY | 0.35 | SN | Z45-CLN03-R | Molex 34803-3211 | 1099524-00-A | ||
| 13 | BN/WH | 0.35 | SN | X576-1 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | BU | 0.35 | SN | X958F-5 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN | 0.35 | SN | X772-13 | Molex 34803-3211 | 1099524-00-A | ||
| 17 | VT | 0.35 | SN | X772-16 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | RD | 0.35 | SN | X772-20 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | BN | 0.35 | SN | X773-7 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | BU | 0.5 | SN | X436-14 | Molex 34803-3212 | 1099525-00-C |
