X430 - s-rhd-sop10

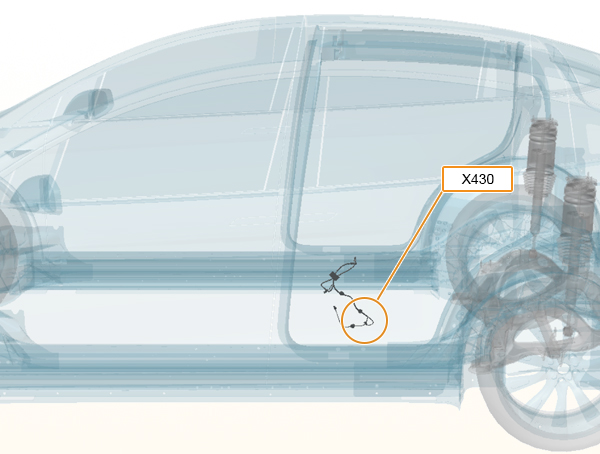

Location:
Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 34729-0202
Color: Brown
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | BU | 0.35 | SN | X576-15 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | BN/WH | 0.35 | SN | X968M-2 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | SI | 0.35 | SN | X968M-4 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | VT/WH | 0.35 | SN | X968M-12 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | GN/WH | 0.35 | SN | X440-15 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | SI | 0.35 | SN | X440-5 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | GY/WH | 0.35 | SN | X440-7 | Molex 34803-3211 | 1099524-00-A | ||
| 12 | RD/WH | 0.5 | SN | X576-4 | Molex 34803-3212 | 1099525-00-C | ||
| 13 | WH/BU | 0.35 | SN | X576-9 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | BK | 0.35 | SN | X968M-3 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | SI | 0.35 | SN | X968M-14 | Molex 34803-3211 | 1099524-00-A | ||
| 17 | VT | 0.35 | SN | X968M-13 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | GN | 0.35 | SN | X440-14 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | SI | 0.35 | SN | X440-13 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | GY | 0.35 | SN | X440-6 | Molex 34803-3211 | 1099524-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X420-3 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK/WH | 0.35 | SN | X420-16 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X420-3 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BK/WH | 0.35 | SN | X420-16 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | BU | 0.35 | SN | X576-15 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | VT/WH | 0.35 | SN | X968M-12 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | SI | 0.35 | SN | X968M-14 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | BN/WH | 0.35 | SN | X968M-2 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | GN/WH | 0.35 | SN | X440-15 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | SI | 0.35 | SN | X440-5 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | GY/WH | 0.35 | SN | X440-7 | Molex 34803-3211 | 1099524-00-A | ||
| 12 | RD/WH | 0.5 | SN | X576-4 | Molex 34803-3212 | 1099525-00-C | ||
| 13 | WH/BU | 0.35 | SN | X576-9 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | VT | 0.35 | SN | X968M-13 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | SI | 0.35 | SN | X968M-4 | Molex 34803-3211 | 1099524-00-A | ||
| 17 | BK | 0.35 | SN | X968M-3 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | GN | 0.35 | SN | X440-14 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | SI | 0.35 | SN | X440-13 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | GY | 0.35 | SN | X440-6 | Molex 34803-3211 | 1099524-00-A |
