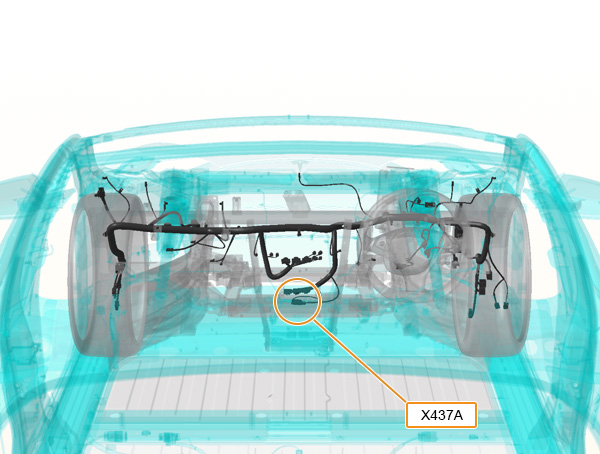

Location:
Connector Detail: Sumitomo 6098-5620
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | Z1-+PRM13_B-R | Sumitomo 8230-4925 | | 1099537-00-A | |
| 2 | VT/WH | 0.35 | SN | X772-6 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 3 | VT | 0.35 | SN | X772-17 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | OG/BK | 0.5 | SN | Z55-KWL01-R | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | BN/WH | 0.35 | SN | X773-20 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 10 | BN | 0.35 | SN | X773-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 13 | GN/WH | 0.35 | SN | X772-1 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 14 | GN | 0.35 | SN | X772-12 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 18 | RD/WH | 0.35 | SN | X772-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 19 | RD | 0.35 | SN | X772-19 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 20 | BK | 0.5 | SN | Z18-+GDD11-R | Sumitomo 8230-4925 | | 1099537-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | Z1-+PRM13_B-R | Sumitomo 8230-4925 | | 1099537-00-A | |
| 2 | VT/WH | 0.35 | SN | X772-6 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 3 | VT | 0.35 | SN | X772-17 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | OG/BK | 0.5 | SN | Z55-KWL01-R | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | BN/WH | 0.35 | SN | X773-20 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 10 | BN | 0.35 | SN | X773-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 13 | GN/WH | 0.35 | SN | X772-1 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 14 | GN | 0.35 | SN | X772-12 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 18 | RD/WH | 0.35 | SN | X772-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 19 | RD | 0.35 | SN | X772-19 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 20 | BK | 0.5 | SN | Z18-+GDD11-R | Sumitomo 8230-4925 | | 1099537-00-A | |
