X439 - s-rhd-sop10

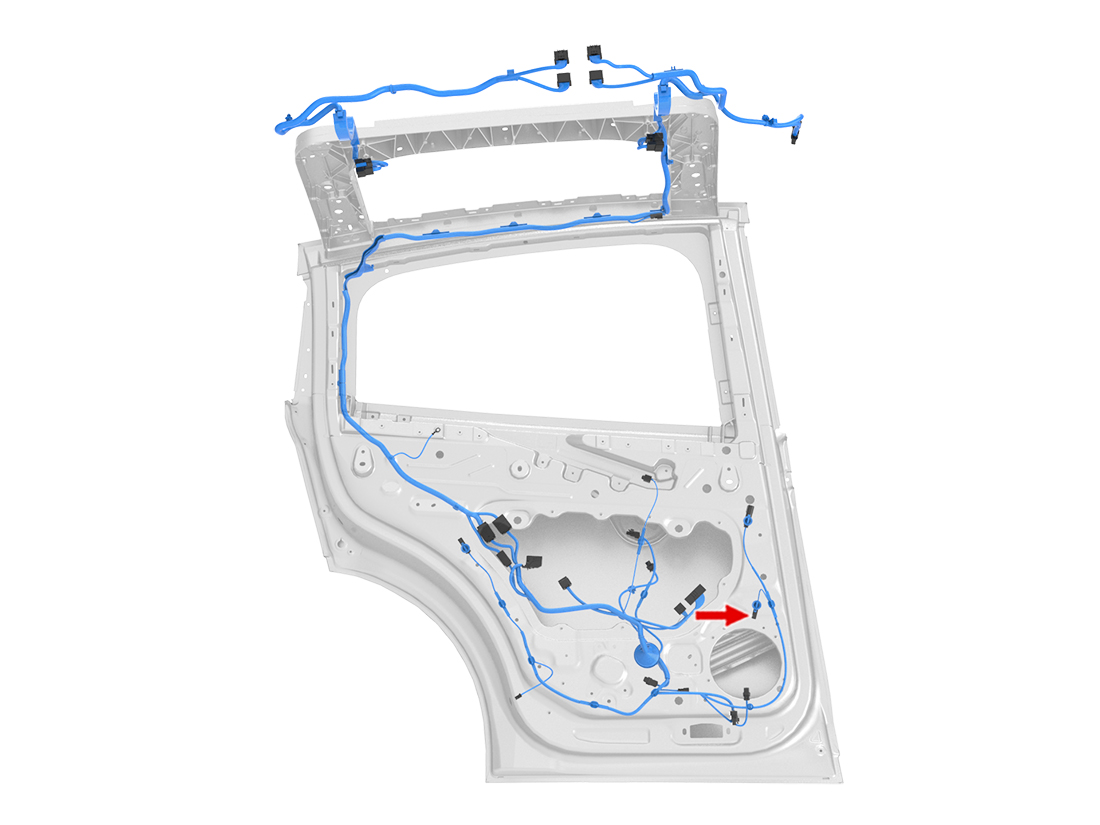

Location:
Connector Detail: Yazaki 7282-6075-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.5 | SN | X972F-11 | Yazaki 7114-4721-02 | Tesla MATSEAL | 1099552-00-A | |
| 2 | RD | 0.5 | SN | X972F-9 | Yazaki 7114-4721-02 | Tesla MATSEAL | 1099552-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.5 | SN | X972F-11 | Yazaki 7114-4721-02 | Tesla MATSEAL | 1099552-00-A | |
| 2 | RD | 0.5 | SN | X972F-9 | Yazaki 7114-4721-02 | Tesla MATSEAL | 1099552-00-A |
