X440 - s-rhd-sop10

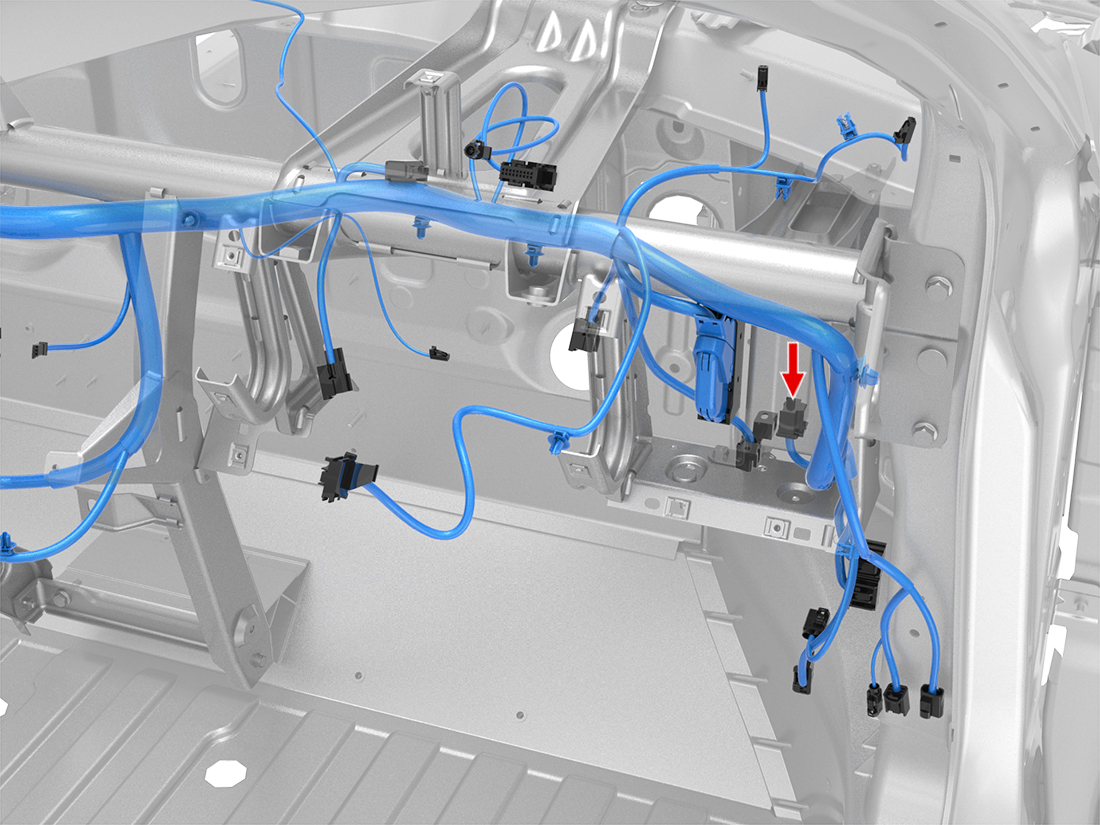

Location:

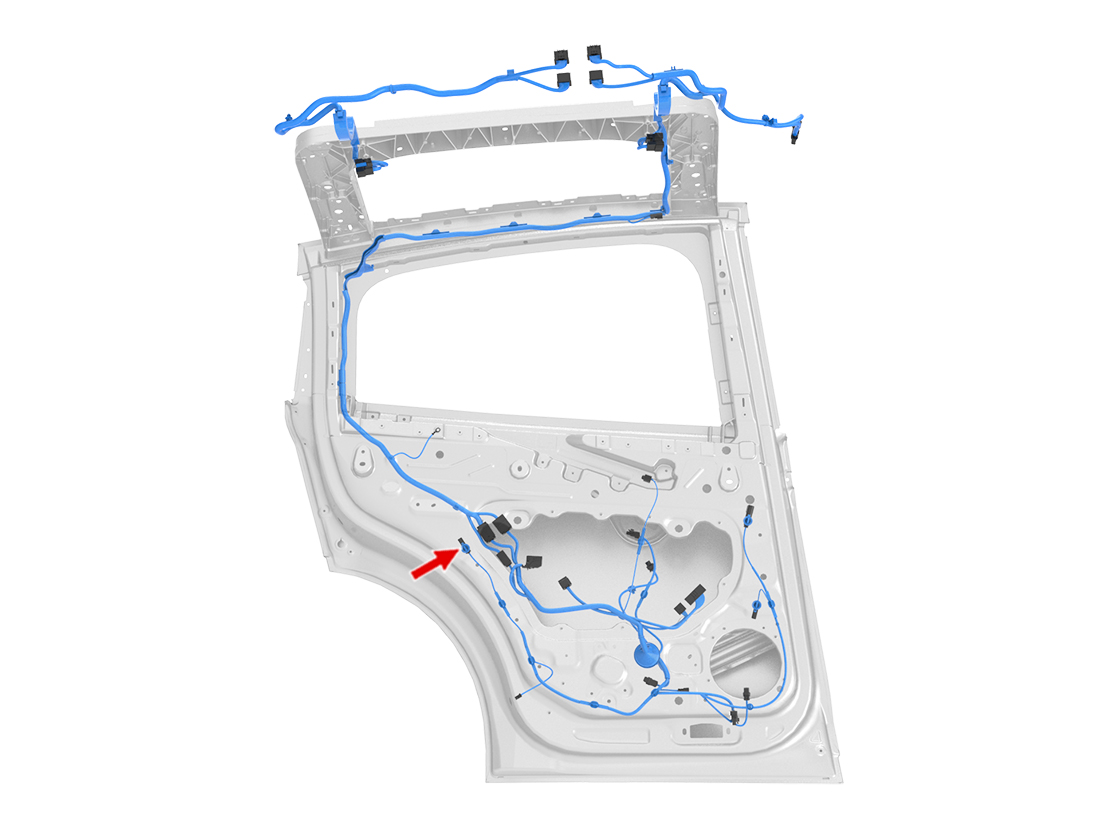

Location:
Location:
Connector Detail: Molex 34729-0160
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7282-6075-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X576-14 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | SI | 0.35 | SN | X430-9 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | GY | 0.35 | SN | X430-20 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | GY/WH | 0.35 | SN | X430-10 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | BK | 0.5 | SN | Z53-GDD16-L | Molex 34803-3212 | 1099525-00-C | ||
| 10 | BN/WH | 0.35 | SN | X773-21 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | BN | 0.35 | SN | X773-10 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | SI | 0.35 | SN | X430-19 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GN | 0.35 | SN | X430-18 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X430-8 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BK | 0.5 | SN | Z53-GDD16-L | Molex 34803-3212 | 1099525-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.5 | SN | X972F-10 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A | |
| 2 | RD | 0.5 | SN | X972F-8 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.5 | SN | X972F-10 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A | |
| 2 | RD | 0.5 | SN | X972F-8 | Yazaki 7114-4721-02 | Tesla MAT-140-220 | 1099552-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X576-14 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | SI | 0.35 | SN | X430-9 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | GY | 0.35 | SN | X430-20 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | GY/WH | 0.35 | SN | X430-10 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | BK | 0.5 | SN | Z53-GDD16-L | Molex 34803-3212 | 1099525-00-C | ||
| 10 | BN/WH | 0.35 | SN | X773-21 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | BN | 0.35 | SN | X773-10 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | SI | 0.35 | SN | X430-19 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GN | 0.35 | SN | X430-18 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X430-8 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BK | 0.5 | SN | Z53-GDD16-L | Molex 34803-3212 | 1099525-00-C |
