X441 - s-rhd-sop10

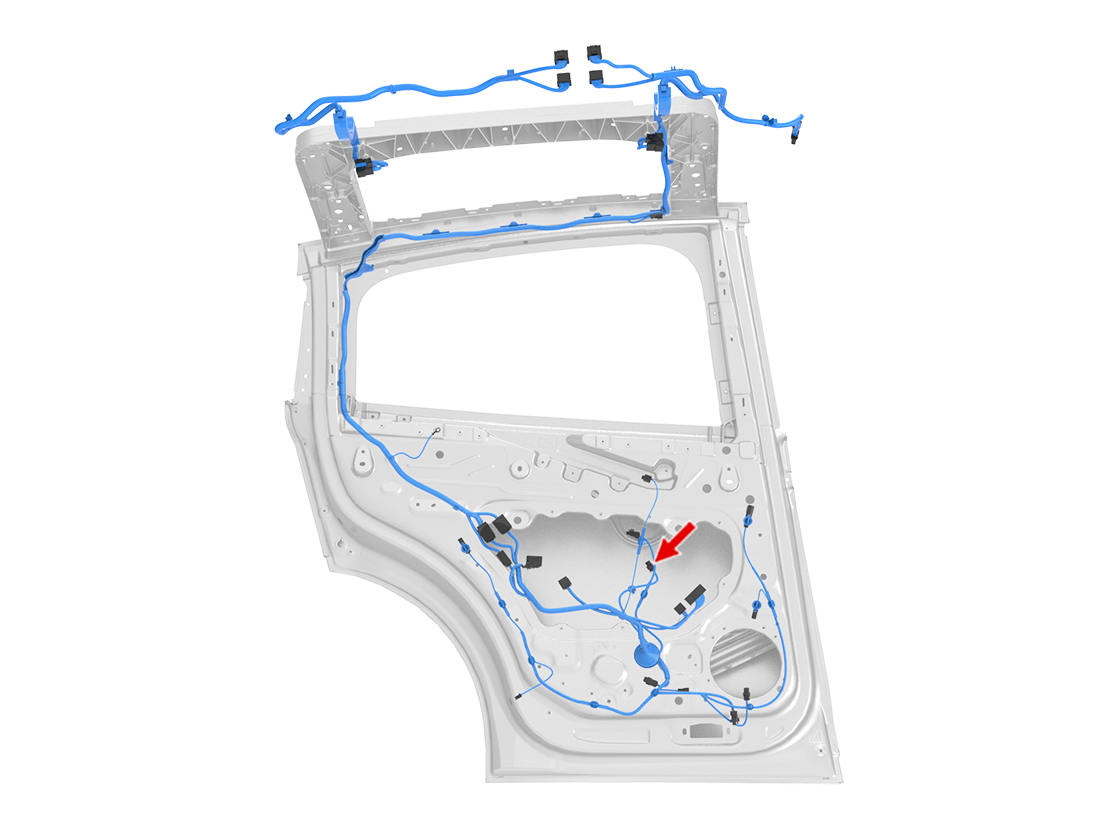

Location:

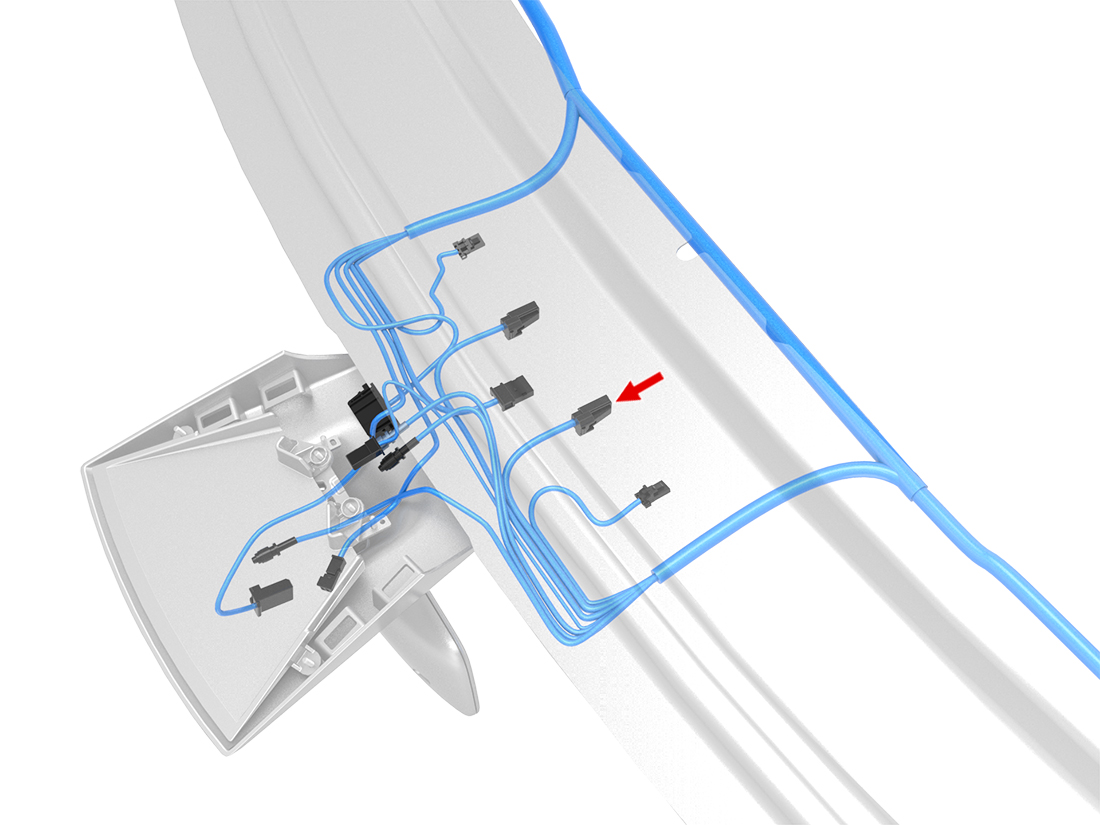

Location:
Connector Detail: Molex 31067-1011
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: Hirschmann 805-121-521
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | SI | 0.35 | SN | X968F-14 | AMP 1393367-1 | 1099438-00-A | ||
| 2 | VT/WH | 0.35 | SN | X968F-12 | AMP 1393367-1 | 1099438-00-A | ||
| 3 | VT | 0.35 | SN | X968F-13 | AMP 1393367-1 | 1099438-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X972F-5 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.35 | SN | Z61-FDU05-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/GY | 0.35 | SN | X972F-16 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU/WH | 0.35 | SN | X972F-5 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.35 | SN | Z61-FDU05-X | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/GY | 0.35 | SN | X972F-16 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | SI | 0.35 | SN | X968F-14 | AMP 1393367-1 | 1099438-00-A | ||
| 2 | VT/WH | 0.35 | SN | X968F-12 | AMP 1393367-1 | 1099438-00-A | ||
| 3 | VT | 0.35 | SN | X968F-13 | AMP 1393367-1 | 1099438-00-A |
