X442 - s-rhd-sop10

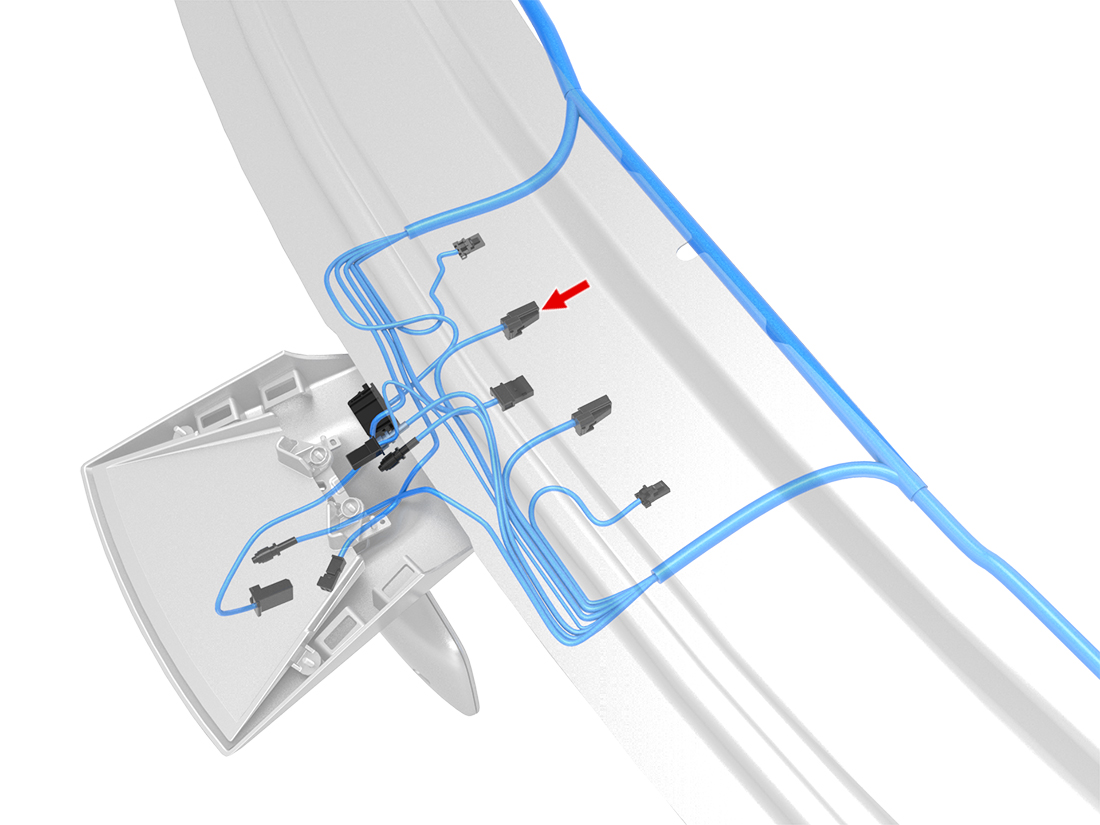

Location:
Connector Detail: Molex 31067-1011
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | SI | 0.35 | SN | X968F-4 | AMP 1393367-1 | 1099438-00-A | ||
| 2 | BN/WH | 0.35 | SN | X968F-2 | AMP 1393367-1 | 1099438-00-A | ||
| 3 | BK | 0.35 | SN | X968F-3 | AMP 1393367-1 | 1099438-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | SI | 0.35 | SN | X968F-4 | AMP 1393367-1 | 1099438-00-A | ||
| 2 | BN/WH | 0.35 | SN | X968F-2 | AMP 1393367-1 | 1099438-00-A | ||
| 3 | BK | 0.35 | SN | X968F-3 | AMP 1393367-1 | 1099438-00-A |
