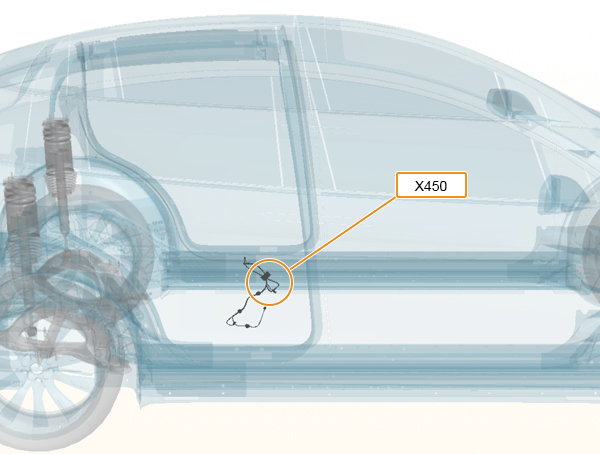

Location:
Connector Detail: Sumitomo 6098-4756
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X462-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | BN/WH | 0.35 | SN | X460-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X462-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BK/WH | 0.35 | SN | X460-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | BU | 0.35 | SN | X462-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | GY | 0.35 | SN | X590-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X462-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | BN/WH | 0.35 | SN | X460-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X462-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BK/WH | 0.35 | SN | X460-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | BU | 0.35 | SN | X462-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | GY | 0.35 | SN | X590-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
