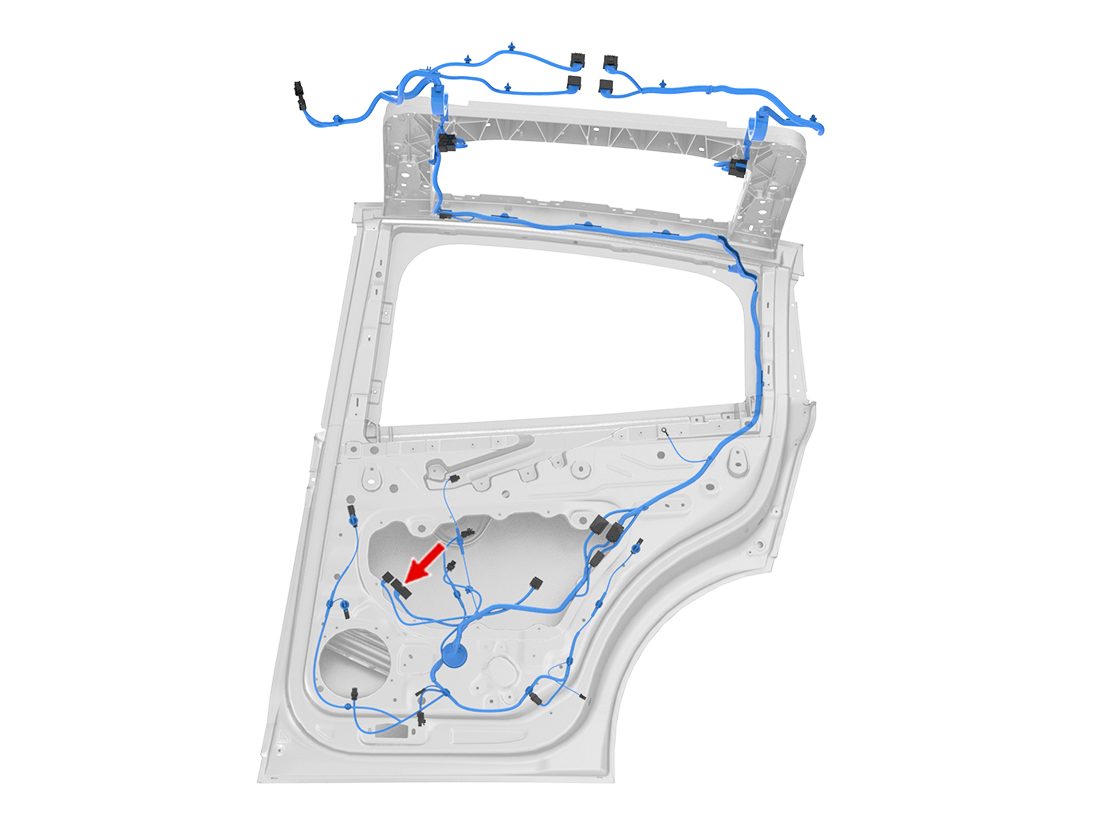

Location:
Connector Detail: Sumitomo 6098-4831
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.5 | SN | X463-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.5 | SN | X464-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN | 0.35 | SN | X975F-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X975F-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | GN | 0.35 | SN | X628-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT/WH | 0.35 | SN | X628-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BK | 0.35 | SN | X975F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | BK | 0.35 | SN | X975F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X974F-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | GY/WH | 0.35 | SN | X974F-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD/WH | 0.5 | SN | X628-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X974F-16 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | BU/WH | 0.35 | SN | - | Sumitomo 8100-3624 | | 1099530-00-A | |
| 23 | BU | 0.35 | SN | GND_JC_RRD_F-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 24 | RD | 0.35 | SN | GND_JC_RRD_F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 25 | GN/WH | 0.5 | SN | X455-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | BN | 0.35 | SN | X975F-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 27 | BK/GY | 0.35 | SN | - | Sumitomo 8100-3624 | | 1099530-00-A | |
| 28 | BN | 0.5 | SN | X463-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 29 | BU | 0.5 | SN | X463-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 30 | BN/WH | 0.5 | SN | X455-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 32 | RD/BU | 0.5 | SN | X464-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 35 | GN | 0.5 | SN | X455-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 39 | GY/WH | 0.5 | SN | X629-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 40 | RD/BK | 0.5 | SN | X629-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.5 | SN | X463-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.5 | SN | X464-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN | 0.35 | SN | X975F-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X975F-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | GN | 0.35 | SN | X628-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT/WH | 0.35 | SN | X628-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BK | 0.35 | SN | X975F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | BK | 0.35 | SN | X975F-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X974F-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | GY/WH | 0.35 | SN | X974F-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD/WH | 0.5 | SN | X628-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X974F-16 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | BU/WH | 0.35 | SN | - | Sumitomo 8100-3624 | | 1099530-00-A | |
| 23 | BU | 0.35 | SN | GND_JC_RRD_F-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 24 | RD | 0.35 | SN | GND_JC_RRD_F-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 25 | GN/WH | 0.5 | SN | X455-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | BN | 0.35 | SN | X975F-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 27 | BK/GY | 0.35 | SN | - | Sumitomo 8100-3624 | | 1099530-00-A | |
| 28 | BN | 0.5 | SN | X463-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 29 | BU | 0.5 | SN | X463-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 30 | BN/WH | 0.5 | SN | X455-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 32 | RD/BU | 0.5 | SN | X464-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 35 | GN | 0.5 | SN | X455-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 39 | GY/WH | 0.5 | SN | X629-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 40 | RD/BK | 0.5 | SN | X629-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
