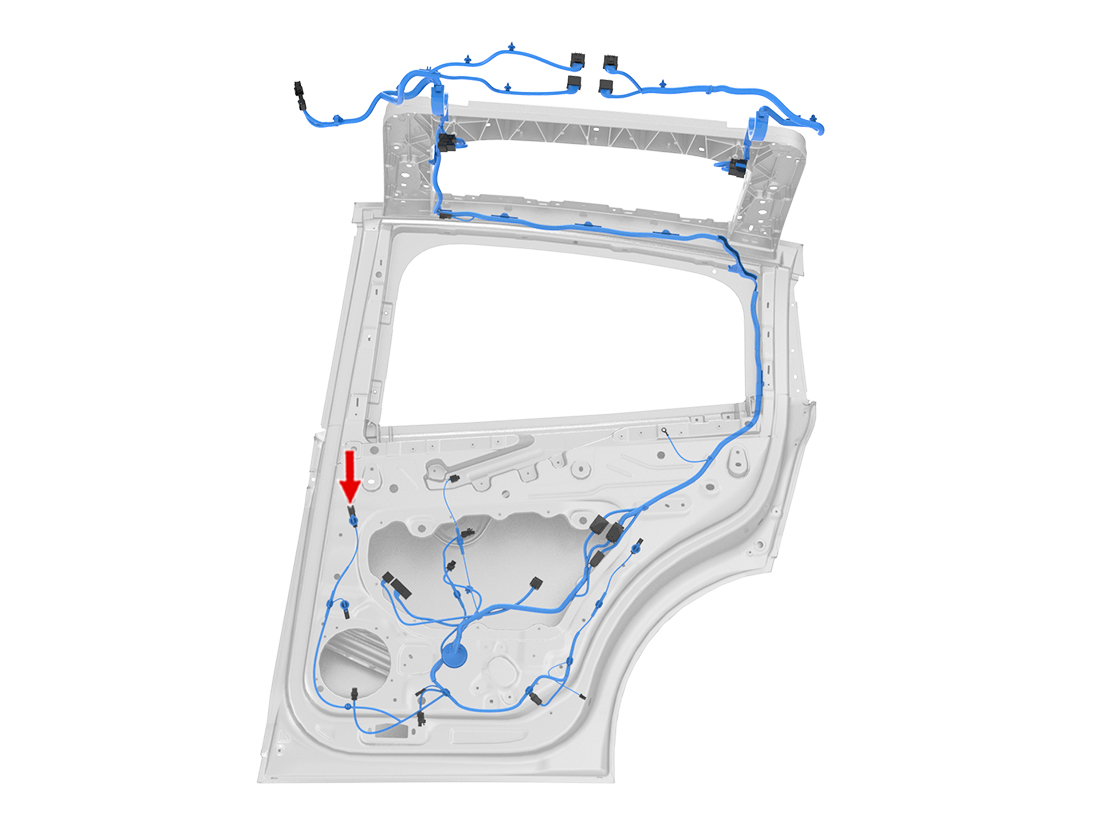

Location:
Connector Detail: Molex 33482-0401
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.5 | SN | X451-30 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X451-35 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 3 | GN/WH | 0.5 | SN | X451-25 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.5 | SN | X451-30 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 2 | GN | 0.5 | SN | X451-35 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
| 3 | GN/WH | 0.5 | SN | X451-25 | Molex 33000-0004 | Tesla MAT-140-250 | 1099511-00-A | 1116485-00-A |
