X462 - s-rhd-sop10

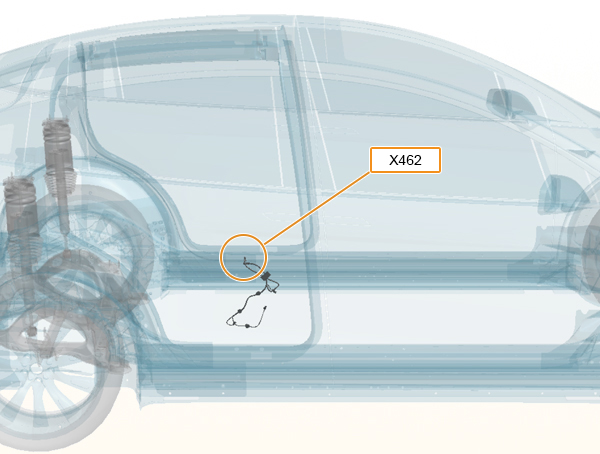

Location:
Connector Detail: AMP 2-929170-1
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | GY | 0.35 | SN | X450-13 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | VT/WH | 0.35 | SN | X450-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X450-22 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | GY | 0.35 | SN | X450-13 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | VT/WH | 0.35 | SN | X450-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | BU | 0.35 | SN | X450-22 | AMP 5-928999-1 | 1099455-00-B |
