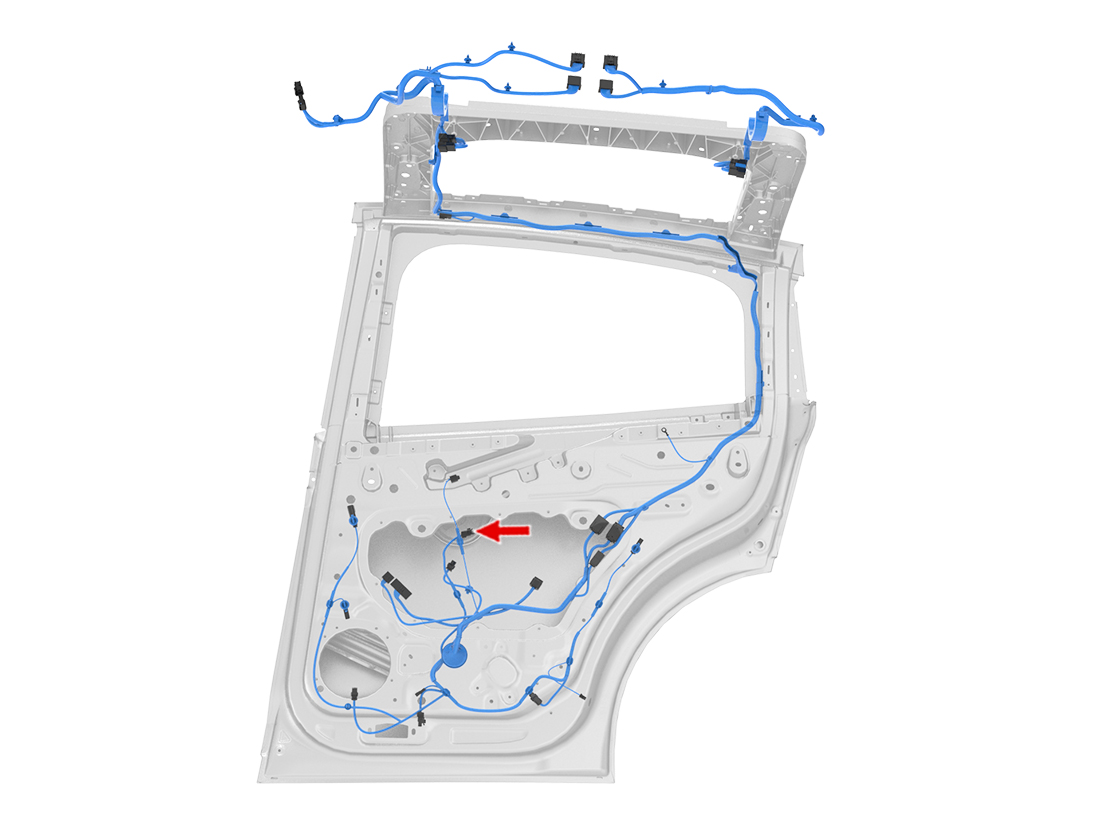

Location:
Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.5 | SN | X451-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 2 | SN | X975F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK/WH | 2 | SN | X975F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X451-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | BN | 0.5 | SN | X451-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.5 | SN | X451-29 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 2 | SN | X975F-1 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 4 | BK/WH | 2 | SN | X975F-11 | FCI 211CC3S2120 | Tesla MAT-160-345 | 1099492-00-A | |
| 5 | GN | 0.5 | SN | X451-1 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 6 | BN | 0.5 | SN | X451-28 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
