X464 - s-rhd-sop10

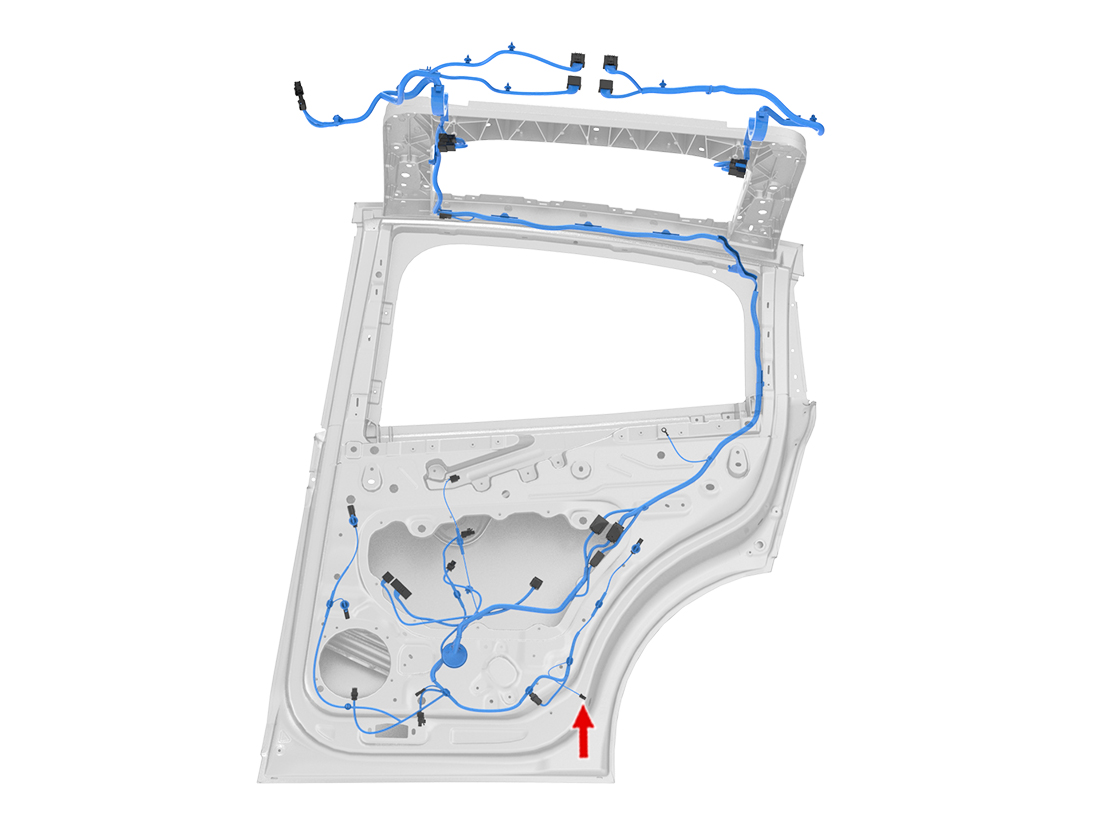

Location:
Connector Detail: JST 03R-JWPF-VSLE-S
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | X451-32 | |||||
| 2 | BK | 0.5 | SN | GND_JC_RRD_F-8 | JST SWPR-001T-P025 | Tesla MAT-120-170 | ||
| 3 | GN | 0.5 | SN | X451-3 | JST SWPR-001T-P025 | Tesla MAT-120-170 |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BU | 0.5 | X451-32 | |||||
| 2 | BK | 0.5 | SN | GND_JC_RRD_F-8 | JST SWPR-001T-P025 | Tesla MAT-120-170 | ||
| 3 | GN | 0.5 | SN | X451-3 | JST SWPR-001T-P025 | Tesla MAT-120-170 |
