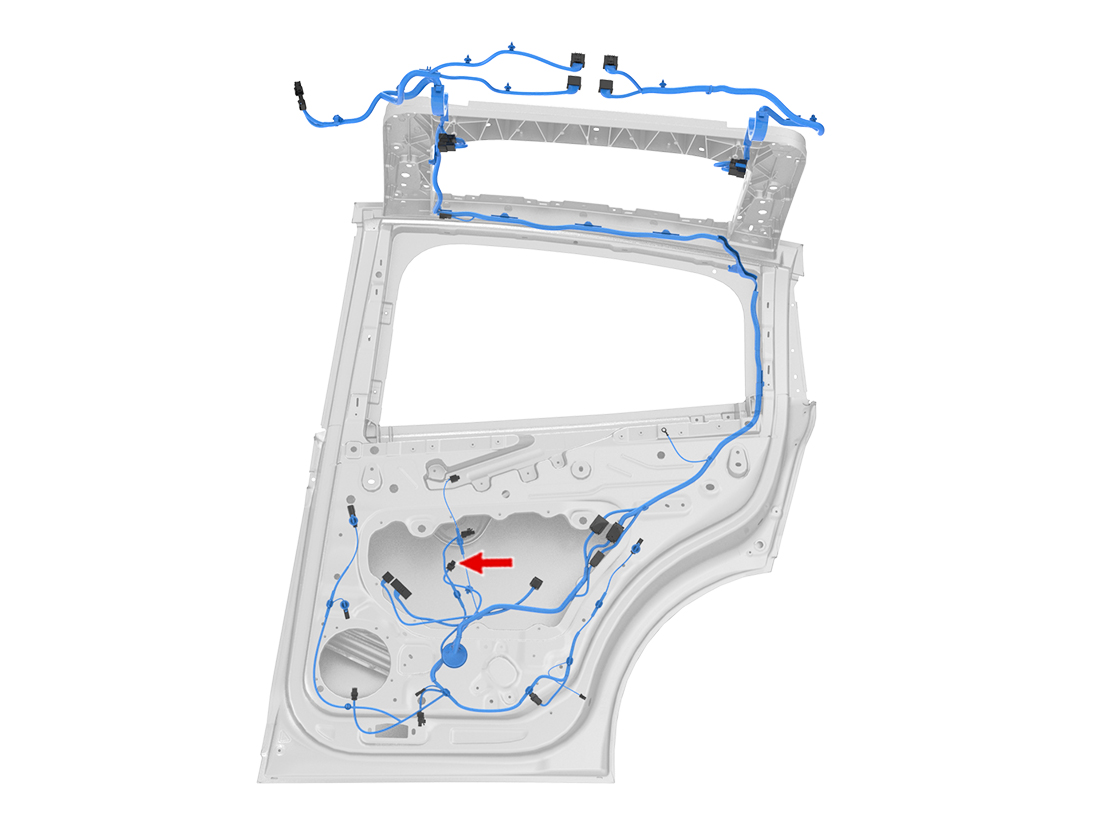

Location:
Connector Detail: Hirschmann 805-121-521
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.35 | SN | X975F-5 | AMP 7-1452665-1 | | 1099461-00-C | |
| 2 | VT | 0.35 | SN | X974F-17 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/GY | 0.35 | SN | X975F-4 | AMP 7-1452665-1 | | 1099461-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.35 | SN | X975F-5 | AMP 7-1452665-1 | | 1099461-00-C | |
| 2 | VT | 0.35 | SN | X974F-17 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/GY | 0.35 | SN | X975F-4 | AMP 7-1452665-1 | | 1099461-00-C | |
